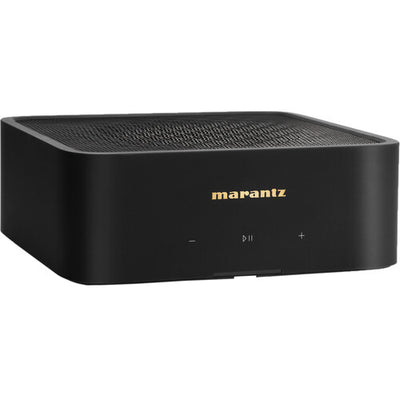

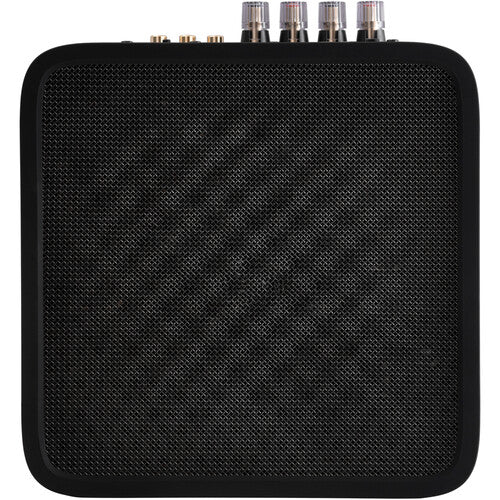

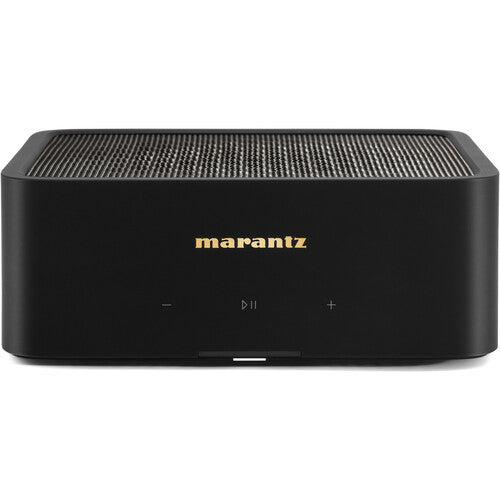

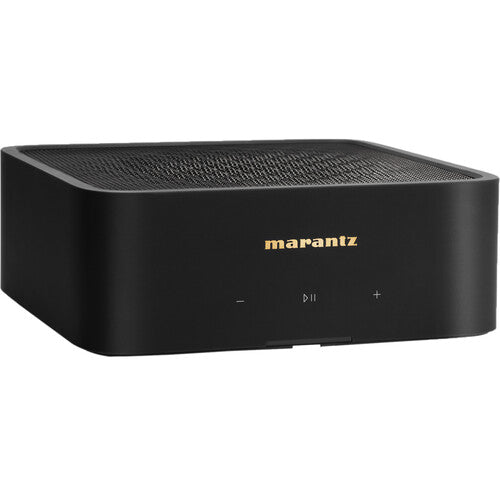

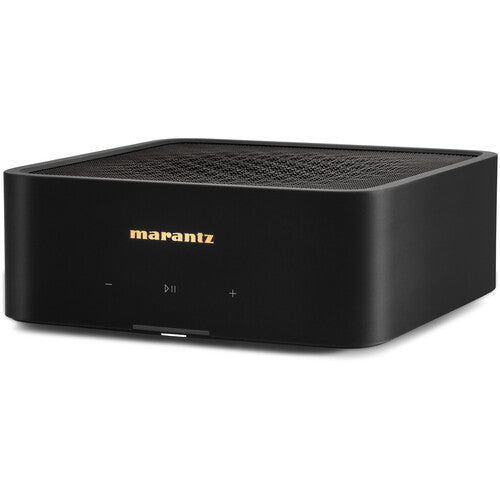

Marantz Model M1 Wireless Streaming Amplifier with HEOS
Item #: Marantz-Model-M1
$1,000.00
Leaves Warehouse within 2-3 Weeks
Free Shipping
Model M1 Wireless Streaming Amplifier
MODEL M1 is a wireless streaming amplifier engineered with performance and versatility in mind. Enjoy your favorite music or TV shows with seamless connectivity from one elegant, compact device.
The New Shape of High-Performance Sound
Born from decades of Marantz heritage and engineering expertise, this new generation of wireless streaming amplifier transforms the way you listen to music and watch TV throughout your home.
"This amplifier’s superb sonic performance stays true to Marantz’s heritage."
-EISA
Model M1
 |  |  |
 | True Marantz PowerMODEL M1’s 100W per channel of high-quality, low-distortion amplification delivers pristine sound anywhere, while a subwoofer output delivers room-filling scale in larger spaces. |
High Resolution Digital DirectHowever you choose to stream your high-resolution music, MODEL M1 has you covered, with support for HEOS, AirPlay2, Bluetooth, Spotify Connect, and more. |  |
 | Marantz Multi-RoomThe expansive feature set yet diminutive size of M1 makes it the ideal partner for multi-room listening. |
Marantz Musical Digital FilteringMMDF is a unique and sophisticated digital filtering technology that reveals the natural detail and tonality in sound. |  |
 | TV Sound: Marantz Quality, Soundbar SimplicityUnveil superb sound from movies and TV programs with MODEL M1 using HDMI eARC and onboard Dolby Digital+ processing. |
For the Soundtrack of Your Life
HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.
Search for Songs Across PlatformsHEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD. |
Your Whole Home in One PlaceHEOS-enabled devices allow you to control multiple rooms, all with the HEOS app. |
Search for Songs Across PlatformsUse your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favorites. |
Model M4
An innovative and intelligent take on traditional distribution amplifier designs. MODEL M4 delivers superb Marantz sound throughout your home and gives you control over four zones with four independent HEOS streams.
Shop Now
Key Technologies
TIDAL
DEEZER
HDMI EARC & ARC
AMAZON MUSIC
BLUETOOTH
HEOS BUILT-IN
APPLE AIRPLAY
SPOTIFY
IHEART RADIO
PANDORA
Sirius XM
DSD Support
Model M1 Wireless Streaming Amplifier
The Most Musical Sound
2.1 Ch. 100W per channel Wireless Streaming Amplifier with HEOS® Built-in
2.1 channel output allows for loudspeaker and subwoofer connection
100W per channel high power and crystal clarity
Switching, digital end-to-end amplifier topology
Enhanced performance with Marantz Musical Digital Filtering (MMDF)
Effortless streaming with HEOS® Built-in, WiFi, AirPlay 2, Spotify Connect
Toslink optical audio and HDMI eARC digital audio inputs
Digital decoding with Dolby Digital+
Sound Master tuned, designed, and built by Shirakawa Audio Works in Japan
Small footprint, rack-mountable, high-end materials, and refined Marantz industrial design
1 pair RCA analog audio inputs with gold-plated brass terminals
A reference AV receiver, CINEMA 30 is the foundation of superior home theater systems.
Details and Specifications
Amplifier |
|
|---|---|
Power Amplifier Rated output & THD (8 ohm) |
100 W + 100 W (8 Ω, THD 0.05%) |
Power Amplifier Rated output & THD (4 ohm) |
125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.05%) |
Frequency Response |
20 Hz to 20 kHz : ±1 dB |
Connected Loudspeaker Impedance |
4 – 16 Ω/ohms |

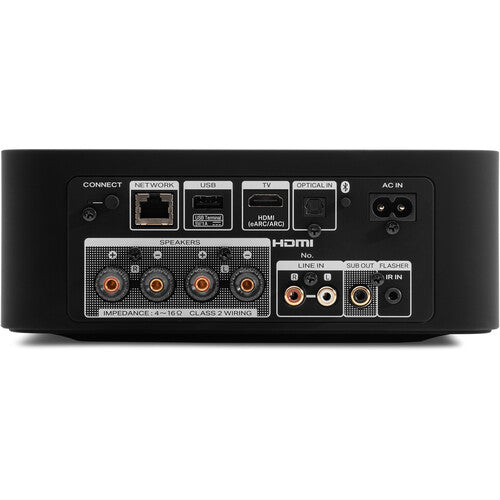

Audio Inputs / Outputs |
|
Loudspeaker Binding Posts |
4-way binding posts |
Digital Inputs |
HDMI (eARC), TOSLINK |
Analog Inputs |
RCA L/R |
Subwoofer Out |
RCA Mono |
Inputs Audio Options | |
Channel Assignments | Stereo (Default), Dual Mono |
Volume Limit | 80-100% |
Balance | -15dB to +15dB |
Adjustable High Pass / Low Pass Filters | 40-250 Hz / 40-120 Hz |
EQ | Bass, Treble -5dB to +5dB |
Sound Modes | Stereo, Direct, Virtual, Dialog Enhancer, Night Mode |
TV Sound Grouping | Yes |
Audio Format Support |
|
Decoding |
Dolby Digital +, Dolby Digital, LPCM, DSD |
Stereo PCM / Multi-channel PCM |
Yes / Yes |
Stereo File Formats (HEOS network share or USB) |
WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz |
Streaming Technologies |
|
Bluetooth Receive |
BT 4.2.X |
Bluetooth Transmit |
No |
AirPlay |
AirPlay 2 |
Spotify |
Spotify Connect |
Music Services and Sources |
|
Music Services Supported (HEOS®, subject to change and local availability) |
Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud. |
Music Stored on Mobile Device |
Yes (iOS, Android or Kindle Fire) |
NAS (Network Attached Storage) |
Network share |
USB Storage Device Playback |
Yes (FAT32, NTFS formatted drives) |
Networking & Control |
|
Wired Connectivity |
Ethernet |
Wireless Connectivity |
Dual band, 802.11 a/b/g/n/ac |
IR Input |
3.5mm |
IR Learning |
Yes |
Control System Compatibility via TCP/IP |
Creston, Control4, AMX |
HEOS® App |
iOS, Android, Kindle Fire |
General |
|
Product Color |
Black |
User Interface |
Volume up/down, Play / Pause, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear) |
Dimensions (W x D x H) Inches |
9.41 x 3.31 x 8.54 |
Dimensions (W x D x H) mm |
239 x 84 x 217 |
Weight (lbs) |
4.84 |
Weight (kg) |
2.2 |
Downloads
Specs
Item #: Marantz-Model-M1
Manufacturer Part #: Model-M1
