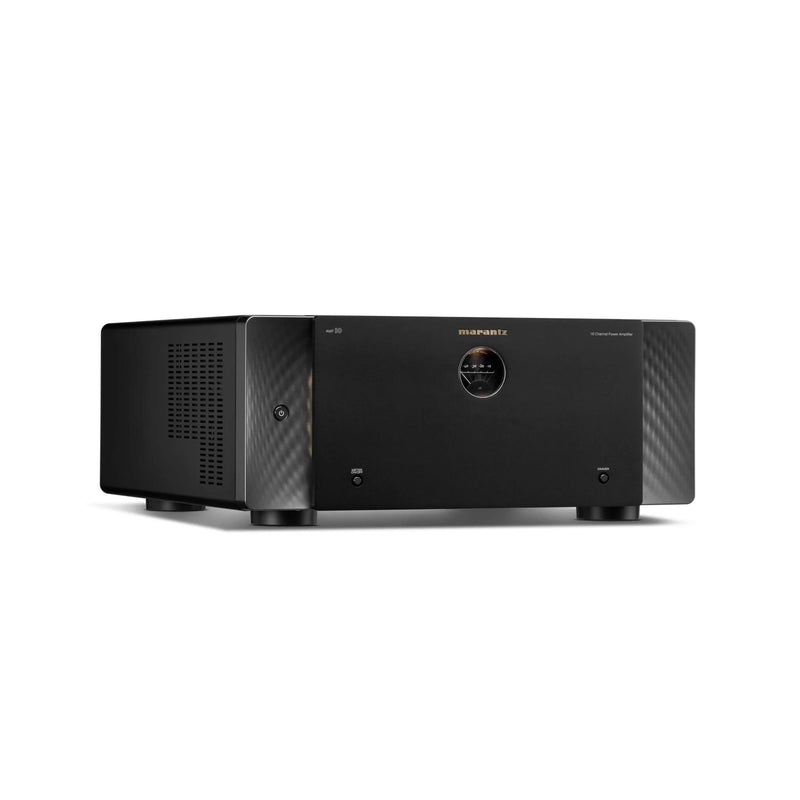

Marantz AMP 10 Reference 16 Channel Amplifier with 200W And Custom HDAM
Item #: Marantz-AMP10
$8,000.00
Leaves Warehouse within 5-10 Business Days
Free Shipping
Amp 10 Amplifier
Engineered with best-in-class technologies, AMP 10 cleverly combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance.
The Apex of Home Cinema
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.
AMP 10
 |  |  |

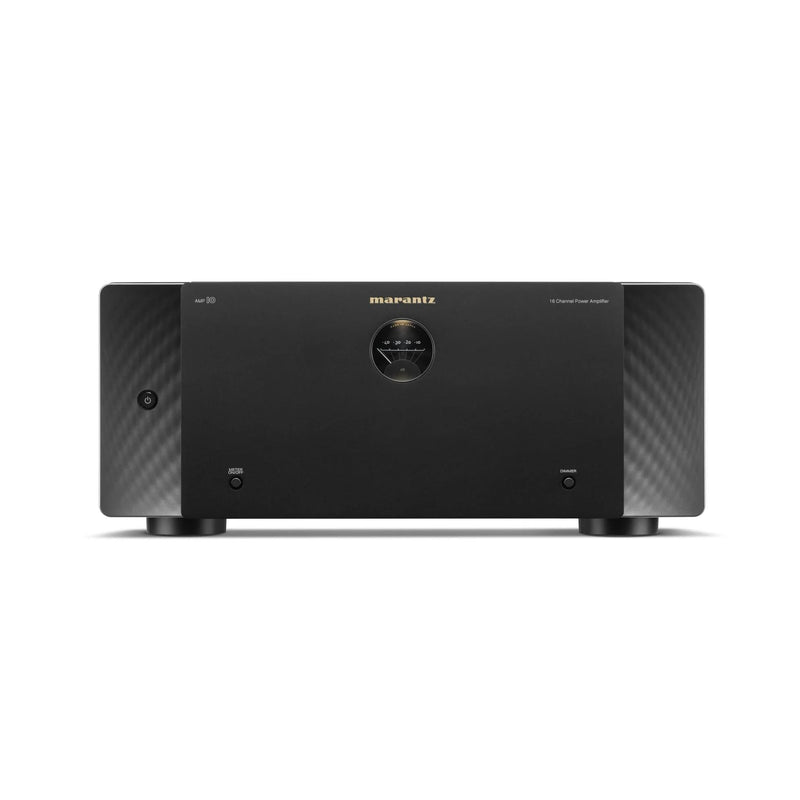

 | Exquisite DesignA modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel. |
Ultimate PerformanceWe developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home. |  |
 | Technology LeaderThe Marantz Sound Master meticulously tuned AMP 10 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home. |
Sound Master TunedAMP 10 is engineered using best-in class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned. |  |
Key Technologies
Copper Plated Chassis
SPK 1+
A reference power amplifier, AMP 10 is designed with timeless style, and engineered for utmost performance.
Details and Specifications
Multi-Room CI |
|
|---|---|
IP Control / RS232 Control / Web Control / App Control |
No / Yes / No / No |
IR Flasher In |
Yes |
Marantz Remote Bus |
Yes |
DC Trigger Input/ Output |
1 / 1 |
Others |
|
Front Display |
Level Meter |
Firmware Update by Network / USB / RS232C |
No / No / No |
Auto Power off |
Yes |

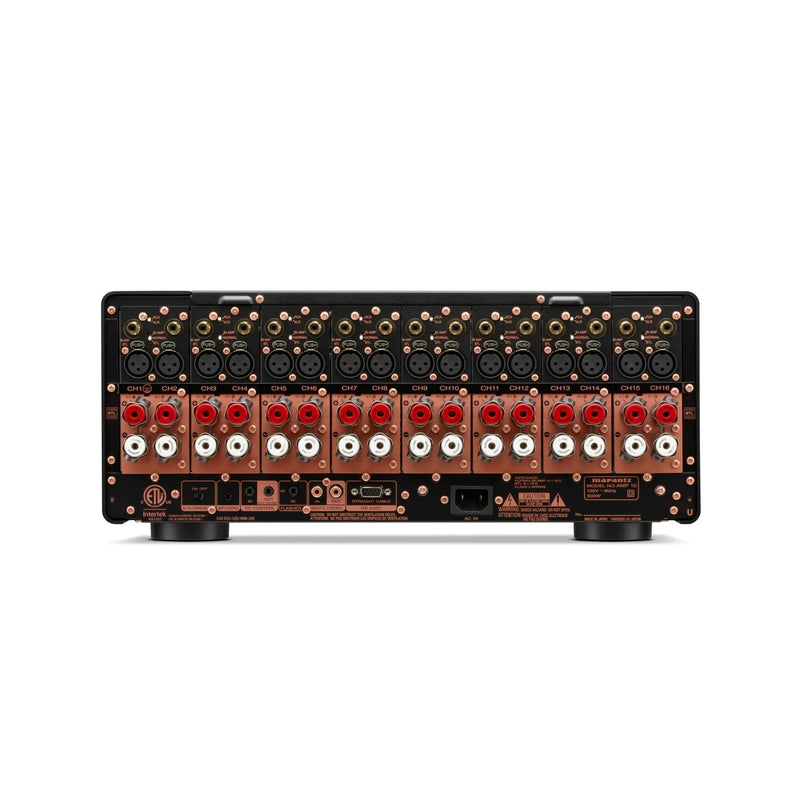

Inputs Outputs |
|
Main Amplifier in |
Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.) |
Speaker Terminal |
SPKT-1+ |
Number of Speaker Terminals |
16 |
Bi-Amp Drive / BTL Drive |
Yes / Yes |
Level Meter |
Yes |
Chassis |
Copper Plated |
Specifications |
|
Number of poweramps |
16 |
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL |
200W / 400W |
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal |
400W |
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal |
200W |
70% Guarantee (Normal/Bi-Amp/BTL) |
Yes |
100% Guarantee (Normal/Bi-Amp) |
Yes |
General |
|
Metal Front Panel |
Yes |
Pre-Programmed / Learnable / LCD Display |
No / No / No |
Power Consumption in W |
500 |
Power Consumption No-Sound (ECO on/off) in W |
No / 140W |
Standby Consumption in W |
0.2 |
Maximum Dimensions |
17.4 x 19.2 x 7.4 |
Weight in lbs. |
43.7 |
What's in the box |
|
| Main unit, quick start guide, AC cord, Amp control cable, Remote control cable, SP terminal wrench | |
Downloads
Specs
Item #: Marantz-AMP10
Manufacturer Part #: AMP10
