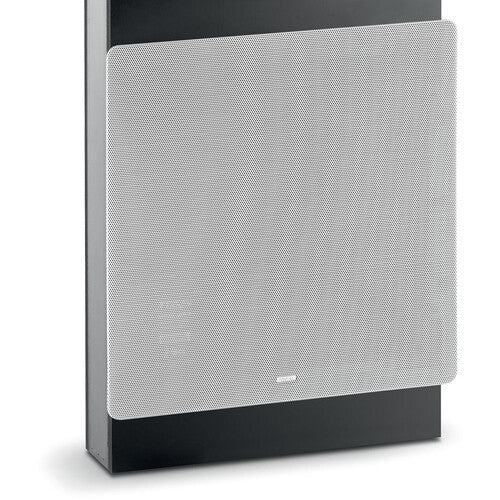

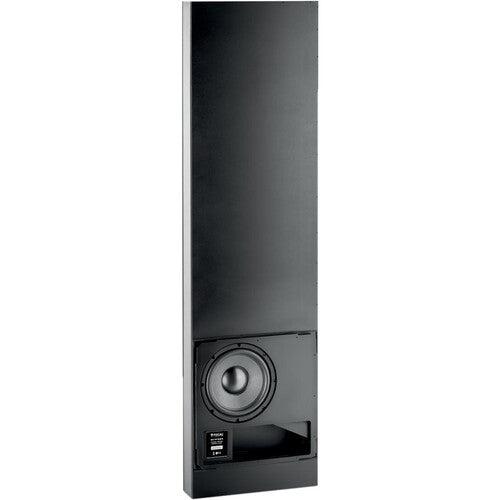

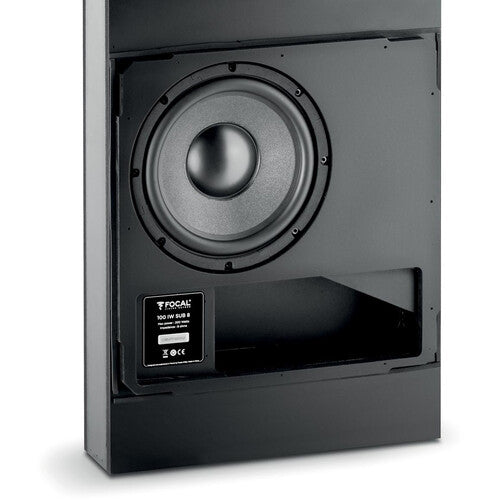

Focal 100 IWSUB8 8" 200W In-Wall Passive Subwoofer

Item #: Focal-F100IWSUB8

$829.00

As an authorized dealer for the product you are looking at, we are bound by certain agreements with our partners in how we display, price and sell certain products.

Contact Us to Place Order

Free Shipping

Overview

100 IWSUB8 high-power passive bass-reflex subwoofer

Complete your 100 Series audio-video installation with 100 IWSUB8. This subwoofer with 30 Hz low cut-off incorporates a 21 cm Polyglass driver and a front port with a contoured internal structure to guarantee noise-free operation. This subwoofer promises deep, impacting bass that won't leave you indifferent.

HIGH POWER

This passive bass-reflex subwoofer can be pre-installed in walls and partitions, in compliance with the 16" OC mounting standard (with 40 cm spacing between studs).

DISCREET AND POWERFUL

The loudspeaker can be used horizontally for Home Cinema installations. A three-position switch allows you to define the left, center or right function, to guarantee identical tonal balance at the listening point.

UNEXPECTED MUSICALITY IN YOUR HOME

COMPLEMENTARITY

Focal has developed an amplifier specially adapted to the 100 IWSUB8 and easy to install: the 100 IWSUB8 Amplifier. It's the perfect way to create a unique sound environment in your home.

100 IWSUB8 AMPLIFIER

High-power bass amplifier

SPECIFICATIONS

Sound - Acoustics
  • Product type : Passive subwoofer
  • Membrane : Polyglass
  • Response at - 6dB (Low frequency point) : 30 Hz
  • Frequency response (+/- 3dB) :34 - 140 Hz
  • Nominal Impedance : 8 Ω
  • Recommended amplifier power : Max 200 W
  • Sensitivity : 89 dB
Design
  • Depth behind surface (Mounting depth) : 3.37 in / 3.37 in
  • Mounting height : 1300 mm / 5.81 in
  • Mounting width : 352 mm / 13.87 in
  • Depth : 98 mm / 3.87 in
  • Height : 1.3 mm / 5.81 in
  • Width : 352 mm / 13.87 in
  • Weight : 14.6 kg / 32.3 lb
 Accessories
  • Black and white felt : Black and white felt ready to stick
  • Cut Out template : Yes
  • Grids : Ready-to-paint low profile grille with magnetic fixing

TECHNOLOGIES

POLYGLASS MEMBRANE

Well-defined mids

The diaphragm, the key component of a loudspeaker, is at the heart of our acoustic engineers' research. Polyglass technology, exclusive to Focal, consists of applying fine glass microbeads to a cellulose pulp cone. This process reconciles the excellent damping of paper with the rigidity of glass. The stiffness index is almost 10 times that of polypropylene. Adjusting the mass-rigidity-damping ratio results in a remarkably linear frequency response curve, right from the membrane design stage. This innovation also significantly increases definition in the midrange register.
