Draper Acumen V 117" CinemaScope CineFlex CH1200V with Quiet Motor Projector Screen
Item #: Draper-154112CBQ
$5,438.00
Need Help? Chat With an Expert or Call 888-392-4814
Leaves Warehouse within 4-6 Weeks
Free Shipping

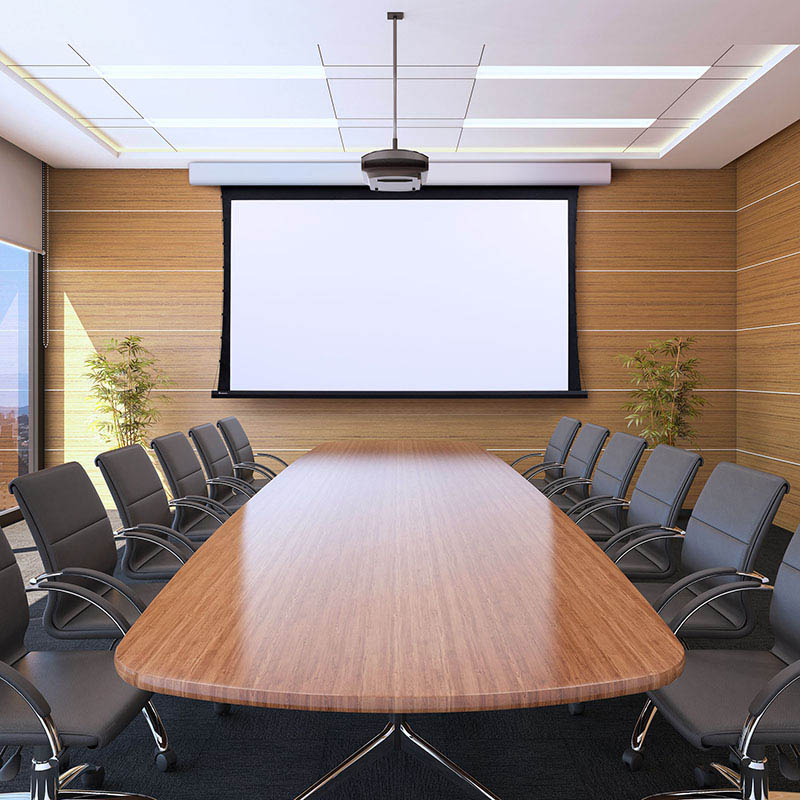

Designed for maximum flexibility, Acumen™ V features an attractive below the ceiling projection screen engineered to meet the demands of heavy use and still look nice in today’s interiors.

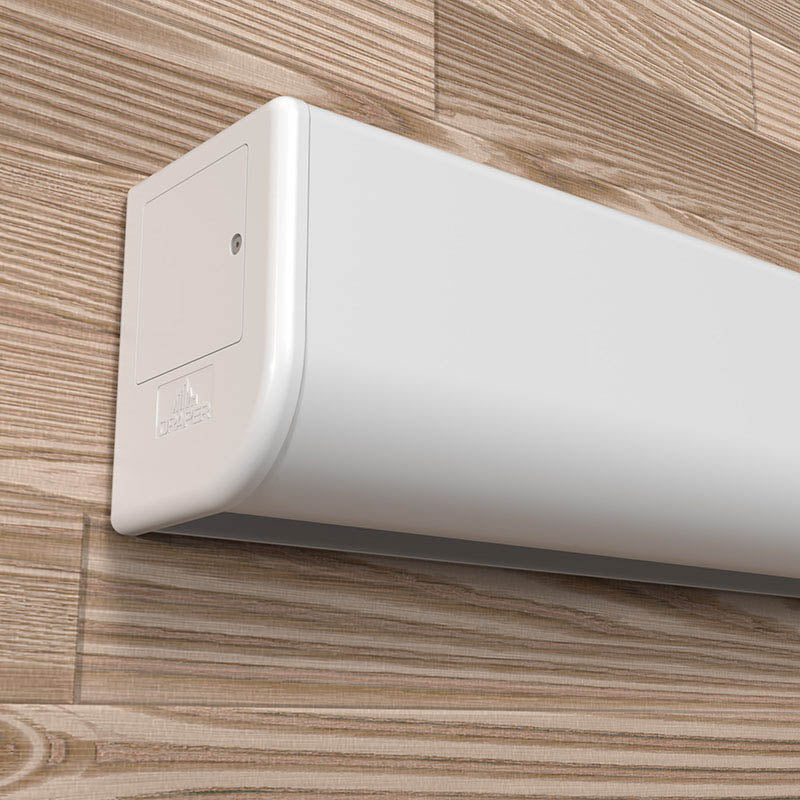

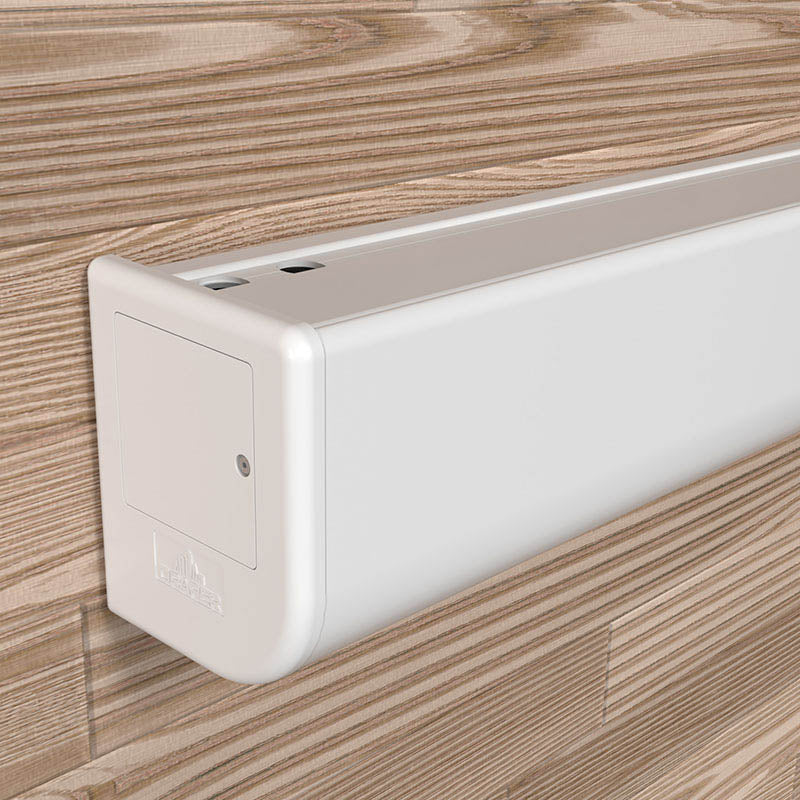

A smooth, curved aluminum housing and white powder coated finish complement any room design.

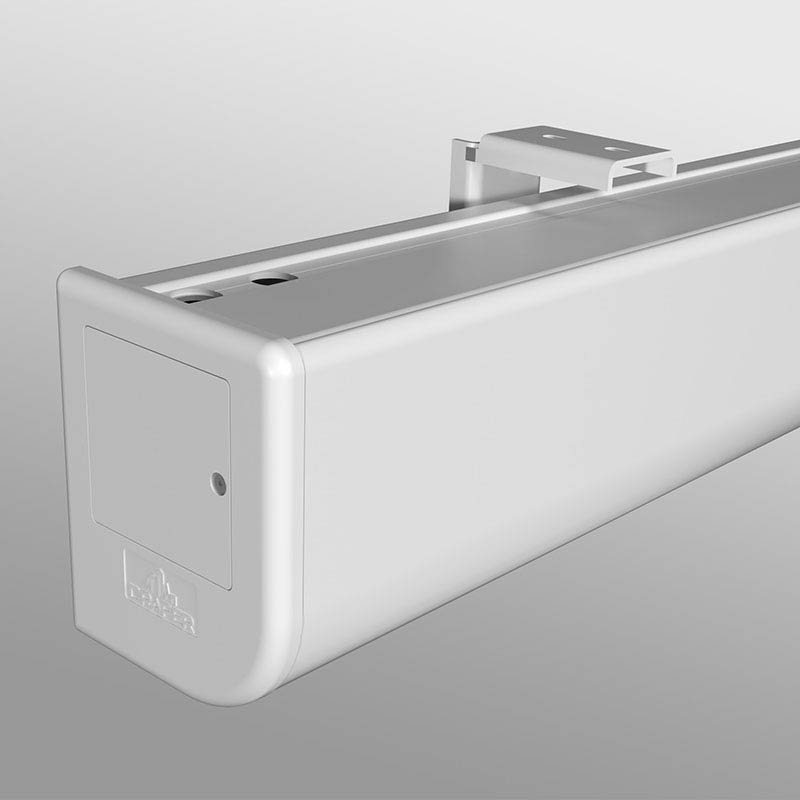

Floating wall brackets provide this wall- or ceiling-mounted electric screen quick and easy installation.
A tab-tensioned screen provides a perfectly flat viewing surface with better image quality.
RF welded tabs create a more durable seal that eliminates separation and stickiness. Fascia is easily removable if maintenance is required.
A wide variety of motor and control options including quiet and low voltage are available.
Product Specs
- Case dimensions: 7-1/8” h x 5-7/8” d (181 mm x 149 mm). Extruded aluminum housing with white powder coated or optional black finish.
- Maximum image width up to 10’ (305 cm) wide.
- Full line of Draper® viewing surfaces including TecVision® are available for the Acumen™ V.
- Rear projection surfaces available.
- RF welded tabs warranted against separation for five years.
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
- Streamlined extruded aluminum case finished in white powder coat (standard).
- Fascia removable for easy access to roller and motor for service.
- Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.
- Floating mounting brackets included. Ceiling brackets available.
- Custom sizes available.
- Seven-year warranty.
Projection Surface
Cineflex CH1200V
Neutral grey rear projection diffusing surface. Provides high resolution and excellent contrast, even in lighted rooms. Recommended for use with low to medium output projectors. Moderate viewing cone.
This surface was previously named Cineflex.
Surface Characteristics
- Maximum Height Without Seams: 144"
- Weight (g/sm): 333
- Thickness (mm): 0.3
- Cleaning: Mild Soap and Water
- Composition: Flexible
Surface Material Properties
| Maximum Size | 12' Height |
| Peak Gain | 1.2 |
| Half Gain | 30 Degrees |
| Acoustically Transparent | No |
| Front / Rear Projection | Front |
| Flame Resistance | Yes |
Specs
Item #: Draper-154112CBQ
Manufacturer Part #: 154112CBQ
