Draper 139109 Access E 106 Diag. (52x92) - HDTV [16:9] - 1.0 Gain

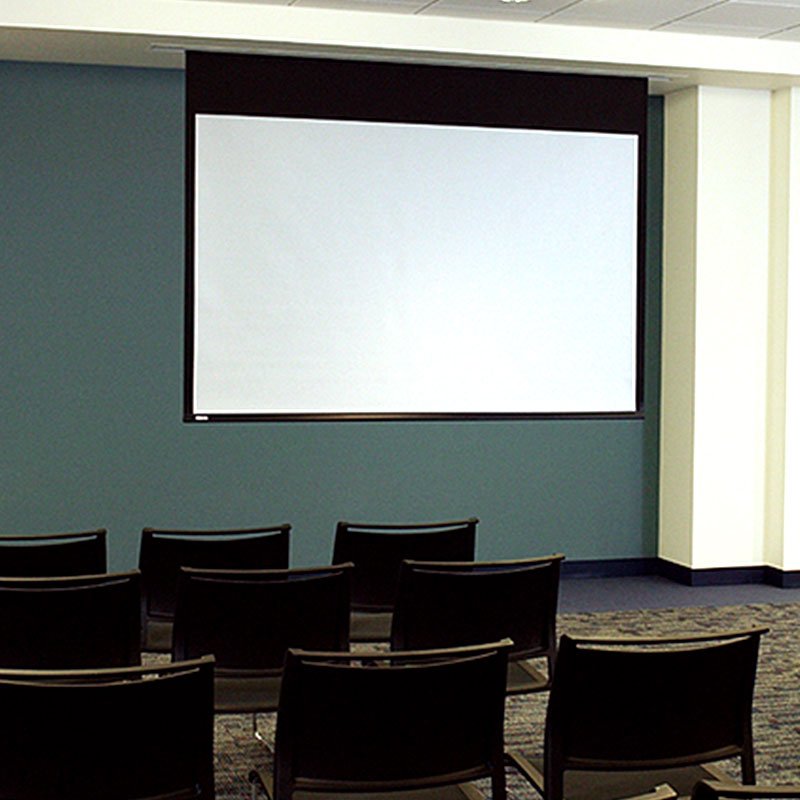

The ceiling-recessed Access E projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. The case can be installed during the initial construction phase, allowing the screen to be installed later to eliminate job site damage. Case includes a bottom access panel for easy service and maintenance.

Product Specs

• Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

• Maximum image width up to 16' (488 cm) wide, depending on surface selection.

• The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

• Adjustable or removable hoisting brackets included for easy lifting during installation.

• Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.

• Sliding brackets on top of the case allow for adjustments when mounting.

• Sliding brackets inside case accommodate different size screens.

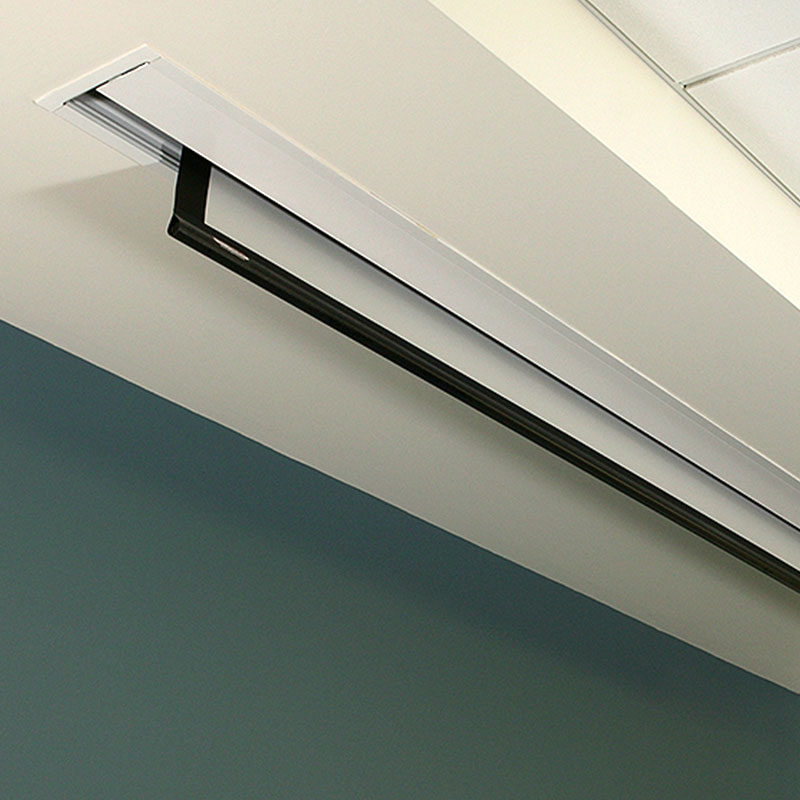

• Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

• Quick-connect wiring allows for early installation of the case with the addition of the screen later.

• Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

• Low voltage, video interface or other controls can be built into housing for access from below ceiling.

• White case standard, black available upon request.

• Custom sizes available.

• UL Listed.
