Da-Lite Myriad Tensioned Conceal SightLine DL100286L - 198"Diag. (105X168) - Widescreen [16:10] - HD Progressive 1.3 - [CUSTOM]

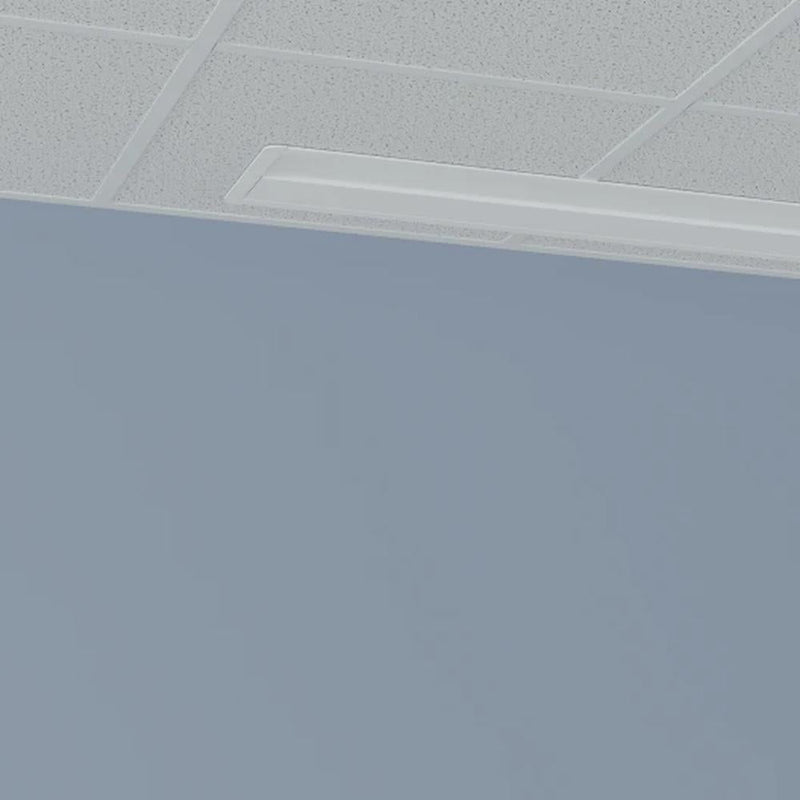

Myriad Conceal is a ceiling recessed electric screen offered in sizes from 14'-16’ (4-5 m) wide in 16:9 HDTV and 16:10 Wide formats. Tensioned products are available with HD Progressive 16K ready and Parallax® Ambient Light Rejection screen surfaces. Designed with ceiling trim in place to conceal the rough opening, this eliminates the need to complete additional trim work once the screen is installed. The crowd-favorite two-stage installation option affords the screen case to be installed during the rough-in construction stage and the screen surface assembly during the finishing stage.

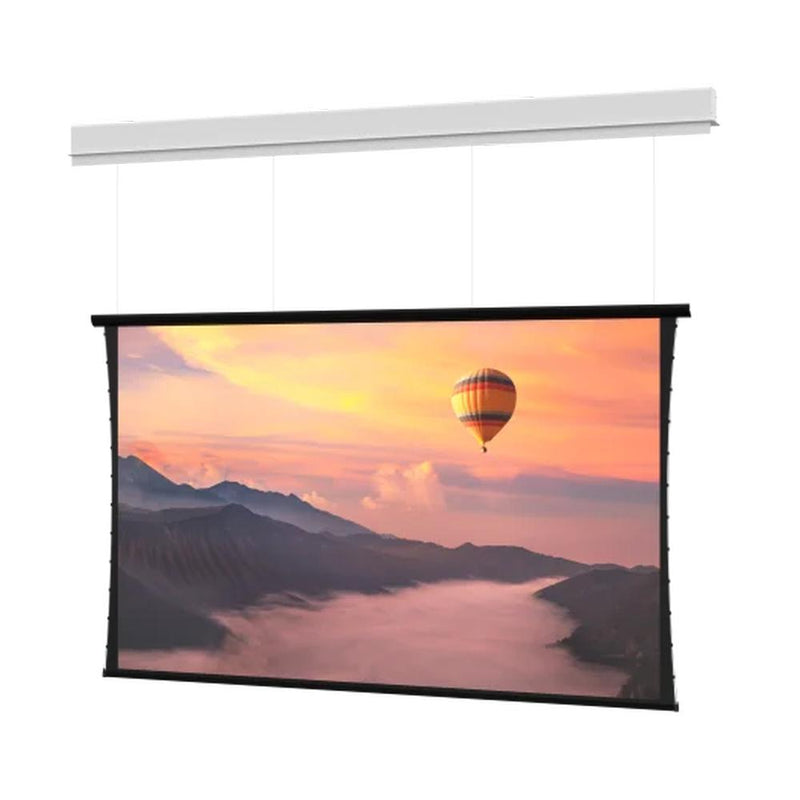

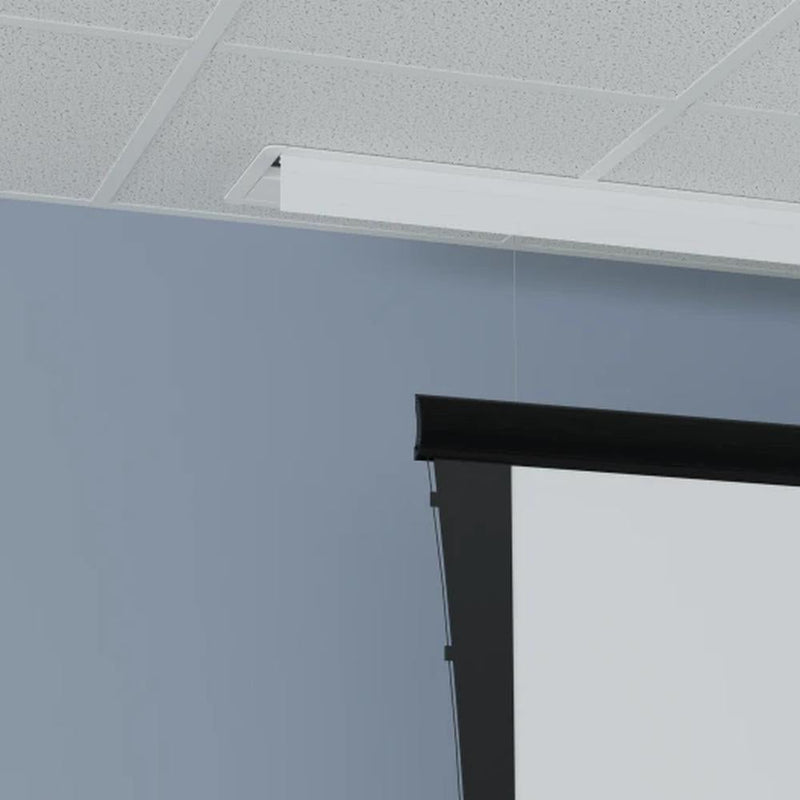

Available on all Myriad models, SightLine, Da-Lite’s thin cable drop feature, elegantly suspends the screen surface and eliminates black drop – the black border above the projection screen. Specifying drop distance upon ordering is a thing of the past. Now, vertical placement of the screen can be variable as the cables accommodate a range of drop distances up to 16’ (5 m) (standard) between the ceiling and the top of the screen – making ordering a snap. What’s more, this feature creates usable space above the viewing area to preserve architectural interests and provides the opportunity for camera/speaker placement. Myriad screens are ideal for large meeting spaces, conference centers, lecture halls, large classrooms, houses of worship, and hotel ballrooms. A global platform globally manufactured (US and EMEA) for your global rollouts. It's a whole new generation of screens. Just wait for what’s next.

• Configurations
  • SightLine Cable Drop
    • Tensioned with SightLine
  • Case
    • UL Plenum rated case
    • Standard white powder-coated aluminum finish; available in black upon request
    • Standard closure door
  • Screen Drop
    • SightLine models (tensioned and non-tensioned) include 16’ (5 m) cable of fully adjustable cable drop
  • Screen Control
    • Standard Low Voltage Control (LVC) to keep your screen operation flexible
    • Decora-style, three-button wall switch with motor limit adjustment and third-party control connections on the back
      • Dry contact interface
      • Projector trigger (5-12V)
  • Screen Surfaces
    • Standard black backing retains projected brightness on front projection surfaces
    • Seamless surfaces in all models
    • Parallax Stratos 1.0 surface for standard throw projectors (1.0:1 or greater)
    • In tensioned models, TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness
  • Smart integrated anchor points for roller suspension allows for easy maintenance
  • Support includes a comprehensive five-year warranty to keep you confident in your purchase
