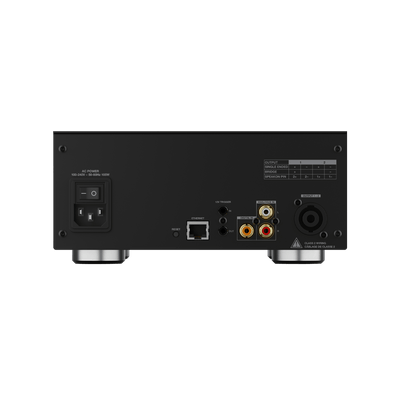

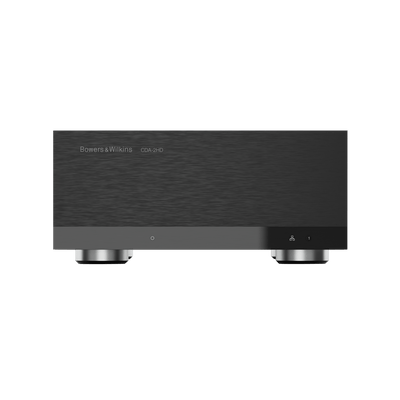

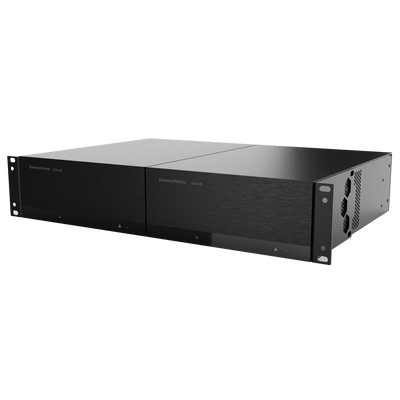

Bowers & Wilkins CDA-2HD - Black - FP43605
Item #: BW-FP43605
$2,500.00
Contact Us to Place Order
Free Shipping
As an authorized dealer for the product you are looking at, we are bound by certain agreements with our partners in how we display, price and sell certain products.
CDA-2HD
High-power 2x 500W distribution amplifier
A high-power distribution amplifier, with two channels of 500 watts each, DSP for product optimization and dynamic EQ for subwoofers.
CDA-2HD DSP Amplifier
The CDA-2HD is a high-power distribution amplifier, designed to drive current and future Bowers & Wilkins Custom Installation loudspeakers. Embedded DSP allows optimization of a wide range of products and dynamic EQ for Bowers & Wilkins subwoofers. It boasts two channels of 500 watts each, and its half-rack width 2U design delivers high-performance from minimum rack space.
 | Impressively smartTo ensure the CDA-2HD delivers in the modern custom installation system, it is equipped with Digital Signal Processing (DSP). This allows it to be used in wide variety of situations, provides control over IP and configuration, and dynamic EQ for Bowers & Wilkins subwoofers. |
Compact powerhouse.CDA-2HD’s half-rack width 2U size means that it takes up the minimum of rack real estate. But with two channels of 500 watts of Class D amplification on board it can bring the power when required. Plus, as it’s bridgeable this can be configured to deliver 1,000 watts where needed. |  |
 | FlexibleWhether you are looking to upgrade an in-situ installation or planning a new one, the CDA-2HD DSP amplifier is a great solution. It combines power with finesse, and works with a wide variety of Bowers & Wilkins products, both current and future. |
Don't look. Listen.
Details & Specifications
Audio Specifications |
|
|---|---|
Load impedance range: |
>30 per channel (>6Ω in bridge mode) |
Output Power per channel, non-clipped: |
250W into 8Ω (212W into 80%) |
Output Power bridge mode, non-clipped: |
500W into 4Ω (424W into 40") |
Output Power total, all channels: |
1000W into 8Ω (848W into 8Ω*) |
DC offset voltage: |
<50mV |
Frequency Response (-3dB): |
<10Hz to >80kHz, any load impedance |
Frequency response accuracy 20Hz-20kHz: |
+/-10B |
Dynamic range: |
>85dB A-Weighted |
THD+N (1kHz, 500W, 4Ω): |
less than 1% |
Voltage Gain: |
21dB to 45dB, adjustable |
Input impedance: |
10kΩ |
Maximum input voltage: |
4 Vrms |
Signal sense threshold: |
2.5mV (independent of Gain setting) |
Wake-up time: |
<0.2s (If other zones active) |
Turn-off time: |
15 minutes from last signal detected |
12V trigger input threshold: |
Typically 3V (recommended input is 5-15V) |
Controls & Indicators |
|
Front panel: |
|
Rear panel: |
|
Connectors |
|
Input: |
|
Output: |
1 x SpeakOn |
12V trigger control: |
|
Power |
|
Power consumption: |
|
AC supply: |
100-240V 50/60Hz |
AC inlet: |
IEC C14, switched |
Thermal |
|
Thermal dissipation: |
|
Dimensions |
|
Height: |
85mm (3.4in) 1U (100 mm (8.9in) plus feet) |
Width: |
218mm (8.6in) |
Depth: |
823mm (12.9in) |
Net weight: |
3.4kg (7.5lb) |
Finish: |
Black |
Specs
Item #: BW-FP43605
Manufacturer Part #: FP43605
