Bowers & Wilkins CCM 7.3 S2 - Primed white grille - FP41084
Item #: BW-FP41084
$2,550.00
Contact Us to Place Order
Free Shipping
As an authorized dealer for the product you are looking at, we are bound by certain agreements with our partners in how we display, price and sell certain products.

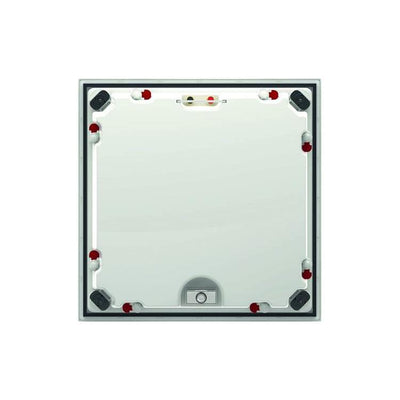

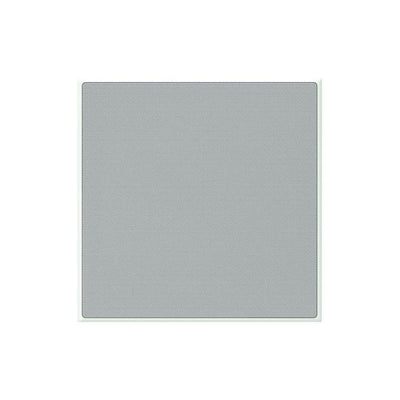

CCM7.3 S2 in-ceiling speaker
Uncompromised 3-way in-ceiling design with Carbon Dome tweeter, Continuum midrange, and Aerofoil bass drivers.
See nothing, hear everything

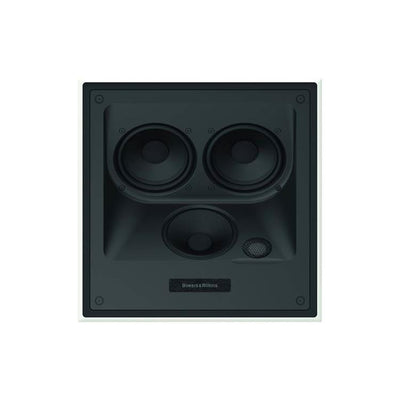

The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and 2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimizes sound quality.
Technical Details |
|
|---|---|
Technical features |
|
Description |
3-way in-ceiling system |
Drive units |
|
Frequency range (-6dB) |
-6dB at 52Hz and 33kHz |
Frequency Response -3dB |
55Hz - 28kHz ±3dB |
Sensitivity |
90dB spl (2.83Vrms, 1m) |
Harmonic distortion |
|
Nominal impedance |
8Ω (minimum 3.1Ω) |
Recommended amplifier power |
25W - 200W into 8Ω on unclipped programme |
Frame dimensions |
|
Depth |
194.5mm (7.66in) |
Cut-out dimensions |
|
Cut-out dimensions w/PMK |
|
Protrusion |
8mm (0.3in) |
PMK |
7C |
Net weight |
9kg (19.84lb) Inc accessories |
Finishes |
|
Specs
Item #: BW-FP41084
Manufacturer Part #: FP41084
