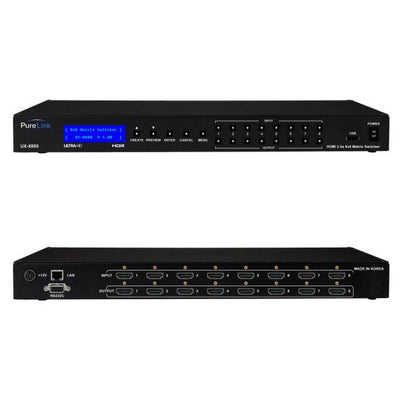

PureLink UX-8800 8X8 4K HDMI Matrix Switcher with HDCP 2.2
Item #: PureLink-UX-8800
$4,669.99
Need Help? Chat With an Expert or Call 888-392-4814
While Supplies Last
Free Shipping
Overview
8X8 4K HDMI MATRIX SWITCHER WITH HDCP 2.2
The UX-8800 provides switching of up to eight HDMI 2.0 inputs and outputs and incorporates the latest technologies available on the market including HDR and HDCP 2.2 compliance. The UX Series matrix switchers also feature a built-in web page interface allowing convenient set-up, user access, control, and operation through any web browser on devices such as laptops or tablets.
Together with advanced EDID management and added security features, the UX Series delivers a true, first-in-class Ultra HD multi-zone signal distribution solution ideal for corporate conferencing, education, and hospitality environments, to name a few.
Key Features
- 8x8 HDMI 2.0 matrix switching
- Resolutions up to 4K@50/60 Hz (4:4:4 pixel format)
- HDCP 2.2 compliant
- HDR support
- Built-in web interface for convenient setup & operation
- Bi-directional RS232/LAN control
- Locking HDMI ports
| General Technical Specification of UX-8800 | |
| Model | UX-8800 |
| INPUTS | 8 HDMI |
| OUTPUTS | 8 HDMI |
| RESOLUTION |
Ultra HD/4K Up to 4096 x 2160 @50/60Hz (RGB 4:4:4 YCbCr 4:4:4, 4:2:2, 4:2:0) |
| DATA RATE | 18 Gbps |
| OPERATING TEMPERATURE | 32? ~ 117? F (0? to 47? C) |
| STORAGE TEMPERATURE | - 40? ~ 158? F (-40? to 70? C) |
| HUMIDITY | 0 ~ 90% non-condensing |
| MTBF | 95,000 hours |
| SUPPORTED FORMAT | HDMI 2.0 |
| COMPLIANCE | HDCP 2.2 |
| ACCESSORIES | DC +12V | 5.0A | Max 60w (power supply) |
| DIMENSIONS (W x D x H) |
19? x 8.0? x 1.75? in. 482.6 x 203.2 x 44.45 mm |
| Weight | 6.7 lbs (3.04 kg) |
| UX Series Support format | ||
| Video Resolution | Color Space and Pixel Depth | Refresh (Hz) |
| VGA (640 ? 480p) | RGB 4:4:4 ? 24, 30, 36 bpp | 59.94/60 |
| WVGA (800 ? 480p) | RGB 4:4:4 ? 24, 30, 36 bpp | 60 |
| SVGA (800 ? 600p) | RGB 4:4:4 ? 24, 30, 36 bpp | 60 |
| XGA (1024 ? 768p) | RGB 4:4:4 ? 24, 30, 36 bpp | 60 |
| SXGA (1280 ? 1024p) | RGB 4:4:4 ? 24, 30, 36 bpp | 60 |
| UXGA (1600 ? 1200p) | RGB 4:4:4 ? 24, 30, 36 bpp | 60 |
| WUXGA (1900 ? 1200p) | RGB 4:4:4 ? 24, 30, 36 bpp | 60 |
| 480i 2x (1440 ? 480i) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
59.94/60 |
| 480i 4x (2880 ? 480i) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
59.94/60 |
| 480p (720 ? 480p) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
59.94/60 |
| 480p 2x (1440 ? 480p) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
59.94/60 |
| 480p 4x (2880 ? 480p) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
59.94/60 |
| 576i 2x (1440 ? 480i) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
50 |
| 576i 4x (2880 ? 480i) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
50 |
| 576p (720 ? 480p) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
50 |
| 576p 2x (1440 ? 480p) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
50 |
| 576p 4x (2880 ? 480p) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
50 |
| 720p (1280 ? 720p) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
23.98/24/25/29.97/30/ 50/59.94/60 |
| 1080i (1920 ? 1080i) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
23.98/24/25/29.97/30/ 50/59.94/60 |
| 1080p (1920 ? 1080p) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
23.98/24/25/29.97/30/ 50/59.94/ 60/100/119.88/120 |
| 1080p (1920 ? 1080p) | RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
23.98/24/25/29.97/30/ 50/59.94/ 60/100/119.88/120 |
| 4K ? 2K (3840 ? 2160p) | RGB 4:4:4 ? 24 bpp YCbCr 4:4:4 ? 24 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
23.98/24/25/29.97/ 30/50/59.94/60 |
| 4K ? 2K (4096 ? 2160p) | RGB 4:4:4 ? 24 bpp YCbCr 4:4:4 ? 24 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp |
23.98/24/25/29.97/ 30/50/59.94/60 |
Specs
Item #: PureLink-UX-8800
Manufacturer Part #: UX-8800
