Marantz AV7706 11.2 Channel 8K Ultra HD A/V Surround Pre-Amplifier
Item #: Marantz-AV7706
$3,200.00
Leaves Warehouse within 5-10 Business Days
Free Shipping
AV7706 Premium 11.2 Channel Pre-Amplifier and Processor with HEOS Built-in
Enjoy a versatile home theater setup with the audiophile sound you expect from Marantz and immerse yourself in multi-dimensional audio with the Marantz AV7706 processor/pre-amplifier.
A Masterpiece of Audio Architecture
Created with passion and extraordinary attention to detail, every element brings you closer to the music you love.
AV7706
 | The Next Chapter In Movie EntertainmentThe new AV7706 offers the highest-quality, crystal-clear viewing experience. Enjoy your movies with 8K/60Hz pass-through or upscaling, as well the latest in HDMI technology like Dynamic HDR and Quick Media Switching (QMS), which is used in movies to eliminate video delay. |
Your Music With MarantzIts high-resolution preamplifier uses custom-curated Marantz HDAM technology for the purest sound in audio. |  |
 | Advanced 8K HDMI Connectivity With eARC SupportThe new Marantz AV7706 includes 8 HDMI inputs and 3 outputs for all your favorite sources.. |
Sound Master TunedThe Marantz Sound Master meticulously tuned AV7006 for amazing performance with careful parts selection to create the Most Musical Sound in your home. |  |
For the Soundtrack of Your Life
HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.
Search for Songs Across PlatformsHEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD. |
Your Whole Home in One PlaceHEOS-enabled devices allow you to control multiple rooms, all with the HEOS app. |
Search for Songs Across PlatformsUse your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favorites. |
AV7706 11.2Ch 8K Ultra HD AV Surround Pre-Amplifier with HEOS® Built-in and Voice Control
Featuring 11.2 channel XLR and RCA pre-outs, the Marantz AV7706 supports all 3D audio formats including Dolby Atmos®, Dolby Atmos Height Virtualization, DTS:X®, DTS Virtual:X™, IMAX Enhanced® and Auro-3D®. Enjoy audio playback with exceptional quality thanks to Marantz-proprietary HDAM modules and stream from Amazon Music HD, Pandora, Spotify, TIDAL, Deezer, and more with HEOS® Built-in.
- 8K/60Hz and select 4K/120Hz* pass-through support for every entertainment need: 8 HDMI inputs (incl. 1 front) with full HDCP 2.3 support; 3 HDMI outputs (incl. Zone 2)
- With 8K/60Hz pass-through and upscaling, Dynamic HDR and Quick Media Switching (QMS), enjoy the smoothest, crystal-clear picture quality available
- With select 4K/120Hz* pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), experience gaming thrills with amazing imaging with reduced lag and tearing
- The latest HDR format support including HDR10, HDR10+ (New in 2020), HLG, Dolby Vision, 4:4:4 color resolution and BT.2020, as well as Dynamic HDR (New in 2020) provides exceptional brightness, clarity, and contrast for miraculous picture quality
- Advanced video processing with analog to HDMI conversion; SD to HD/8K upscaling
- Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™, IMAX® Enhanced, and Auro-3D® processing for exceptional listening in all your favorite audio styles
- eARC (Enhanced Audio Return Channel) supports the most advanced surround and object-based audio formats via single HDMI connection between AVRs and compatible TVs
- Stream music from Internet Radio, Spotify Connect, Pandora, SiriusXM, Amazon Music HD, TIDAL, Deezer and more with Bluetooth, AirPlay 2 and HEOS® Built-in
- Built-in Wi-Fi with 2.4GHz/5GHz dual band support
- Enjoy multi-room whole-home audio streaming with HEOS® Built-in technology
- Simply use your voice to control your preferred voice assistant like Amazon Alexa, Google Assistant, Apple Siri and Josh.ai
- Decodes ALAC, FLAC and WAV lossless files up to 24-bit/192-kHz; DSD 2.8MHz and 5.6MHz tracks — enjoy your music exactly as the artist intended
- Marantz proprietary HDAM circuit boards, Current Feedback circuitry, 32-bit D/A converters, and Hybrid PLL Clock Jitter Reducer for more detailed, dynamic sound
- Suite of Audyssey room correction software: Audyssey MultEQ XT32, Dynamic Volume and Dynamic EQ, LFC, and Sub EQ HT
- Third-party integration and IR remote control, RS-232C serial port, and custom install support
- Seamless out-of-the-box experience with Quick Start Guide, guided Setup Assistant, and Marantz AVR Remote App
Key Technologies
TIDAL
TUNEIN
DEEZER
CONTROL4
OVRC
HDMI EARC & ARC
SIRI
AMAZON MUSIC
BLUETOOTH
8K ULTRA HD
ROON
JOSH.AI
HI-RES AUDIO
HEOS BUILT-IN
DTSX
Imax Enhanced
DOLBY ATMOS
APPLE AIRPLAY
AMAZON ALEXA
SPOTIFY
IHEART RADIO
PANDORA
With extraordinary attention to detail, every element of AV7706 brings you closer to the music and movies you love.
Details and Specifications
Multichannel Surround |
|
|---|---|
DTS Neo:X / DTS Neural:X |
No / Yes |
DTS Virtual:X |
Yes |
IMAX Enhanced |
Yes |
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization |
Yes / Yes / Yes |
Dolby TrueHD / Dolby Atmos / Dolby Surround |
No / Yes |
Auro 3D |
Yes |
Audyssey DSX |
No |
Multichannel Stereo |
Yes |
Max Number of Processing (Preamp) Channels |
11.2 |
Sound Enhancements |
|
Copper Plated Chassis |
No |
Power Transformer: Toroidal / EI |
No / Yes |
Current Feedback Topology |
Yes |
Hyper Dynamic Amplifier Modules (HDAM) |
Yes |
Pure Direct |
Yes |
Gold plated RCA terminals |
Yes |
Clock Jitter Reducer |
Yes |
Audyssey |
MultiEQ XT32 |
Audyssey Dynamic EQ / Dynamic Volume |
Yes / Yes |
Audyssey LFC |
Yes |
Compressed Audio Enhancer: MDAX2 |
Yes |
Network |
|
HEOS Multi-room and Streaming |
Yes |
Network Audio Sharing |
Yes |
Lossy formats MP3 / WMA / AAC |
Yes / Yes / Yes |
Lossless Formats: FLAC / ALAC / WAV |
Yes / Yes / Yes |
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 |
Yes / Yes / Yes |
DSD Audio Streaming |
Yes (2.8/5.6MHz) |
FLAC HD 192/24 |
Yes |
WAV 192/24 |
Yes |
ALAC 192/24 |
Yes |
Gapless Playback |
Yes (FLAC, WAV, ALAC, DSD) |
AirPlay Audio Streaming |
Yes (AirPlay2) |
Internet Radio |
Yes (TuneIn) |
Other Streaming Services |
Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix |
Compatible with Remote APP for Smart Phones |
Marantz 2016 AVR Remote |
Compatible with Remote APP for Tablets |
Android / iOS / Amazon Kindle |
Ethernet Ports |
|
Ethernet Ports |
Yes |
Wi-Fi |
Yes |
Bluetooth |
Yes |
HDMI |
|
HDMI Inputs: Back / Front |
7 / 1 |
HDMI Outputs: Main / Zone |
2 / 1 |
Video Conversion Analog -> HDMI |
Yes |
Analog to HDMI Scaling |
480i/576i up to 8K 60/50 |
HDMI to HDMI Scaling |
up to 8K 60/50 |
GUI Overlay on HDMI |
Yes |
Enhanced ARC |
Yes |
3D Signal Pass-Through |
Yes |
4K Signal Pass-Through / Scaling / GUI Overlay |
Yes / Yes / Yes |
HDMI Pass-Through in Standby Mode |
Yes |
Picture Adjust / Noise Reduction |
Yes / Yes |
CEC |
Yes |
DSD Audio Capability |
Yes |
Audio Return Channel |
Yes |
Auto LipSync |
Yes |
Multi-Room CI |
|
HEOS Multi-Room Integrated |
Yes |
HEOS Link Compatibility: IR/ IP |
Yes / Yes |
Multi-Room Zones |
3 |
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog |
Yes (2ch) / Yes (2ch) / Yes / Yes |
Zone Audio Output: Speaker / Preout |
No / Yes |
Zone HDMI Output from HDMI Source |
Yes |
IP Control / RS232 Control / Web Control / App Control |
Yes / Yes / Yes / Yes |
IR Flasher In |
Yes |
Marantz Remote Bus |
Yes |
DC Trigger Output |
2 |
HDMI Diagnostics |
Yes |
Others |
|
Auto Speaker Setup by Microphone |
Audyssey MultEQ XT32 |
FL Display |
2 lines + port hole |
Graphic User Interface - GUI |
Advanced |
ISF Certification |
Yes |
GUI Languages |
3 |
Smart Select |
Yes |
Firmware Update by Network / USB |
Yes / Yes |
Variable Cross Over |
Yes |
Optimized Bass Redirection |
Yes |
Bass Sync |
Yes |
ECO Mode |
No |
Auto Power off |
Yes |
Sleep Timer |
Yes |
Inputs / Outputs |
|
Composite In / Out |
3+1 / 2 |
Component In / Out |
3 / 1 |
HDMI In / Out |
7+1 / 3 |
Multi-Room Video Out: Video / HDMI |
Yes / Yes |
Analog In / Out |
5+1 / No |
Phono (MM) In |
Yes |
Digital In: Optical / Coaxial |
2 / 2 |
Multi-Room Out: Analog / Digital |
2 / No |
Multichannel Pre Out |
Yes (11.2 RCA & 11.2 XLR) |
Subwoofer Out |
2 (independent) |
7.1 Multichannel Input |
Yes |
Speaker A B assignable pre out |
Bi-Amp Drive |
Multi-Room Speaker Terminal |
pre out |
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB |
Yes / Yes / No / Yes / Yes |
USB Audio / Made for iPod® / Made for iPhone® |
Yes / No / No |
AM/FM Tuner |
Yes |
General |
|
Metal Front Panel |
Yes |
System Remote Control |

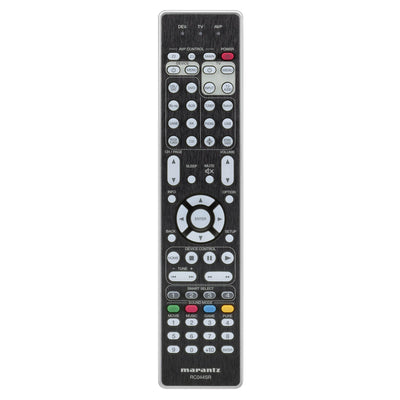

RC044SR |
Pre-Programmed / Learnable / LCD Display |
Yes / No / No |
Power Consumption in W |
60 |
Power Consumption No-Sound (ECO on/off) in W |
No |
Standby Consumption in W |
0.2 |
CEC Standby Consumption in W |
0.5 |
Network Standby Consumption in W |
3.5 |
Network Control On Consumption in W |
TBD |
Maximum Dimensions |
Antenna: Horizontal: (W x D x H) in inches: 17.3 x 16.2 x 7.3 (17.3 x 16.2 x 9.7); Without Antenna: (W x D x H) in inches: 17.3 x 15.8 x 7.3 |
Weight in lbs. |
22.9 (TBD) |
Downloads
Specs
Item #: Marantz-AV7706
Manufacturer Part #: AV7706
