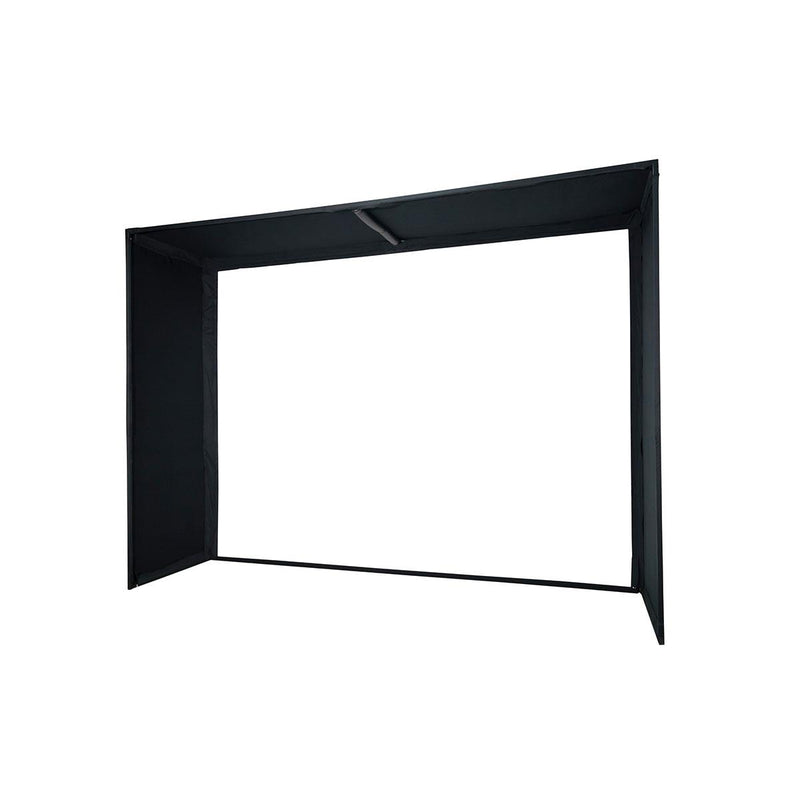

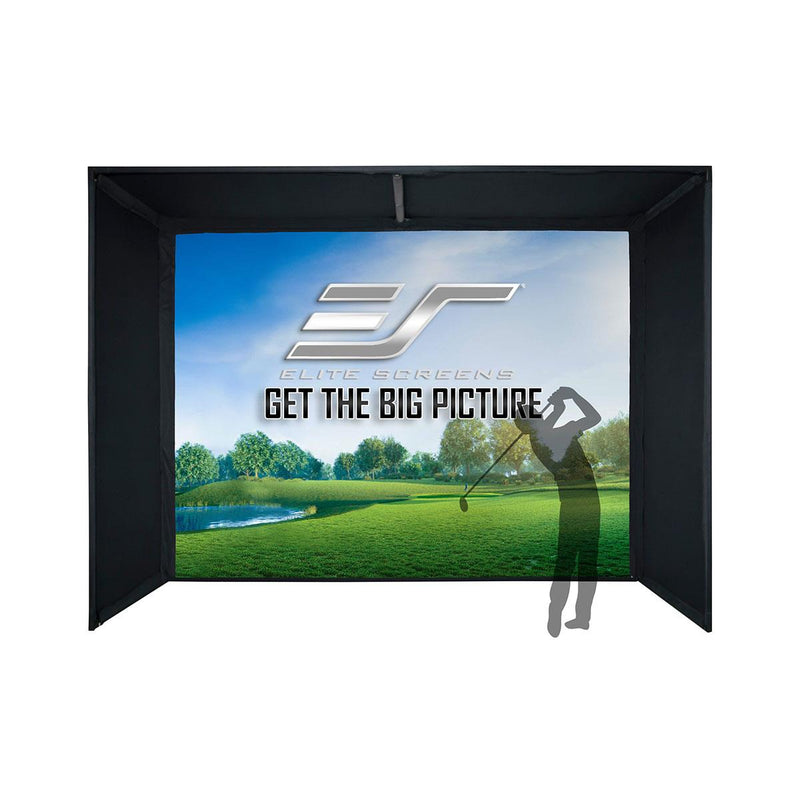

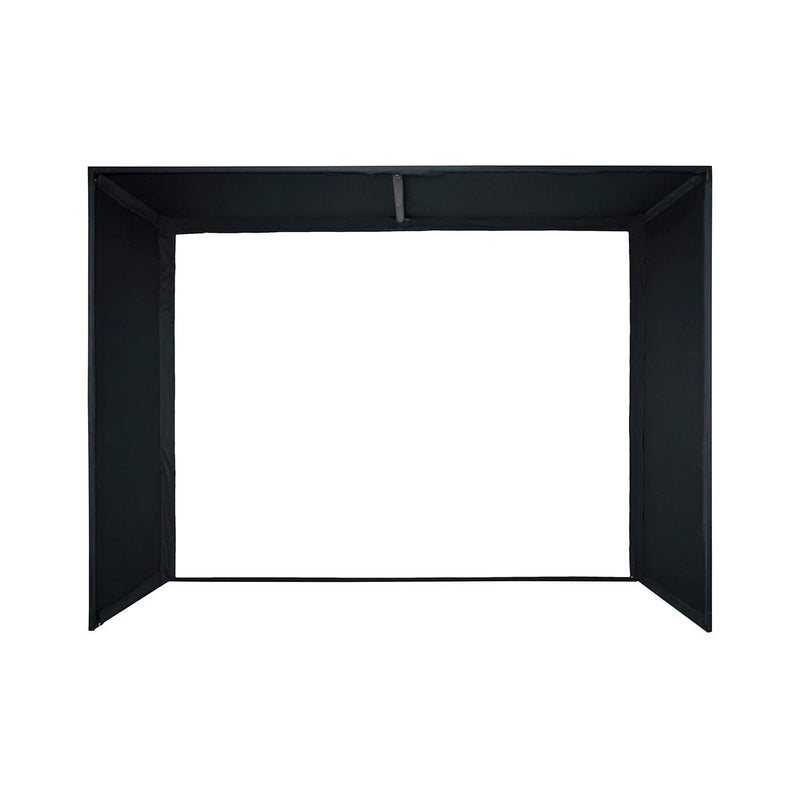

Elite GSB10x10-IPW1145 GolfSim Bay Commercial Grade Multi-Sport/Golf Simulator Impact Screen, Heavy-duty Frame System with Enclosure Panels, Viewable 113.4"x112.6"

The GolfSim Bay is a premiere golf simulator enclosure designed for high-end commercial and professional golf simulator installations. It includes everything you need to build the enclosure out of the box eliminating the hassle of purchasing additional components. The GolfSim Bay includes the impact screen, ball bungees, all metal frame tube pipes, corner fittings, and enclosure cover panels.

*We consider our impact screens a wearable item and the life of them will vary according to their use. Avoid using golf balls with scuffs or markings to maximize the life of the screen. If possible, use new golf balls. Some creasing may occur but may be removed with a steamer and/or light ironing set to no higher than Polyester.

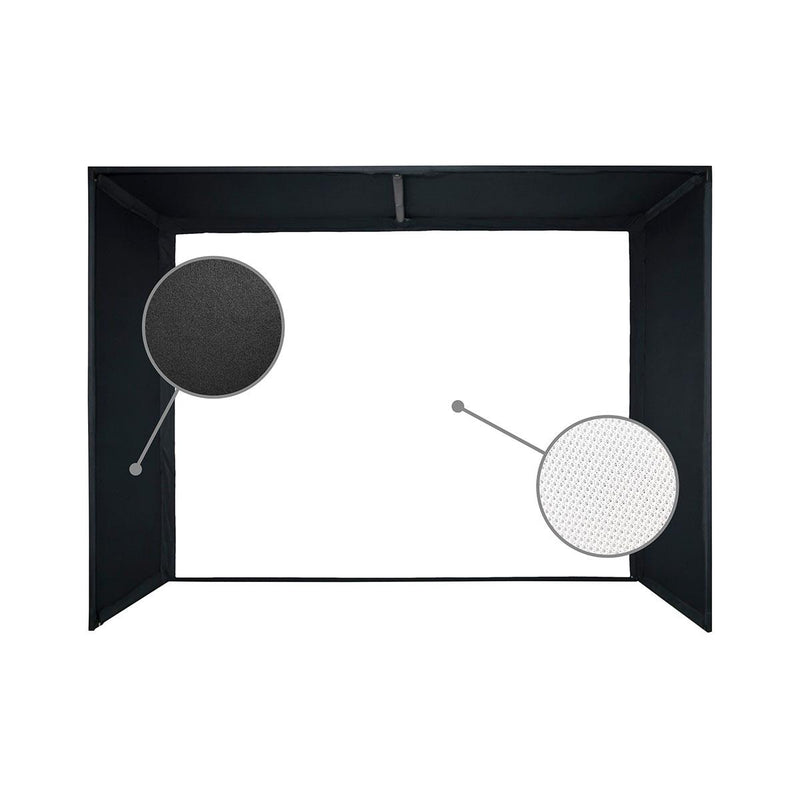

Screen Material

• ImpactWhite® 1145 golf impact front projection screen material
• 0.8 gain with wide diffusion uniformity allows viewers to see a clear bright uniform picture from any angle
• Resists indentations from golf impact and withstands ball speeds up to 200 mph.
• 4.5 mm warp knitted fabric is comprised of three-layers for maximum performance in image quality, shock absorption and endurance
• Internal space suppresses and dampens the noise generated when golf ball impacts screen
• High-strength warp knitted fabric absorbs impact reducing ball bounce back
• ISF Certified for accurate color reproduction – An industry standard for high-fidelity video display systems.

Design & Installation

• Commercial grade heavy-duty metal tube frame construction including all corner fittings.

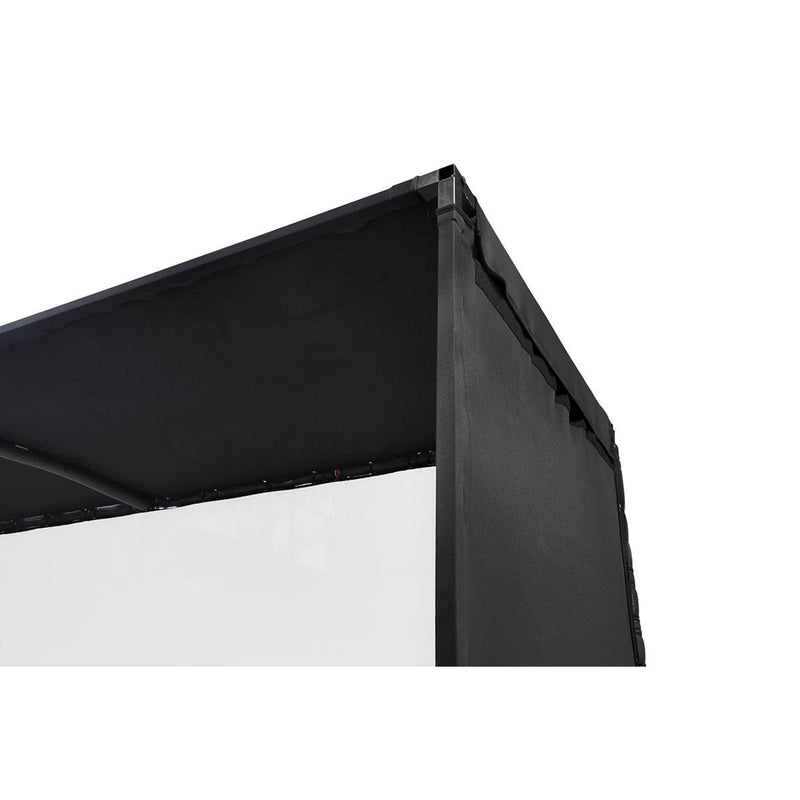

• Includes black enclosure cover panels for top and sides
• Black backing is also included to eliminate light loss and back reflection – Provides superior contrast and prevents picture degradation.

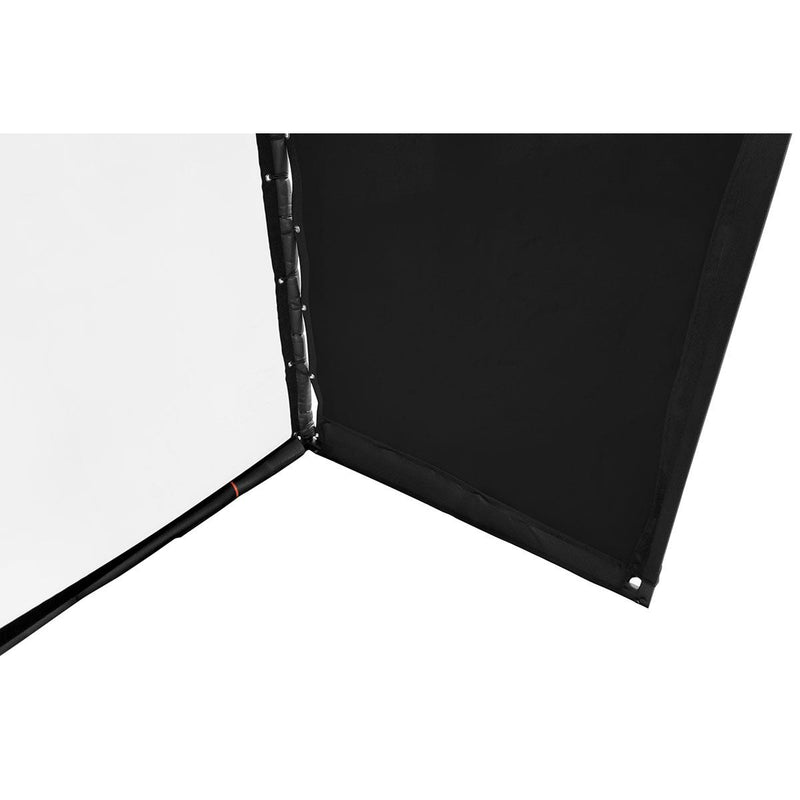

• Impact screen has metal ring grommets and attaches to frame using ball bungees to provide a flat and taut surface
• Easy installation without the hassle of acquiring your own EMT framing.

Quality and Reliability

• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations

ImpactWhite® 1145 Golf Impact Projection Material Commercial-grade warp knitted fabric resists indentations from golf impact and withstands golf ball speeds up to 200 mph 4.5 mm thick fabric is comprised of three-layers for maximum performance in shock absorption and endurance Internal spacer suppressed and dampens the noise generated when golf ball impacts screen	Full Golf Simulator Enclosure Complete set included for building golf simulator out of the box Includes black cover enclosures for sides and top, ball bungees, all metal frame tube pipes, and corner fittings Easy installation without the hassle of acquiring your own EMT framing	High-quality image presentations Wide viewing angle allows viewers to see a clear, bright, and uniform picture from any angle Black backing also included to go behind impact screen material to eliminate light reflection and light loss ImpactWhite® 1145 front projection material provides superior contrast in a controlled light room environment ISF Certified for accurate color reproduction

Dimensions Tables

• Dimensions Table (PDF)


User Guides

• User Guide (PDF)


Other

• Screen Material Care Sheet
• Product Cut Sheet
