Draper Acumen V 117" CinemaScope CineFlex White XT700V Projector Screen
Item #: Draper-154112CD
$5,195.00
Need Help? Chat With an Expert or Call 888-392-4814
Leaves Warehouse within 4-6 Weeks
Free Shipping

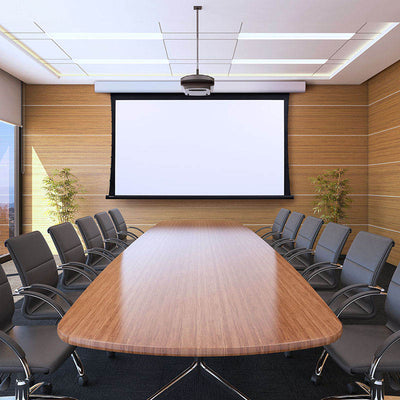

Designed for maximum flexibility, Acumen™ V features an attractive below the ceiling projection screen engineered to meet the demands of heavy use and still look nice in today’s interiors.

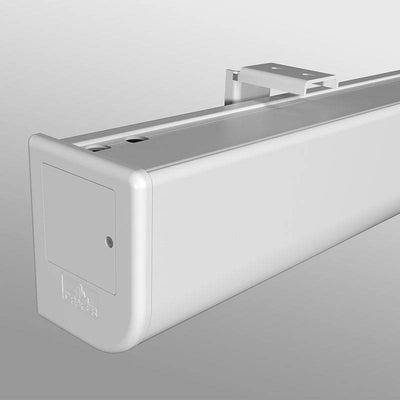

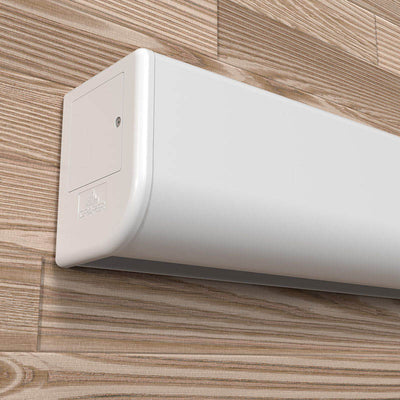

A smooth, curved aluminum housing and white powder coated finish complement any room design.
Floating wall brackets provide this wall- or ceiling-mounted electric screen quick and easy installation.
A tab-tensioned screen provides a perfectly flat viewing surface with better image quality.
RF welded tabs create a more durable seal that eliminates separation and stickiness. Fascia is easily removable if maintenance is required.
A wide variety of motor and control options including quiet and low voltage are available.
Product Specs
- Case dimensions: 7-1/8” h x 5-7/8” d (181 mm x 149 mm). Extruded aluminum housing with white powder coated or optional black finish.
- Maximum image width up to 10’ (305 cm) wide.
- Full line of Draper® viewing surfaces including TecVision® are available for the Acumen™ V.
- Rear projection surfaces available.
- RF welded tabs warranted against separation for five years.
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
- Streamlined extruded aluminum case finished in white powder coat (standard).
- Fascia removable for easy access to roller and motor for service.
- Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.
- Floating mounting brackets included. Ceiling brackets available.
- Custom sizes available.
- Seven-year warranty.
Projection Surface
CineFlex White XT700V
CineFlex White XT700V is a flexible, foldable, white rear projection viewing surface built for edge matching, edge blending, and short throw rear projection applications in environments where ambient light can be reasonably controlled.
Rear projection asks more of a surface than front projection does. The material has to transmit light rather than reflect it, resolve fine detail without scattering, and hold a consistent image across the full width of a multi-projector array so the seams between blended edges disappear. XT700V is a flexible PVC diffusion surface engineered for exactly that work: 0.7 gain in rear projection, an extra wide 180 degree viewing cone with typical contrast, and 4K ready resolving power. Because it folds without creasing permanently, the same surface can be specified on folding, fixed, or roller operated screens, and it can be pressed into service as a dual or low gain front projection surface at 0.5 gain when an application calls for it. Clean with mild soap and water.
Surface Characteristics
- Engineered for edge matching and edge blending in multi-projector arrays
- Suited to short throw rear projection installations
- Extra wide 180 degree viewing cone with typical contrast
- 4K ready — delivers high resolution across the full image
- Foldable surface for folding, fixed, or roller operated screens
- Can be used as a dual or low gain front projection surface
Surface Material Properties
| Material Type | Flexible Rear |
| Peak Gain (Rear Projection) | 0.7 |
| Peak Gain (Front Projection) | 0.5 |
| Viewing Cone | 180 Degrees |
| Half Gain | N/A |
| Maximum Height Without Seams | 136" (345 cm) |
| Edge Blending Properties | Excellent |
| Material Composition | Flexible PVC |
| Thickness | 0.28 mm |
| Weight | 326 g/sm |
| Cleaning | Mild Soap and Water |
