Draper 144010U Ultimate Access XL/Series E 248 diag. (121.5x216) - HDTV [16:9] - Matt White XT1000E 1.0 Gain - [CUSTOM]

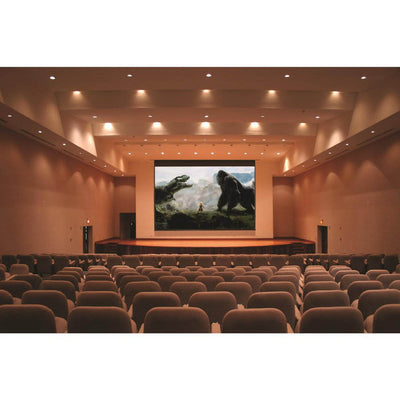

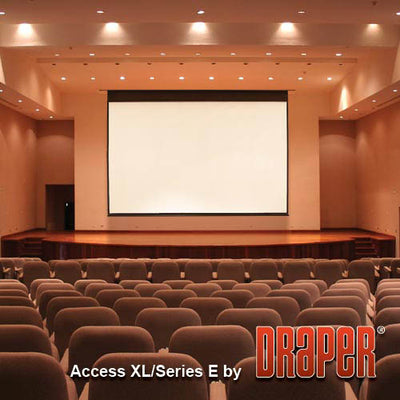

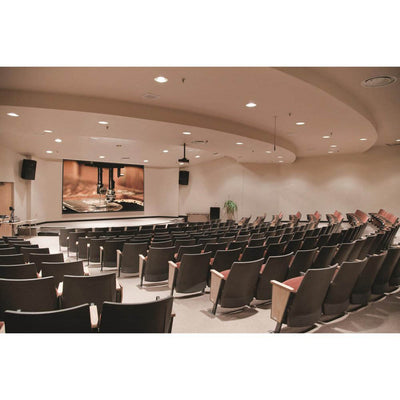

Major venues—conference centers, ballrooms, or university classrooms—benefit from the larger sizes available with the Access XL E electric projection screen. The fully automatic ceiling closure panel provides complete concealment when screen is retracted for a smooth, clean look. This free-hanging electric screen maintains flatness due to the weight of the screen and bottom dowel. The ceiling-recessed case can be installed during the initial construction phase, allowing the screen to be installed later to eliminate job site damage. A bottom access panel provides easier service and maintenance.

Product Specs

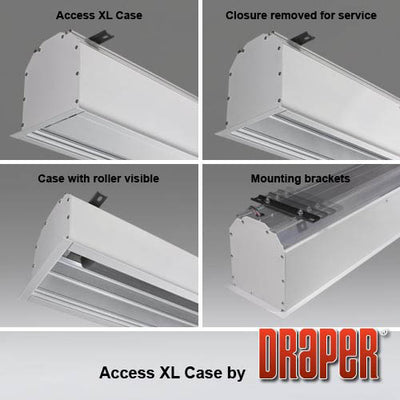

• Case dimensions are 14-1/16" high x 10-3/8" deep (36 cm x 26 cm), includes trim flange. White case standard, black available upon request.

• Built-in controls may increase case length. Mounting brackets may add to case dimensions.

• Maximum image width up to 22' (671 cm) wide, depending on surface selection.

• Sliding brackets on top of the case allow for adjustments for mounting. Sliding brackets inside case accommodate different size screens.

• Black drop standard, depending on screen size. Extra drop above image area available upon request.

• Independently motorized ceiling closure panel opens into the case.

• Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.

• Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available.

• Low voltage video interface or other controls can be built into the housing for below ceiling access.

• Custom sizes available.
