Da-Lite Parallax 28807V - 120" diag.(59x104.5) - [16:9] - Parallax Pure UST 0.6

Build a Bundle

Da-Lite Parallax 28807V - 120" diag.(59x104.5) - [16:9] - Parallax Pure UST 0.6

Item #: Dalite-28807V

Add to Compare

$3,518.40

Bundle It & Save The More You Buy, The More You Save

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 3-5 Business Days

Free Shipping

Overview

Da-Lite · Fixed Frame Projection Screen

Parallax

Front Projection · Parallax Pure UST 0.6 ALR Surface · Ultra Short Throw Projectors · Pro-Trim® frame

For Ultra Short Throw Projectors Only – Mount Below the Screen

This Parallax uses the Parallax Pure UST 0.6 ambient light rejecting (ALR) surface, made for ultra short throw (UST) projectors with a throw ratio of 0.4:1 or less. The UST projector must be mounted below the screen for the projected light to be reflected by the surface. It is not designed for standard-throw projectors; Da-Lite makes a separate Parallax Pure 0.8 surface for those. Frame: Pro-Trim® frame (black fabric-wrapped frame). This listing is a complete screen (frame, viewing surface and wall brackets).

Da-Lite Parallax fixed frame screen with projected image

Parallax is an ambient light rejecting technology with a micro-layered optical lens system that rejects light. It mimics the look of a television when it is on and when it is off, but without the glare from windows or lighting fixtures. With no speckle and no glare, the surface is ideal for Pro AV applications.

This model uses the Parallax Pure UST 0.6 surface (0.6 gain) for ultra short throw projectors (0.4:1 throw or less) and the Pro-Trim® frame (black fabric-wrapped frame).

Front Projection Ambient Light Rejecting (ALR) Ultra Short Throw (0.4:1 or less) Pro-Trim® frame (black fabric-wrapped frame) Wall Mount TAA Country of Origin: US

Highlights

Rejects Ambient Light

Micro layers block and absorb room light, preserving contrast and brightness without glare or speckle.

Ultra Short Throw Placement

Built for UST projectors with a 0.4:1 or shorter throw ratio. The projector must sit below the screen so its light is reflected by the surface.

Pro-Trim® Border

The 2.5" aluminum frame is covered in black Pro-Trim® fabric that absorbs light around the viewing area.

Key Features

Frame: Pro-Trim® frame (black fabric-wrapped frame)
Parallax Pure UST 0.6 surface for ultra short throw projectors (0.4:1 throw or less)
94% ambient light rejection, 0.6 gain (Da-Lite ALR brochure)
Horizontal half angle 80°, vertical half angle 55°
UST projector must be mounted below the screen
Less than 2% color shift; laser projection recommended (Da-Lite ALR brochure)
Micro layers that block and absorb light; glare and speckle-free
2.5" wide x 1.5" deep aluminum frame with a tapered front edge to reduce shadows on the surface
Frame pieces slip-join at the corners; ships unassembled and is easy to assemble

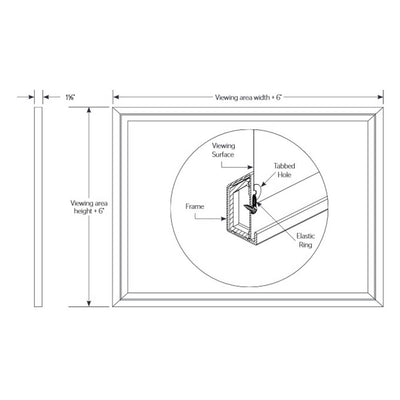

Flexible surface ships in a roll and attaches to the frame with elastic rings through reinforced tabbed holes on all four sides
Frame conceals the holes and rings for a clean border
Wall-mounting brackets included (installation screws not included)

Handling: ambient light rejecting surfaces are delicate. Unroll the surface evenly and keep it flat; do not fold, stretch or crease it. See the installation instructions for cleaning directions.

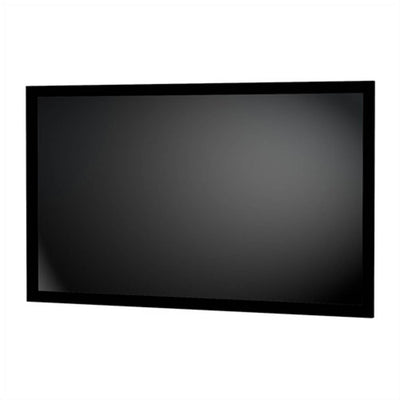

Da-Lite Parallax screen – Pro-Trim® frame (black fabric-wrapped frame) — Pro-Trim® frame (black fabric-wrapped frame)

Da-Lite Parallax screen showing a projected image — Parallax – projected image

Specifications

Dimensions

Screen Diagonal: 77–152 in (by size)
Screen Height: 37.5–59 in (by size)
Screen Format: HDTV 16:9 Wide 16:10 Ultrawide 21:9
Overall Size: Viewing area + 5 in (height and width)
Product Weight: 25–41 lbs (by size)

Frame & Mounting

Frame Finish: Pro-Trim® frame (black fabric-wrapped frame)
Frame Profile: 2.5 in wide x 1.5 in deep aluminum
Application: Wall (wall brackets)
Surface Attachment: Elastic rings
Included: Frame, viewing surface, wall brackets
Product Selection: Complete Screen

Surface & Certifications

Surface: Parallax Pure UST 0.6
Projector Throw: 0.4:1 or less (ultra short throw)
Projector Placement: UST projector mounted below the screen
Gain: 0.6
Viewing Angle: 80° horizontal / 55° vertical half angle
Surface Features: Ambient Light Rejecting (ALR), High Resolution
Projection Type: Front Projection
Warranty: 5 years
Country of Origin: US
Certifications: TAA

Downloads

Specification Sheet Product Information Sheet Installation Instructions Ambient Light Rejecting (ALR) Brochure Parts List Screen Maintenance Guide CAD Models

Projection Surface

Parallax Pure UST 0.6

Parallax® Pure UST 0.6 is a front projection screen surface designed for high resolution up to 16K available on the Parallax Thin Fixed Frame screens. Recommended for laser projectors with ultra-short throw lenses, its dark gray appearance enhances image color and contrast and is available in sizes up to 5' high seamless.
