Da-Lite Designer Contour Electrol 89758 - 106" diag.(52x92) - [16:9] - Matte White - 1.0

Da-Lite Designer Contour Electrol 89758 - 106" diag.(52x92) - [16:9] - Matte White - 1.0

Item #: Dalite-89758

Add to Compare

$980.00

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 5-10 Business Days

Free Shipping

Overview

Da-Lite · Wall or Ceiling Mounted Electric Screen

Designer Contour® Electrol®

Standard 120V Motor · Not Battery Operated

Power: Standard 120V Motor – Requires Electrical Power

This Designer Contour Electrol uses Da-Lite’s standard 120V (60Hz) motor. It is not battery operated and does not include the optional Agility™ Battery Motor. Looking for a wire-free screen? Shop Designer Contour with Agility™ Battery Motor.

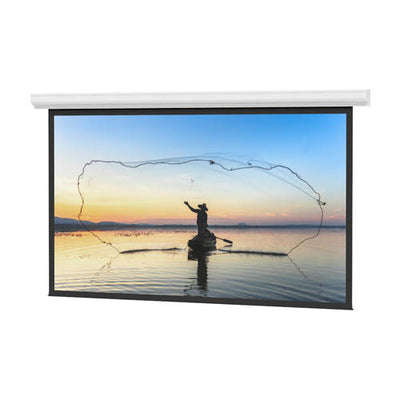

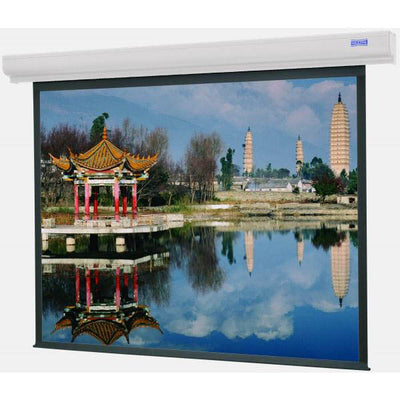

Da-Lite Designer Contour Electrol wall or ceiling mounted electric screen

The Designer Contour® Electrol® is the latest ceiling or wall-mounted electric screen offering simple installation with the benefit of a smaller housing.

A variety of finishes and options make this a seamless addition to any room.

Standard 120V Motor Wall or Ceiling Mount Smaller Housing TAA Compliant Country of Origin: US

Highlights

Smaller Housing

Smaller case size – 4 5/8” high x 4 3/32” deep.

Wall or Ceiling Mount

Ceiling or wall-mounted electric screen offering simple installation.

Control Options

Decora-style wall switch, with optional low-voltage control or integrated infrared remote.

Key Features

Smaller case size – 4 5/8” high x 4 3/32” deep
Decora-style, three-position wall switch
Standard black backing retains projected brightness
Seamless surfaces
Optional low-voltage control
Optional Integrated Infrared Remote (includes 10’ power cord controlled by a three-button wireless infrared remote transmitter and low-voltage Decora-style, three-button wall switch)
Standard white powder-coated aluminum finish; available in black upon request
Standard 120V (60Hz) motor; 220V (50Hz) available for export

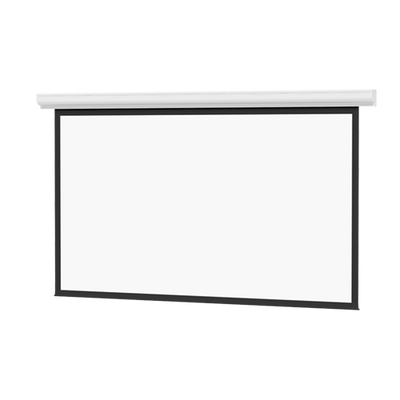

Designer Contour Electrol screen lowered — Screen lowered

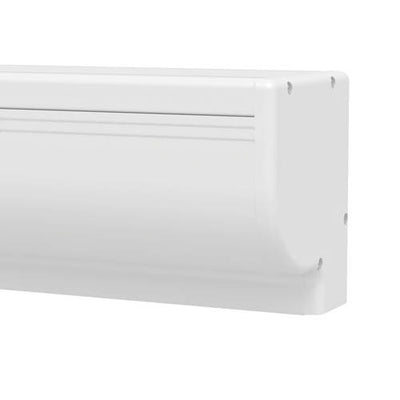

Designer Contour white case — Standard white case

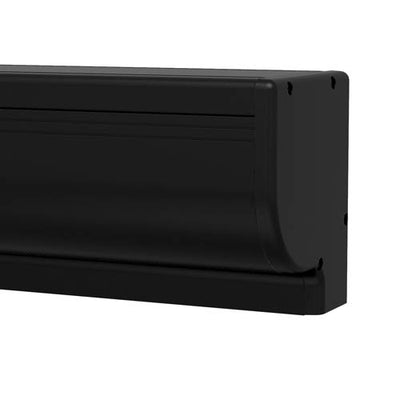

Designer Contour black case — Black case available upon request

Specifications

Dimensions

Screen Diagonal: 72–136 in (182.88–345.44 cm)
Screen Height: 37.5–96 in (95.25–243.84 cm)
Case Size: 4 5/8” high x 4 3/32” deep
Screen Format: HDTV 16:9Wide 16:10Video 4:3 Square

Power & Control

Motor: Standard 120V (60Hz); 220V (50Hz) for Export
Battery Motor: Not included – not battery operated
Built-In Control: None, or Low Voltage Control (by model)
Application: Wall or Ceiling
Screen Type: Electric

Surfaces & Certifications

Surfaces: Matte White High Contrast Matte White
Projection Type: Front Projection
Surface Features: Standard Resolution
Country of Origin: US
TAA Compliant: Yes

Compatible Accessories

Da-Lite Single Motor Low Voltage Control System

Single Motor Low Voltage Control SystemPart # 40973Shop Now → Da-Lite Low Voltage Wall Switch

Low Voltage Wall SwitchPart # 40975Shop Now → Da-Lite Replacement Wall Switch (110V)

Replacement Wall Switch (110V)Part # 80575Shop Now → Da-Lite Screen Controller

Screen ControllerPart # DL15316Shop Now → Da-Lite Locking Switch Cover Plate

Locking Switch Cover PlatePart # 98837Shop Now →

Downloads

Specification Sheet Product Information Sheet Installation Instructions Screen Maintenance Guide BIM Models BIM Models (With Integrated IR)

Projection Surface

Matte White

Matte White is a fiberglass surface for non high-definition projection and environments with controllable ambient light that preserves color as well as black and white images. Seamless sizes vary by product.
