Da-Lite Designer Contour - Agility 14427 - 92" diag.(45x80) - [16:9] - Matte White - 1.0

Da-Lite Designer Contour - Agility 14427 - 92" diag.(45x80) - [16:9] - Matte White - 1.0

Item #: Dalite-14427

Add to Compare

$1,360.00

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 5-10 Business Days

Free Shipping

Overview

Da-Lite · Wall or Ceiling Mounted Electric Screen

Designer Contour® with Agility™ Battery Motor

Battery Operated · Wire-Free Installation

Power: Agility™ Battery Motor (Lithium-Ion) – No Wiring Required

This Designer Contour is battery operated. The lithium-ion battery lasts over 200 cycles on a single charge via USB-C port, with wireless handheld remote operation. Need a hard-wired screen instead? Shop Designer Contour Electrol with standard 120V motor.

Da-Lite Designer Contour with Agility battery motor electric screen

The Designer Contour® Electrol® is the latest ceiling or wall-mounted electric screen offering simple installation with the benefit of a smaller housing. With all the benefits of an electric screen but the flexibility of wire-free installation, there’s an alternative for challenging wired screen installations.

The Agility™ Battery Motor, available in diagonals up to 110” in 16:9 HDTV format and 113” in 16:10 Wide format, is ideal for no-fuss installations or where flexibility is required to retrofit historic buildings or environments when wiring electricity becomes project prohibitive.

Realize cost savings immediately as it’s operational out of the box – requiring no wiring or electrician.

Battery Operated Wire-Free Installation Wireless Remote Wall or Ceiling Mount TAA Compliant Country of Origin: US

Highlights

Wire-Free Installation

Operational out of the box – requiring no wiring or electrician.

200+ Cycles Per Charge

Lithium-ion battery lasts over 200 cycles on a single charge via USB-C port.

Wireless Control

Wireless handheld remote operation, with optional Wi-Fi bridge for mobile app control.

Key Features

Agility™ Battery Motor (lithium-ion)
Battery lasts over 200 cycles on a single charge via USB-C port
Wireless handheld remote operation
Operational out of the box – requiring no wiring or electrician
Wi-Fi bridge accessory allows for wireless connection to a mobile app where the screen can be controlled up and down as well as battery life indication
Wi-Fi bridge also allows for control through a third-party device
PoE 5V USB-C adapter accessory keeps the battery charged between uses – connect when needed, or leave connected for maintenance free operation

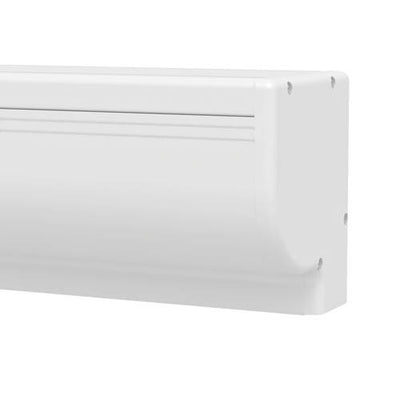

Smaller case size – 4 5/8” high x 4 3/32” deep
Standard black backing retains projected brightness
Standard white powder-coated aluminum finish; available in black upon request

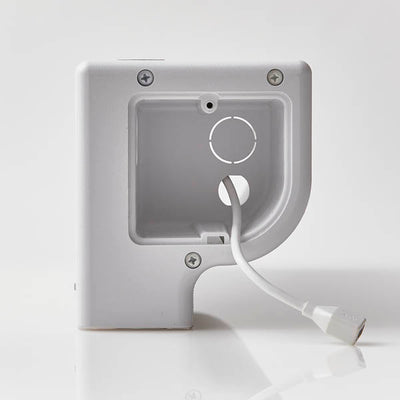

Agility battery motor USB-C charging port — USB-C charging port

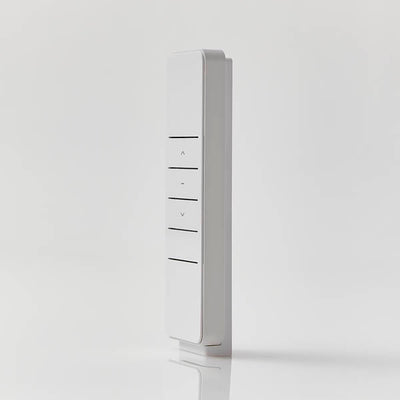

Agility wireless handheld remote — Wireless handheld remote

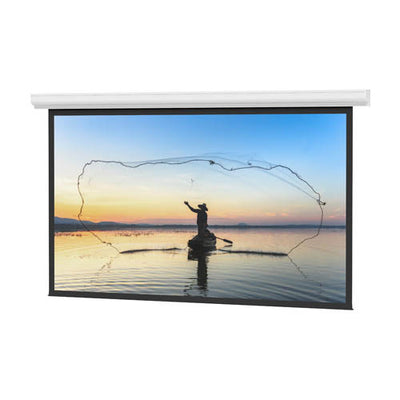

Designer Contour screen lowered — Screen lowered

Specifications

Dimensions

Available Sizes: Up to 110 in diagonal (16:9) and up to 113 in diagonal (16:10)
Case Size: 4 5/8” high x 4 3/32” deep
Screen Format: HDTV 16:9 Wide 16:10

Power & Control

Motor: Agility™ Battery Motor (Lithium-Ion)
Built-In Control: Battery
Battery Life: Over 200 cycles on a single charge
Charging: USB-C port
Operation: Wireless handheld remote
Application: Wall or Ceiling

Surfaces & Certifications

Surfaces: Matte White High Contrast Matte White
Projection Type: Front Projection
Screen Type: Electric
Country of Origin: US
TAA Compliant: Yes

Compatible Accessories

WiFi BridgePart # 14701Shop Now →

Downloads

Specification Sheet Product Information Sheet Installation Instructions Screen Maintenance Guide BIM Models

Projection Surface

Matte White

Matte White is a fiberglass surface for non high-definition projection and environments with controllable ambient light that preserves color as well as black and white images. Seamless sizes vary by product.
