Da-Lite Da-Snap 78693 - 119" diag.(58x104) - [16:9] - Da-Mat - 1.0
Item #: Dalite-78693
$1,668.80
Need Help? Chat With an Expert or Call 888-392-4814
Leaves Warehouse within 3-5 Business Days
Free Shipping
Overview
Da-Lite · Fixed Frame Projection Screen
Da-Snap
Front Projection · White Da-Mat Surface · Standard black frame (part numbers without V)
Front Projection – White Da-Mat Surface
This Da-Snap is a front projection screen: the projector sits on the audience side of the screen. Its white Da-Mat® viewing surface comes standard with black backing. Frame: Standard black frame (part numbers without V). This listing is a complete screen (frame, viewing surface and wall brackets).
The Da-Snap fixed frame projection screen can be mounted on the wall or in a wall opening. Its viewing surface attaches to the back of a 1.5" square aluminum tubing frame with snaps, giving a perfectly flat viewing surface for video projection applications.
This model uses the white Da-Mat® front projection surface (gain 1.0) and the Standard black frame (part numbers without V).
Highlights
Wall or Wall-Opening Mount
Mount the Da-Snap flat on the wall or set it into a wall opening using the included wall brackets.
Snap-On Surface
The viewing surface snaps onto the back of the frame, providing a perfectly flat viewing surface.
Black Masking Border

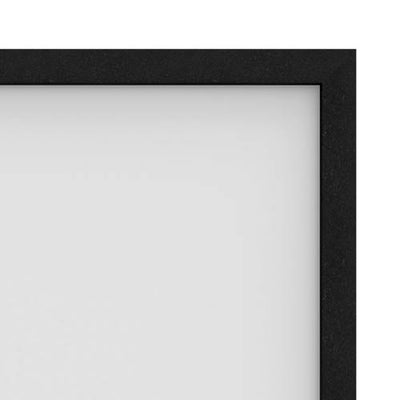

The matte black powder-coated frame provides a clean masking border around the image.
Key Features
- Frame: Standard black frame (part numbers without V)
- 1.5" square, matte black powder-coated aluminum tubing frame with ribbed walls for strength and light weight
- Frame pieces slip-join at the corners for on-site assembly
- Viewing surface has reinforced black binding on all four sides and attaches to the frame with metal snaps
- Frame conceals the snaps and binding, creating a clean masking border
- Flexible viewing surface is fire retardant and mildew resistant
- Wall-mounting brackets included (wall fasteners not included)
- Da-Mat® white front projection surface, gain 1.0, standard resolution
- Front projection surface standard with black backing to retain projected brightness
- Seamless Da-Mat® surface up to 16' high
Specifications
Dimensions
- Screen Diagonal
- 77–226 in (by size)
- Screen Height
- 37.5–120 in (by size)
- Screen Format
- Frame Tubing
- 1.5 in square aluminum
Frame & Mounting
- Frame Finish
- Standard black frame (part numbers without V)
- Application
- Wall (on the wall or in a wall opening)
- Surface Attachment
- Metal snaps
- Included
- Frame, viewing surface, wall brackets
- Product Selection
- Complete Screen
Surface & Certifications
- Surface
- Gain
- 1.0
- Resolution
- Standard resolution
- Projection Type
- Front Projection
- Country of Origin
- US
- Certifications
- TAA
Downloads
Projection Surface
Da-Mat
Da-Mat is a unity gain vinyl surface with a smoother surface than Matte White.
It features a white surface for good color reproduction for environments with controllable ambient light.
Seamless in any width up to 16' in height.
Surface Characteristics
- Works Best with Controllable Ambient Lighting Conditions
- Front Projection Material
- Washable and Mildew Resistant
- Flame Retardant
- Greenguard™ Certified
Surface Material Properties
| Maximum Size | 16' Height Seamless |
| Peak Gain | 1.0 |
| Half Gain | 60 Degrees |
| Front / Rear Projection | Front |
| Flame Resistance | Yes |
Specs
Item #: Dalite-78693
Manufacturer Part #: 78693
