Da-Lite Advantage Deluxe Electrol Tensioned 39150 - 133" diag.(65x116) - [16:9] - HD Progressive 1.0

Build a Bundle

Da-Lite Advantage Deluxe Electrol Tensioned 39150 - 133" diag.(65x116) - [16:9] - HD Progressive 1.0

Item #: Dalite-39150

Add to Compare

$8,700.80

Bundle It & Save The More You Buy, The More You Save

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 3-5 Business Days

Free Shipping

Overview

Da-Lite · Ceiling Recessed Electric Screen

Tensioned Advantage® (With Closure Door)

Formerly named Tensioned Advantage Deluxe Electrol · Up to 14′ wide

The Tensioned Advantage® ceiling recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed.

Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage.

Sliding installation brackets allow mounting flexibility for easy attachment of the screen housing to the structure above the drop ceiling.

Tensioned Automatic Closure Door Ceiling Recessed UL Plenum Rated TAA Compliant Country of Origin: US

Highlights

Trim Already in Place

Ceiling trim conceals the rough opening – no additional trim work once the screen is installed.

Two-Stage Installation

Install the case during rough-in construction and the surface assembly during the finishing stage.

TruGuide™ Tensioning

Electric screen tensioning system provides optimal viewing surface smoothness.

Key Features

Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexibility
UL Plenum rated case
White powder-coated case for a clean aesthetic
Decora-style, three-button wall switch
All sizes standard with 12” of black drop except for Parallax Pure which is standard with 2”
Smooth Roll Technology to keep your screen perfectly flat
TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness
Standard black backing retains projected brightness on front projection surfaces
Seamless surfaces in all models
Sliding installation brackets for easy attachment above the drop ceiling

Note: The Tensioned Advantage Series with Parallax Pure will look visibly different when compared to Da-Lite vinyl screen surfaces due to the unique micro-layered, high-grade lens system of Parallax Pure. While it may exhibit slight waves, it is optically flat under projection, and the waves will not be visible.

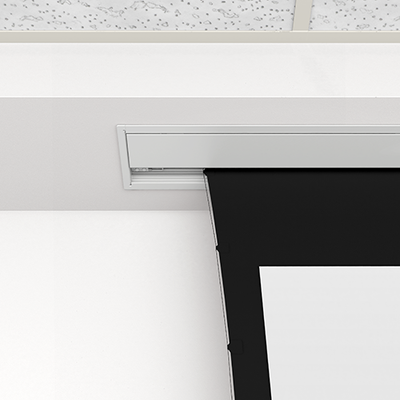

Tensioned Advantage installed in ceiling — Recessed in the ceiling

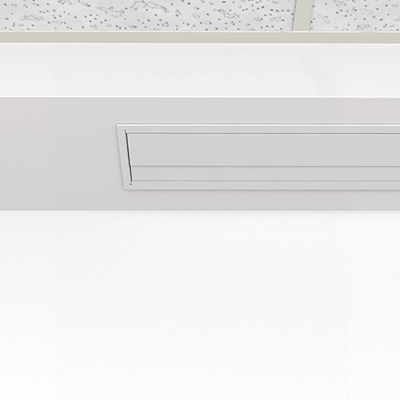

Tensioned Advantage case and trim — Ceiling trim in place

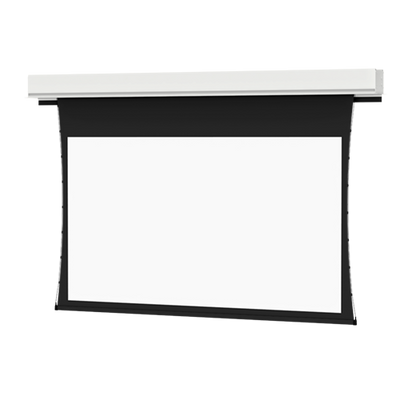

Tensioned Advantage screen lowered — Screen lowered

Specifications

Dimensions

Screen Diagonal: 72–210 in (182.88–533.4 cm)
Screen Height: 40.5–126 in (102.87–320.04 cm)
Screen Format: HDTV 16:9Ultrawide 21:9Video 4:3Wide 16:10

Characteristics

Application: Ceiling Recessed
Screen Type: Electric, Tensioned
Built-In Control: Standard Low Voltage Control
Closure Door: Automatic Closure Door
Motor: Standard 120V (60Hz); 220V (50Hz) for Export
Drop Type: Standard Black Drop
Projection Type: Front Projection, Rear Projection

Surfaces & Certifications

Surfaces: Da-MatDa-TexHD Progressive 1.0HD Progressive 1.0 PerfHD Progressive 1.1 ContrastHD Progressive 1.3HD Progressive ReView 0.9Parallax Pure 0.8Parallax Stratos 1.0
Surface Features: Acoustically Transparent, Ambient Light Rejecting (ALR), High Resolution, Standard Resolution
Country of Origin: US
TAA Compliant: Yes

Compatible Accessories

Screen ControllerPart # DL15316Shop Now → Da-Lite Low Voltage Wall Switch

Low Voltage Wall SwitchPart # 40975Shop Now → Da-Lite Locking Switch Cover Plate

Locking Switch Cover PlatePart # 98837Shop Now →

Downloads

Specification Sheet Product Information Sheet Installation Instructions Parts List Screen Maintenance Guide 21:9 Ultrawide Portfolio Brochure CAD Models BIM Models

Projection Surface

HD Progressive 1.0

HD Progressive 1.0 is a front projection screen surface designed for high resolution up to 16K. This premium surface is ideal for projects with edge blending and small and large venue projection needs and is GREENGUARD and GREENGUARD Gold certified to meet and exceed stringent standards for indoor air quality.

Surface Characteristics

Recommended for laser projectors with ultra-short, short, and standard throw lenses
Pure white appearance provides brilliant image color
GREENGUARD and GREENGUARD Gold certified
