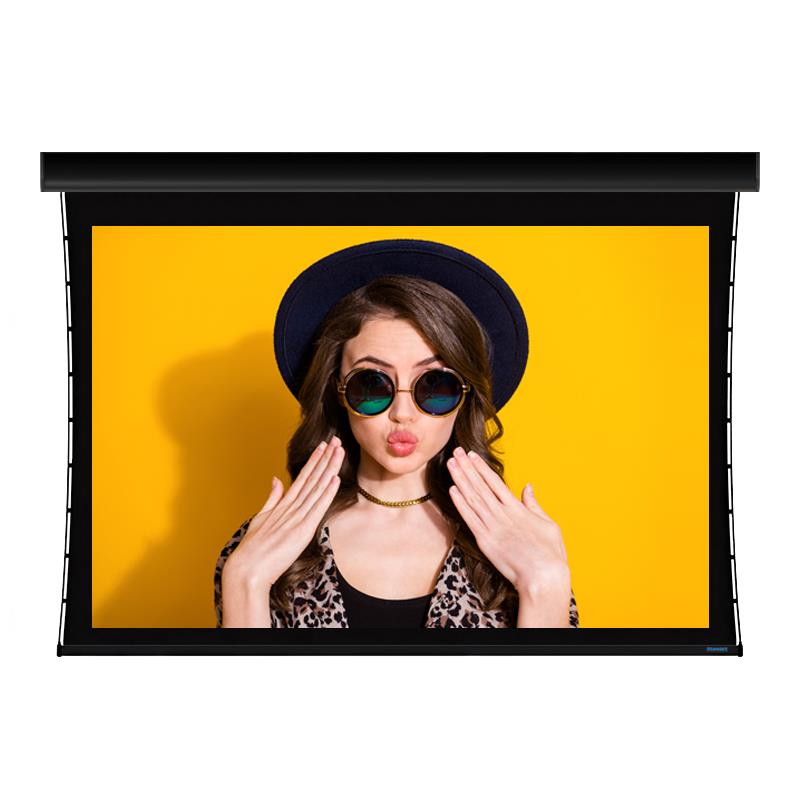

Stewart Luxus LUXG2165HUM13SBMB Electric - 165" (81x144) - HDTV [16:9] - 1.3 Gain - [CUSTOM]

$100 Cart Discount

Stewart Luxus LUXG2165HUM13SBMB Electric - 165" (81x144) - HDTV [16:9] - 1.3 Gain - [CUSTOM]

Item #: Stewart-LUXG2165HUM13SBMB

Add to Compare

$11,422.56

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 2-3 Weeks

Free Shipping

Overview

Stewart Filmscreen · Since 1947

Luxus G2

A compact, below-ceiling retractable screen that brings Stewart’s 16K+ optical materials to rooms that do more than one thing. Press a button and a reference-grade image descends; press it again and the room is yours.

Scaling up to 209″ diagonal in 16:9 with a 12″ black drop, Luxus G2 combines a slimmer case, a sliding mounting bracket and a fully integrated control system — a well-proven screen with a time-tested following.

“More style. More convenience. More affordable.”

209″Max 16:9 diagonal

15′ 2″Max image width

IMC 100Integrated control

USATorrance, California

Built to Impress

A compact case with a refined finish

The Luxus G2 case is ¾″ smaller in circumference than before, and its sliding mounting bracket runs along both the top and back of the case, so the screen can be centered perfectly on a wall or ceiling. End caps come standard in black or white to match the case, or choose optional hand-polished brushed aluminum end caps for a new level of sophistication.

¾″ smaller case circumference
Sliding bracket for wall or ceiling mounting
Optional hand-polished brushed aluminum end caps

Intelligent Motor Control

One controller that speaks every language

The Intelligent Motor Control (IMC) 100 is a highly reliable, multi-platform controller fully hidden inside the screen case. It speaks IR, Serial, RF, IP, Trigger and Dry Contact, so Luxus G2 fits naturally into any control system — and a removable case bonnet makes the screen, motor and controller easy to access.

IR, Serial, RF, IP, 12V Trigger and Dry Contact
Fully hidden inside the case
Removable bonnet for easy service access

Stewart IMC 100 Intelligent Motor Control board

Plug and Play

Connections right where you need them

Power and control outputs are accessed directly from the back of the case. The Smart Port provides IR and Serial connectivity, alongside a 12V trigger and dry contact, for a clean, integrator-friendly installation.

Smart Port for IR and Serial
12V trigger and dry contact inputs
Rear-of-case access

Stewart Luxus G2 rear Smart Port, 12V trigger and dry contact connections

Screen Materials

Choose your Stewart screen material

Select a material to shop Luxus G2 built with it. Each is available with a black or white case.

StudioTek 130 G4→StudioTek 130 G4 Perf→StudioTek 100→StudioTek 100 Perf→FireHawk G5→FireHawk G5 Perf→FireHawk LS→GrayMatte 70→UltraMatte 130→SnoMatte 100→

Compare Stewart Retractable Screens

Find the retractable for your room

Three ways to make a Stewart image disappear when the show is over — each motorized and built for Stewart’s 16K+ materials.

You’re viewing Stewart Luxus G2 case and end cap

Luxus G2

Compact case, below the ceiling

Mounting: Wall or ceiling
Max image: 182″ × 102¼″
Best for: Multipurpose rooms

You're viewing this screen

Cascade G2

Recessed into the ceiling

Mounting: Above ceiling, plenum rated
Max image: 179″ × 100¾″
Best for: Out-of-sight installs

Explore Cascade G2

Cabaret

A designer statement case

Case finish: Hand-rubbed automotive lacquer
Max image: 140″ × 78¾″
Best for: Showpiece living spaces

Explore Cabaret

The Stewart Difference

The screen Hollywood trusts

For more than 75 years, Stewart Filmscreen has been the premier manufacturer of professional projection screens — the preferred choice of major movie studios, leading integrators, consultants and discerning home theater enthusiasts in more than 150 countries.

Academy Award® Winning

Stewart is the only projection screen manufacturer honored with two Academy Awards for scientific and technical achievement.

16K+ Optical Materials

Stewart screen materials are engineered with up to 13 optical layers to resolve 16K+ detail, with ISF and THX certifications behind them.

Made in the USA

Built at Stewart’s 4-acre factory in Torrance, California, to last — in most cases — for the lifetime of the building it’s installed in.

Installation

Wall or ceiling, perfectly centered

Luxus G2 ships with two 18″ mounting brackets that slide along the case’s integrated top and back rails, so the screen installs on a wall or a ceiling and centers precisely where you want it. A 10-foot power cord is included.

Venue-specific fabrics: plenty of manufacturers make a small wall-mounted retractable screen, but none can furnish it in one of Stewart’s application-driven 16K+ front or rear projection materials.

At a Glance

Luxus G2 series specifications

Screen Type

Motorized retractable, below ceiling

Mounting

Wall or ceiling, two 18″ sliding brackets

Case Colors

Black or white

End Caps

Black or white standard; brushed aluminum optional

Black Drop

12″ top black drop

Series Size Range

Up to 102¼″ image height and 182″ image width

Control

Integrated IMC 100: IR, Serial, RF, IP, 12V Trigger, Dry Contact

Connections

Rear Smart Port (IR, RS-232), 12V trigger, dry contact

Manufactured

Torrance, California, USA

Size, aspect ratio and screen material for this model are listed in the Specs section below.

Applications

Chosen for the rooms that matter most

Residential

Corporate

Education

Gaming & Virtual Reality

The ProjectorScreen.com Experience

Expert guidance for a reference-grade screen

A Stewart screen is built to your room. Our own team will help you choose the right size, aspect ratio and material, and we stay with you long after the screen is on the wall.
