Screen Innovations Zero-G Levitating Projection Screen

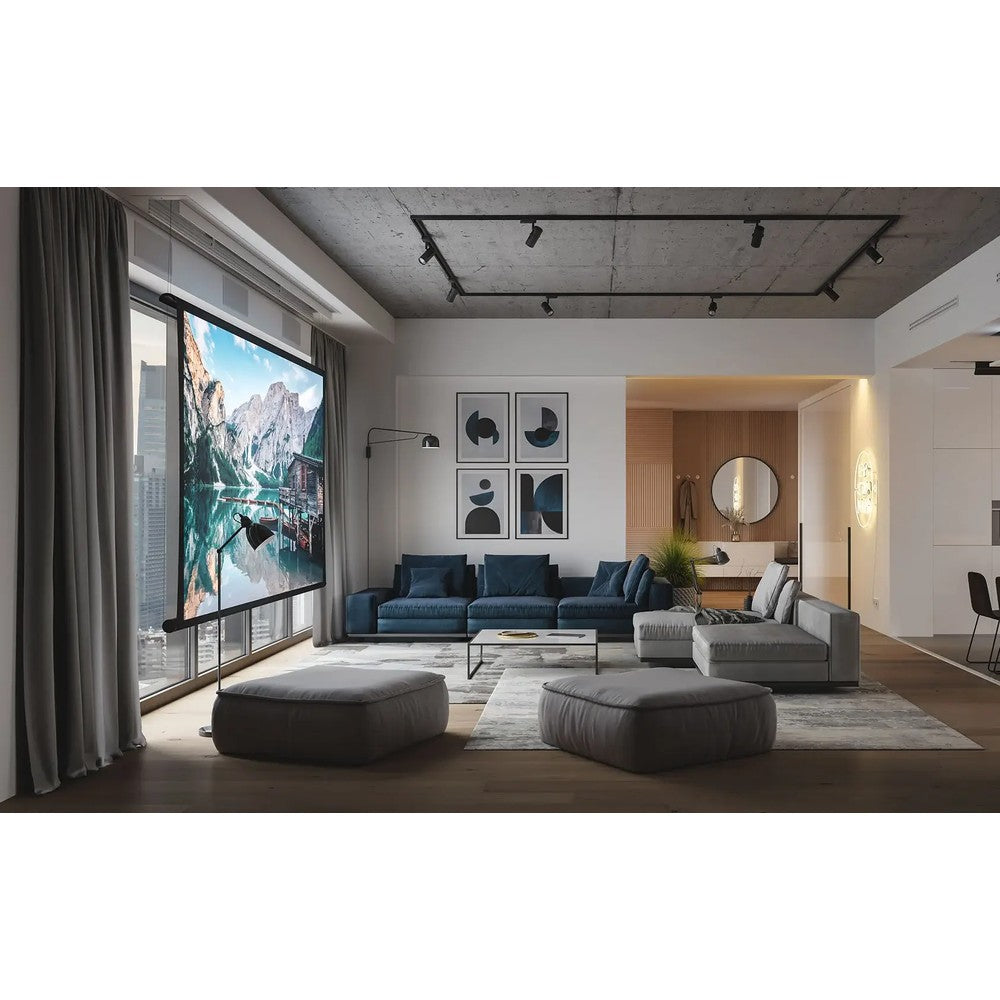

Screen Innovations Living room with Zero-G

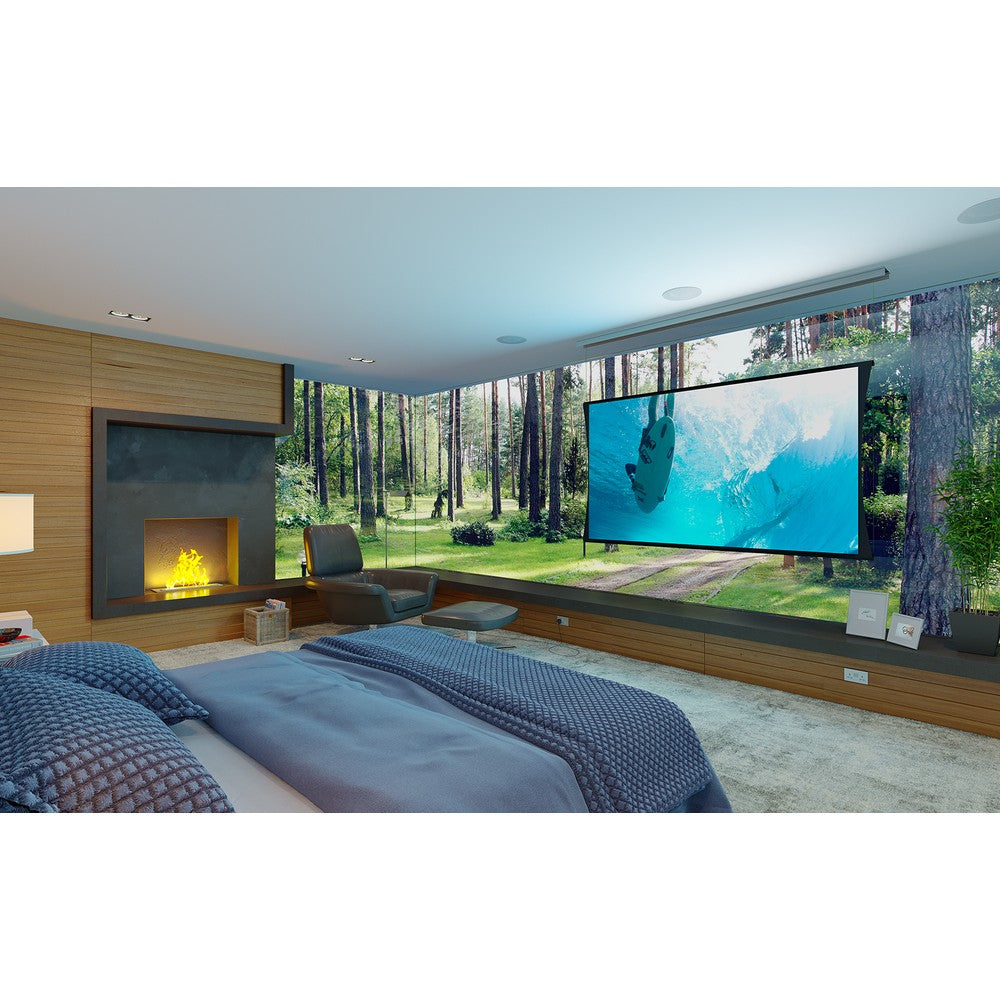

Screen Innovations Zero-G Bedroom Projection Screen

Build a Bundle

$100 Cart Discount

Screen Innovations Zero-G Motorized Flush - 100" (49x87) - 16:9 - 360 - 5TGFL100TS

Item #: SI-5TGFL100TS

Add to Compare

$9,035.00

Bundle It & Save The More You Buy, The More You Save

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 4-6 Weeks

Free Shipping

Overview

Screen Innovations

Zero-G^®

The way a motorized projection screen should be.

Levitating Motorized Screen

Think Rollable Television®. Zero-G re-imagines standard motorized screens and deploys a “levitating” image exactly where you want it.

Take Back Your Room

You paid for your view. Don’t re-arrange your room just so you can see the TV. Zero-G can be placed exactly where you want it, not where it has to.

Where Flat-Panel Can’t Go

Designed to give the television experience but at a much larger scale, Zero-G can be deployed in places where a rigid TV cannot.

Simple Design

Zero-G is simple and smooth with features such as removable PCB and lift tubes, pre-programmed doors (flush unit only), and automatic upper limits.

Specifications

Motor

Somfy® RS485 Motor

Sizes

Min: 80” (2032mm)

Max: 160” (4064mm)

Aspect Ratios

16:9

16:10

2.35:1

Cord Colors

White | Black

Installation | Adjustment

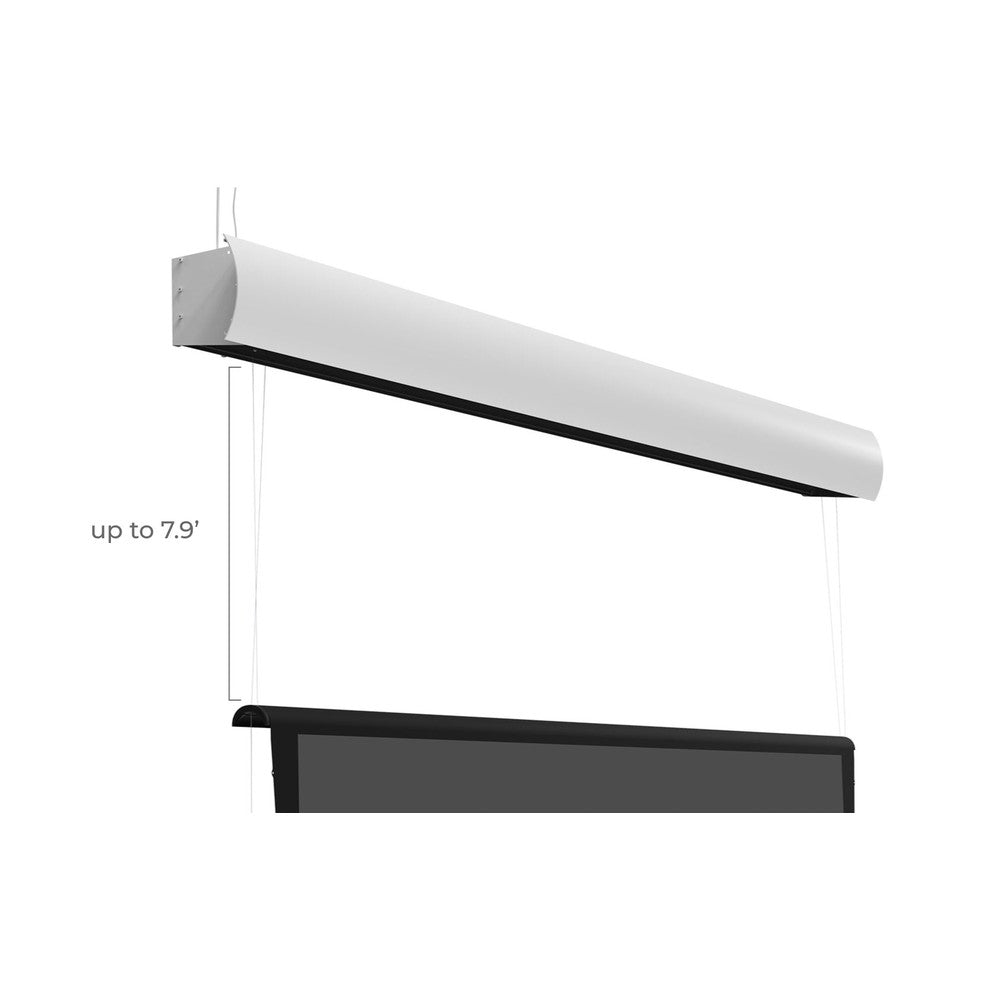

Maximum drop of 7.9′ depending on screen size.
Material roll pre-installed from the factory.**
Removable upper motor lift tube with single pin release.
PCB is slide removable from the case.
Flush doors are pre-programmed from the factory.
Automatic upper limit by optical sensor.

Case Specifications

Flush or external configuration.
Black or white color options for external case.
Top side recessed electrical control cable access.
Optional separated shipping for case and material roll/motor assembly.
Safety clips on external fascia.

The Zero-G has transitioned from DCT motors to RS485 motors. Available in standard sizes only. All dimensions are listed as seamless. Screen materials may expand and contract slightly over time. SI allows a 1.5% tolerance within the viewing surface. ** Applies only if case and material roll/motor assembly are shipped together (optional).

Available Materials

Material	Gain	ALR	Acoustic
Slate 1.2	1.2	65%	No
Pure White	1.3	10%	No
Pure Gray	0.85	15%	No
360	0.85	15%	No

Compatible accessories: Moab, Fontus, SI IR Remote, DCT Wall Switch, Spike Kit.

Videos

Supporting Documentation

PDF

Flush Spec Sheet249.0 KB

PDF

External Spec Sheet223.2 KB

PDF

Brochure799.4 KB

ZIP

All Drawings – Standard Sizes7.3 MB

Projection Surface

360

Front and back viewing

Sometimes your environment calls for rear projection and sometimes, front projection. Sometimes, however, you want both. 360 is a fantastic screen material for rear-projection purposes but is also capable of producing a nearly identical image on the opposite side, regardless of projector location.

Ultra-wide viewing angle

360 utilizes an incredibly smooth diffusion layer within the viewing surface, which allows the projected light to be perfectly distributed in all directions. This perfect distribution creates an incredibly wide viewing cone, enabling extreme off-axis viewing.

Two screens for the price of one

Save your money! The dual-sided viewing capability of 360 means that with a single projector and a 360 screen, you can do what used to take two projectors and two screens. Hang a screen over your restaurant or bar and guests on both sides can enjoy the same picture.

Surface Characteristics

Minimal Ambient Light Rejection - Rejects 15% of Ambient Light
BOTH Front and Rear Projection Material (image reversed on one side)
Flame Resistant

Surface Material Properties

Maximum Size	200" Diagonal
Peak Gain	0.85
Half Gain	80 Degrees
Ambient Light Rejection Value	15%
Front / Rear Projection	Both
Resolution	up to 4K
Minimum Throw	0.2 x width
