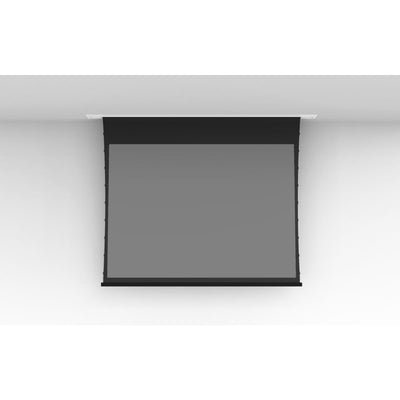

Screen Innovations Solo 3 Indoor - 100" (53x85) - 16:10 - 360 - S3WF100TS
Item #: SI-S3WF100TS
$5,408.00
Need Help? Chat With an Expert or Call 888-392-4814
Leaves Warehouse within 2-3 Weeks
Free Shipping
Overview
Screen Innovations
Solo 3 Indoor
The future of screens, made modern.
- Flush Mount
- Projector Central – Best of Show 2022

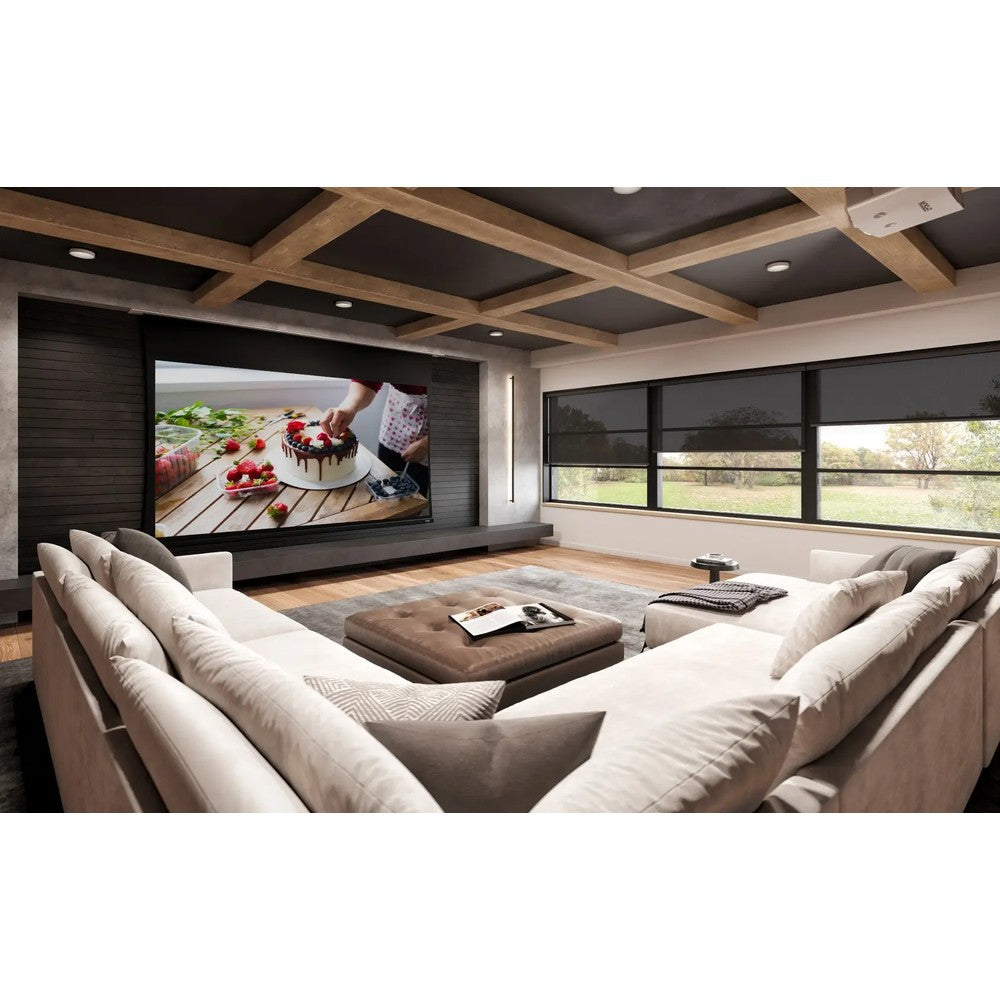

Big Dreams, Made Reality
Dream up your perfect home theater, then think bigger! Solo 3’s patent pending design pushes projector screens to the limit of class and functionality.

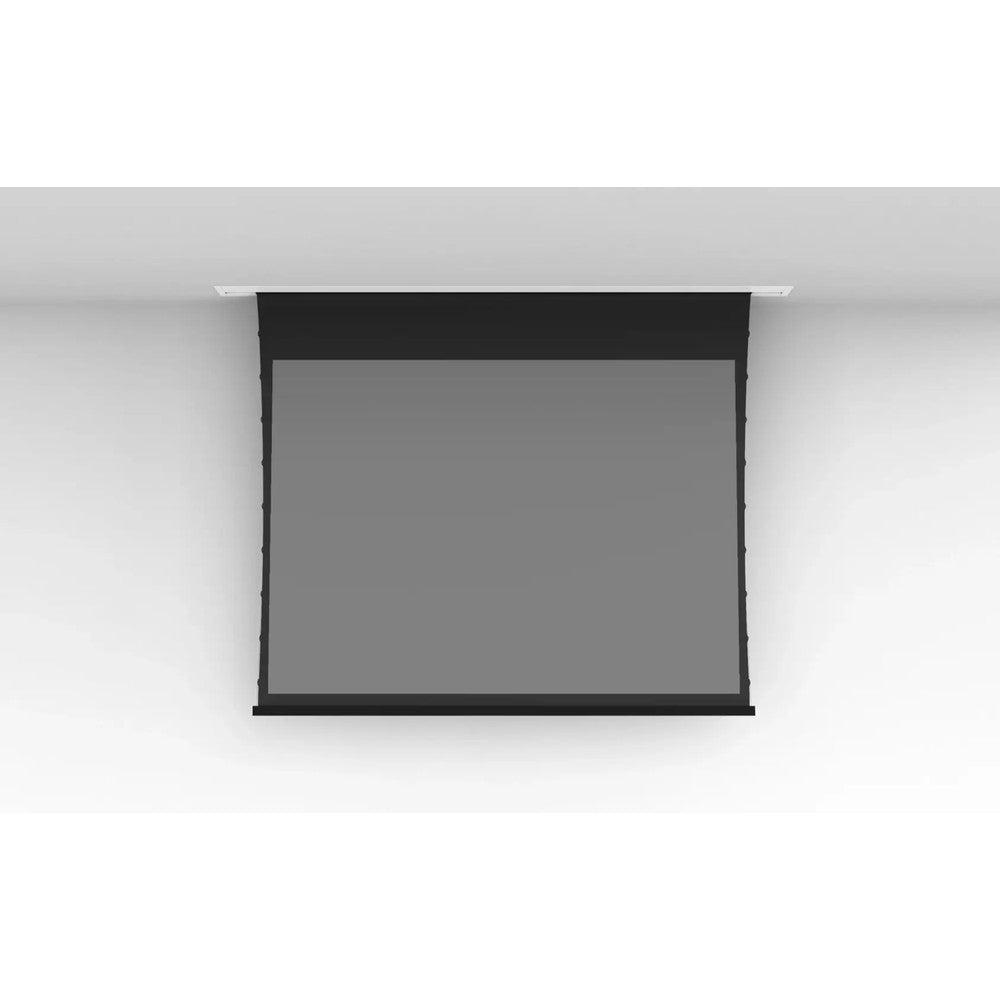

Flush or External Mount
Choose to hide away or display your screen with our different mounting options.
Flown Mounting Option
Levitate your Solo 3 at any level!
Wired or Wireless
Stay connected with our low voltage and AC for customizable wired or patented wireless power choices.
- Lithium Rechargeable
- DC – Low Voltage
- AC
Control Options
All Control options included, powered by Moab control board.
CNC Tab Tension
Guaranteed flat image for the life of the product.
Clean, Modern Design
Timeless and classic, our crisp design compliments any modern décor.
Specifications
Sizes
375: Max diagonal 110” (external mount only)
575: Max diagonal 160”
675: Max diagonal 200”
Ratios
16:9
16:10
2.35:1
Colors
External – Available in White and Black color options
Flush – Available in White
Compatible Power Sources
Configurable in 3 available motor types:
- Lithium Rechargeable – RTS (available in 375)
- 24v DC – 485
- 110v AC* – 485
- *220v AC available for international
Power
- Low voltage power with operating voltage class 2, 24–28v DC
- Power supply features include over/under-voltage, over/under current, and thermal protection for all devices in the system when used with (optional) Janus
- Electrostatic-isolated and galvanic isolation when used with (optional) Janus
- Power must be derived from a Screen Innovations-supplied power source for all low voltage and charging
Control Options
- Contact closure (optional for RTS)
- 12v trigger (optional for RTS)
- Built-in Infrared (optional for RTS)
- RF Remote (optional for 485)
- RS/RF-485 Keypad
- IP Control options (via TRO.Y/ LinkPro Z)
- Native C4 options (via C4MI)
Systems We Integrate With
SOLO 3 – 485 screens – AMX, BCP, Control4, Crestron SIMPL, Crestron Home*, Dry Contact Closures, Elan, IP*, IR, Lutron, Loxone, RS-232*, RS-485, RTI*, Savant, URC, 0-10v, 12v Trigger
SOLO 3 – RTS screens – Alexa, Control4, Crestron SIMPL, Crestron Home*, Dry Contact Closures*, Elan, Google Home, Josh.ai*, IP*, IR*, Lutron, Loxone, RS-232*, RS-485*, RTI*, Savant, URC, 12vTrigger*
*when using a compatible gateway
Environment
Operating temperature range is normal ambient (32 to 110 degrees) and humidity levels up to 90%. Not meant for wet environments.
Available in standard sizes only. All dimensions are listed as seamless. Screen materials may expand and contract slightly over time. SI allows a 1.5% tolerance within the viewing surface.
Available Materials
| Material | Gain | ALR | Acoustic |
|---|---|---|---|
| Slate 1.2 | 1.2 | 65% | No |
| Pure White | 1.3 | 10% | No |
| Pure Gray | 0.85 | 15% | No |
| Slate AT 1.2 | 1.2 | 65% | Yes |
| Pure White AT | 1.3 | 10% | Yes |
| 360 | 0.85 | 15% | No |
| Solar White | 1.3 | 10% | No |
| Solar Gray | 0.9 | 15% | No |
Compatible accessories: TRO.Y™ 2, Pegasus, Bond Bridge Pro, KRATOS™, Moab, TaHoma Switch, Sidekick, Smart Light Switch, Smart Plug, RTS Repeater, Solo Remote, SI IR Remote, 485 DecoFlex Digital Keypad 6/8-Button, DecoFlex WireFree 1 – 5 Ch, Spike Kit, USB Programming Kit, Charging Cable - Solo 3, Solo 3 Indoor Flown Kit, Solo 3 Indoor Brackets.
Supporting Documentation
Projection Surface
360
Front and back viewing
Sometimes your environment calls for rear projection and sometimes, front projection. Sometimes, however, you want both. 360 is a fantastic screen material for rear-projection purposes but is also capable of producing a nearly identical image on the opposite side, regardless of projector location.
Ultra-wide viewing angle
360 utilizes an incredibly smooth diffusion layer within the viewing surface, which allows the projected light to be perfectly distributed in all directions. This perfect distribution creates an incredibly wide viewing cone, enabling extreme off-axis viewing.
Two screens for the price of one
Save your money! The dual-sided viewing capability of 360 means that with a single projector and a 360 screen, you can do what used to take two projectors and two screens. Hang a screen over your restaurant or bar and guests on both sides can enjoy the same picture.
Surface Characteristics
- Minimal Ambient Light Rejection - Rejects 15% of Ambient Light
- BOTH Front and Rear Projection Material (image reversed on one side)
- Flame Resistant
Surface Material Properties
| Maximum Size | 200" Diagonal |
| Peak Gain | 0.85 |
| Half Gain | 80 Degrees |
| Ambient Light Rejection Value | 15% |
| Front / Rear Projection | Both |
| Resolution | up to 4K |
| Minimum Throw | 0.2 x width |
Specs
Item #: SI-S3WF100TS
Manufacturer Part #: S3WF100TS
