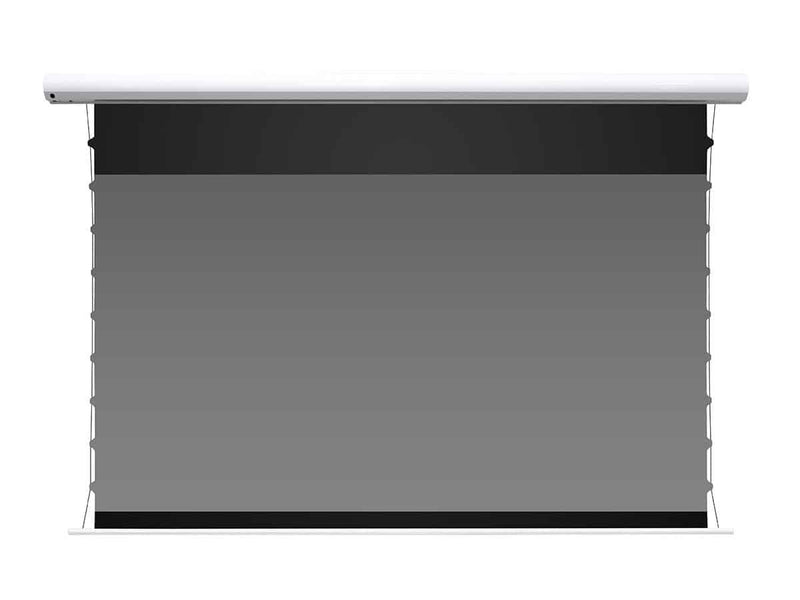

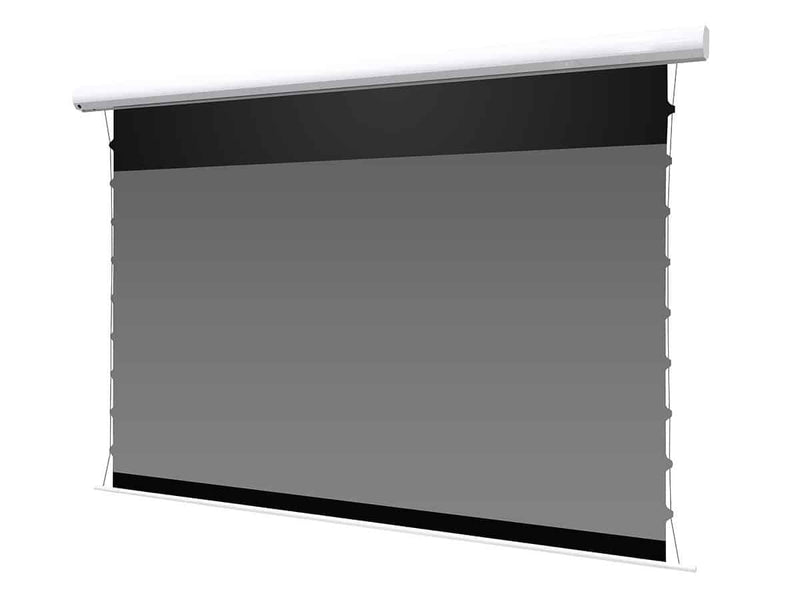

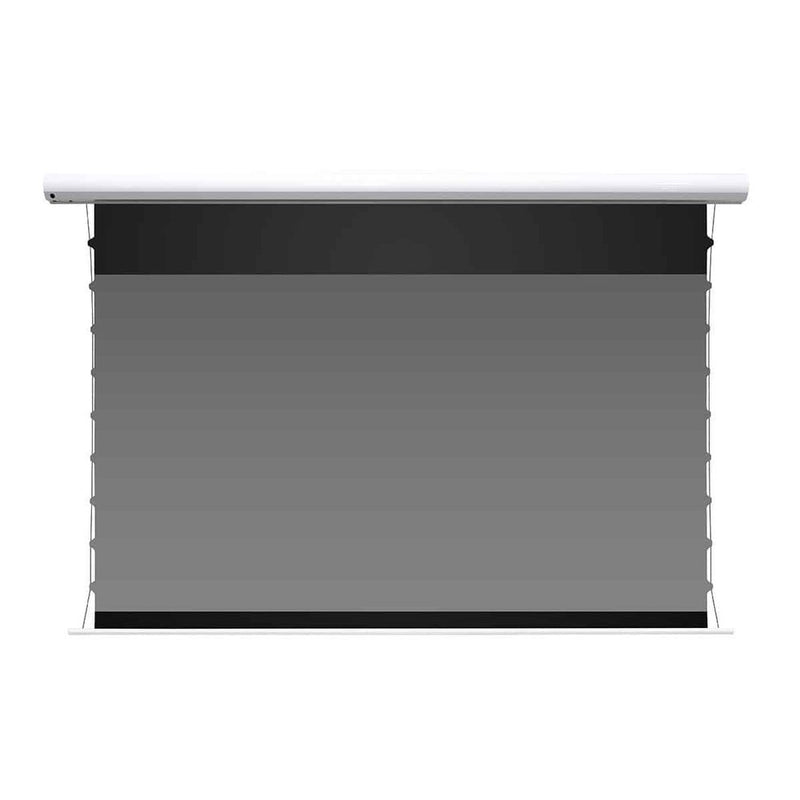

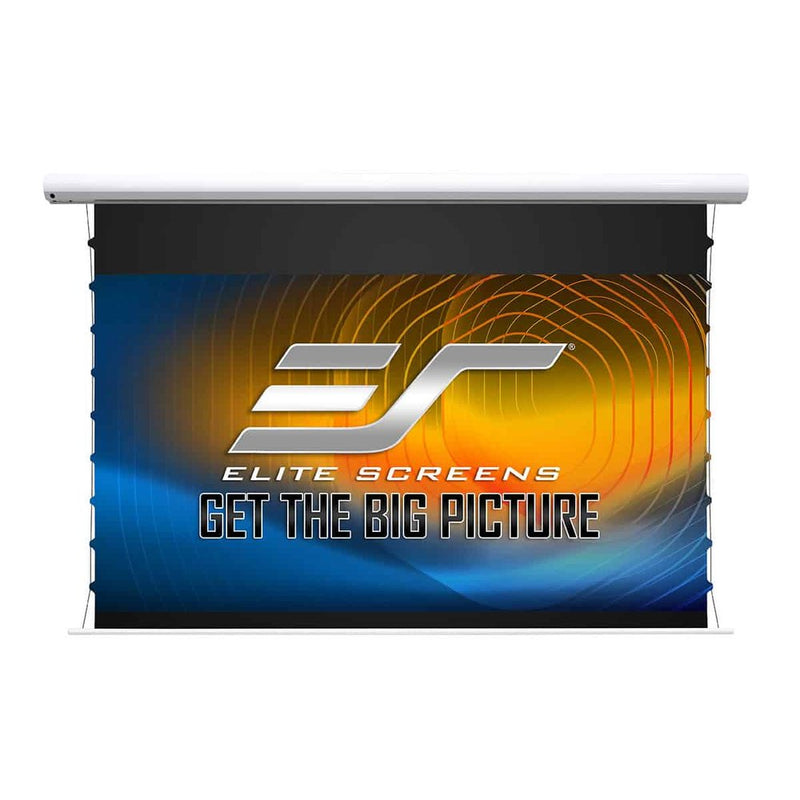

Elite STT140XH-CLR5 Starling Tab-Tension 140 diag. (68.6x122) - 16:9 - StarBright CLR 5 - 0.8 Gain

Screen Material

• StarBright CLR® 5 (SBCLR® 5) Ceiling Light Rejecting front projection material absorbs 80% of overhead light
• Formulated for use with Ultra-short Throw (UST) tabletop/bottom mounted projectors (NOT compatible with short or standard throw projectors)
• Lenticular sawtooth micro-structure filters out ambient light for superior image brightness and contrast
• Reflective and absorbent layers optimize projector performance in moderate ambient light room environments
• Wide diffusion uniformity allows viewers to see a clear bright uniform picture from any angle
• Improves black levels in bright and dark room environments
• Reflective layer eliminates light scatter and concentrates projected light back into viewer’s field of vision
• Black backing prevents picture degradation while enhancing image brightness for sharper presentations
• GreenGuard® / GreenGuard® Gold Certified UL 2818 for Safety Indoor Emissions free
• Available in the following range of diagonal sizes: 126″, 138″, 140″ and 152″ in 16:9 aspect ratio

Design and Installation

• Flush wall/ceiling mounts permit wood stud installation and allow screen to slide horizontally for proper centering

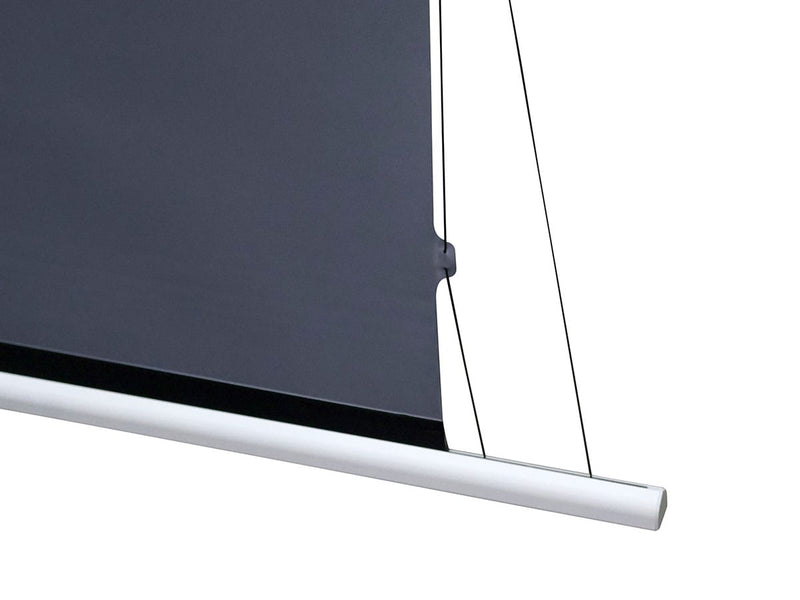

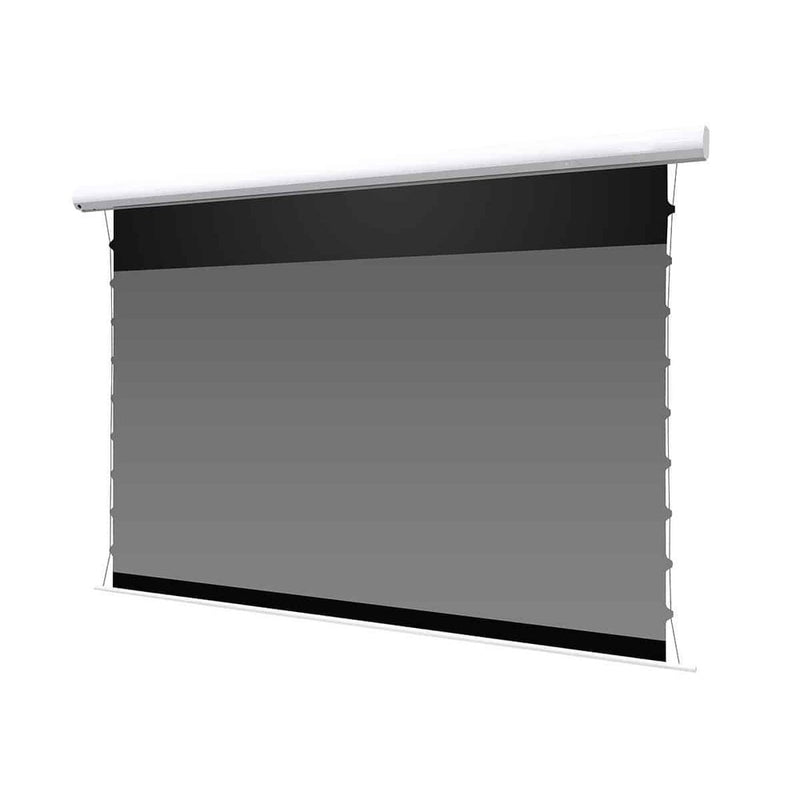

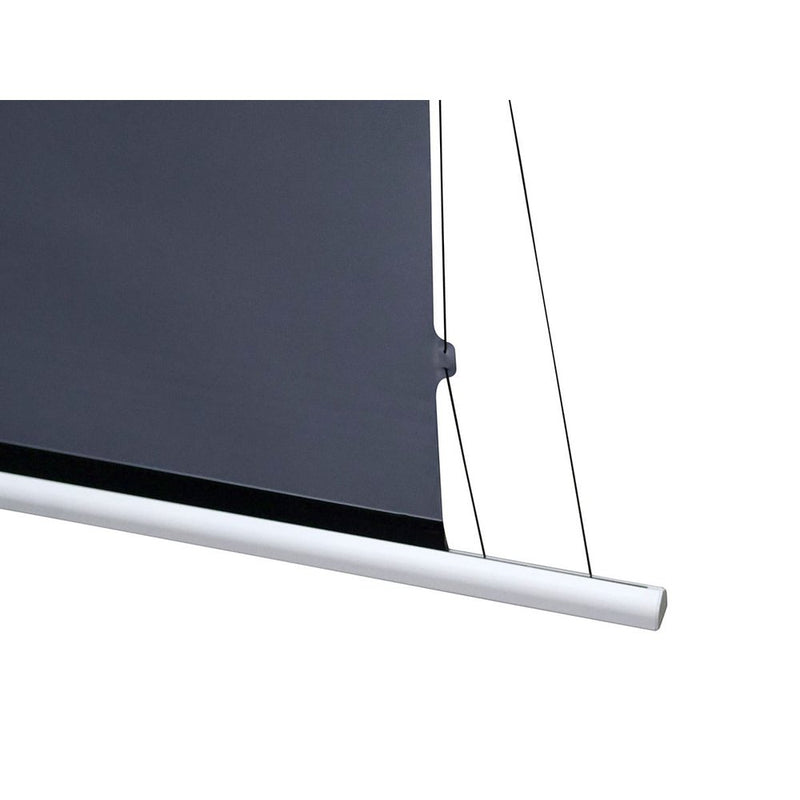

• Tab-tension design helps maintain a flat, taut, and ripple-free projection surface
• Project from a short distance without shadowing the picture

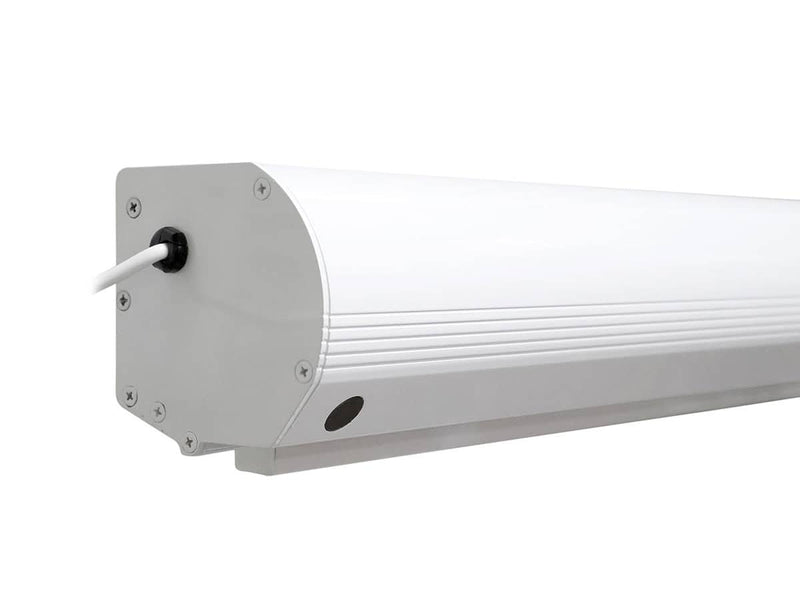

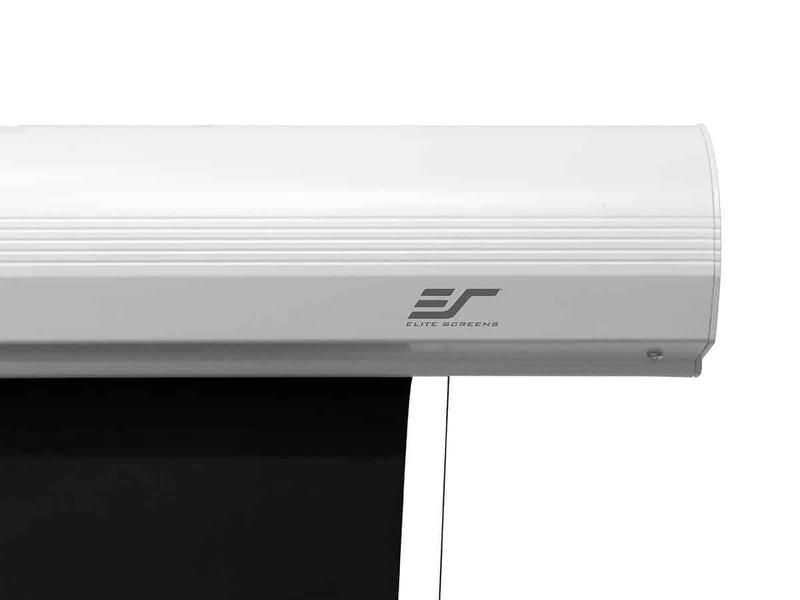

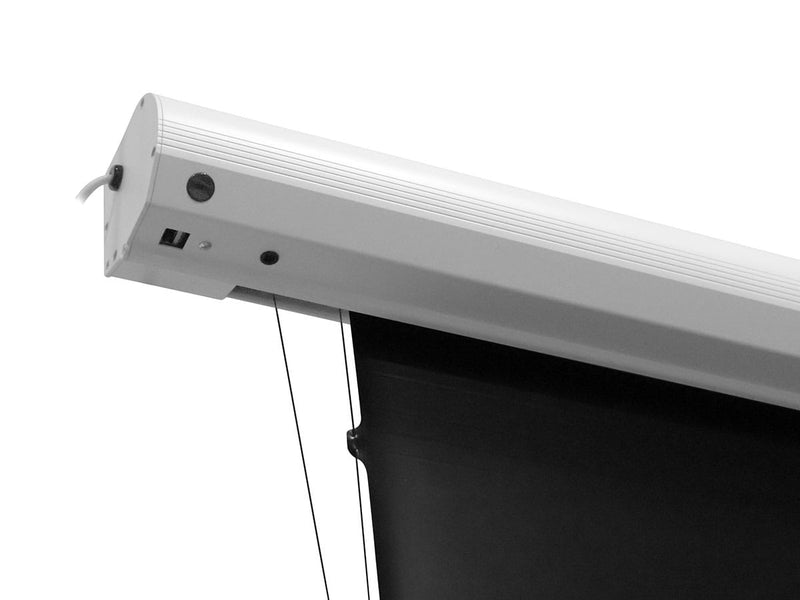

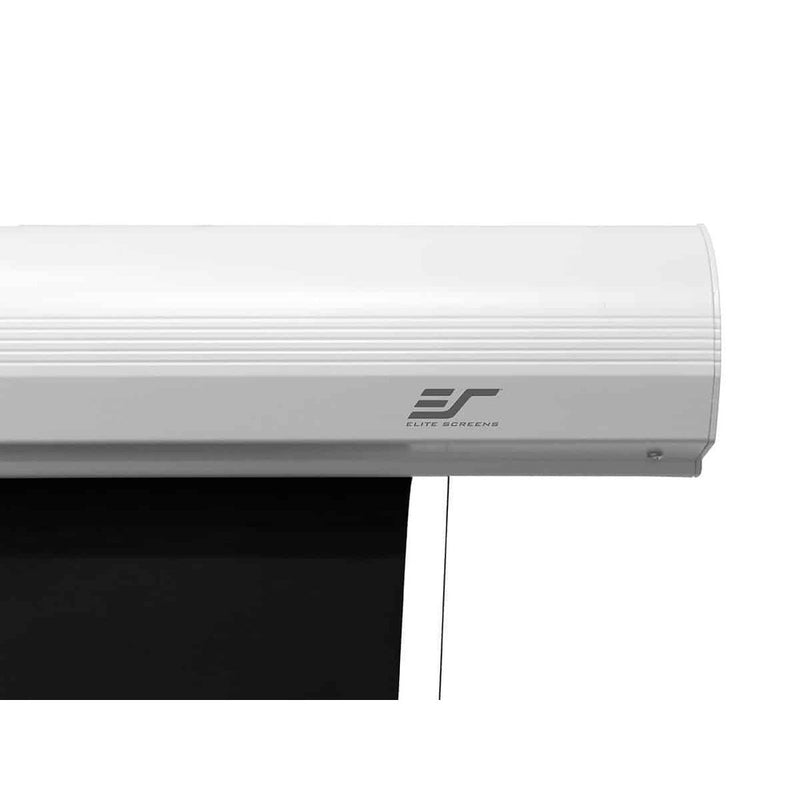

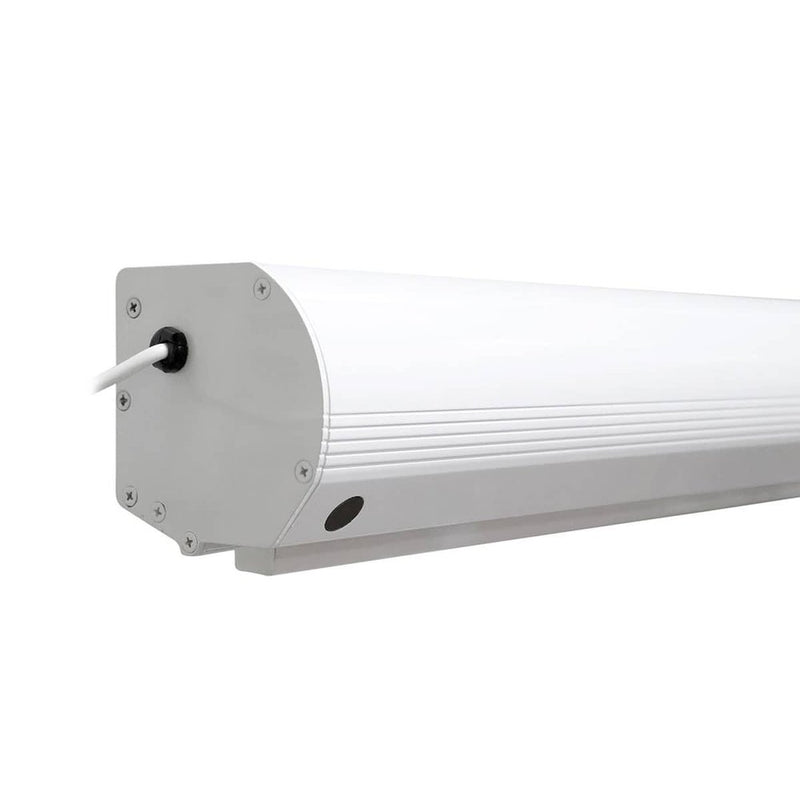

• Curved aluminum white case is moisture resistant

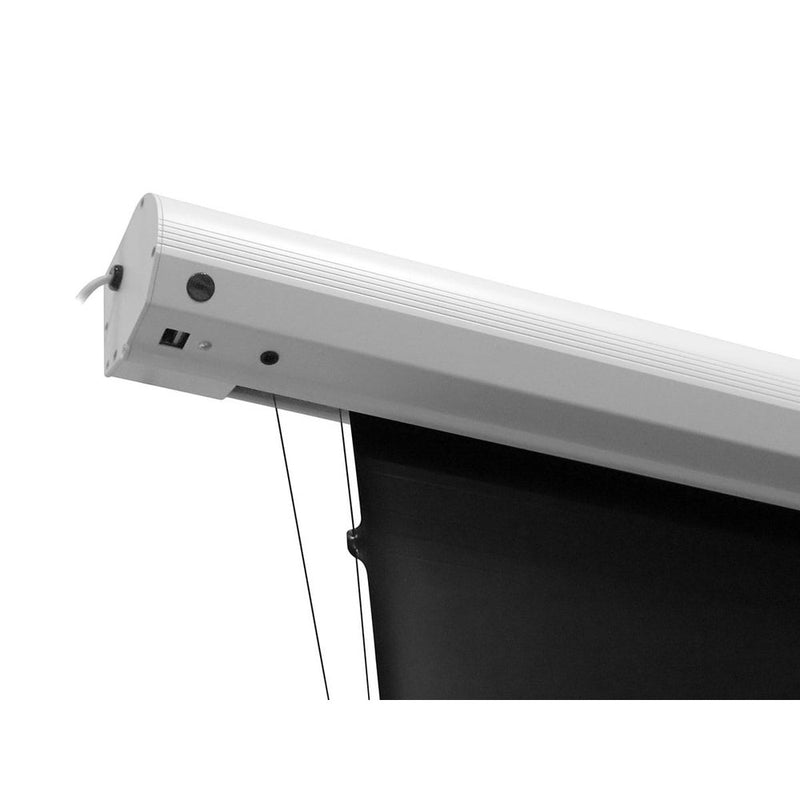

• Plug & Play design with built-in low voltage control system, no hardwire installation required

Control System: SWIFT-RC1®

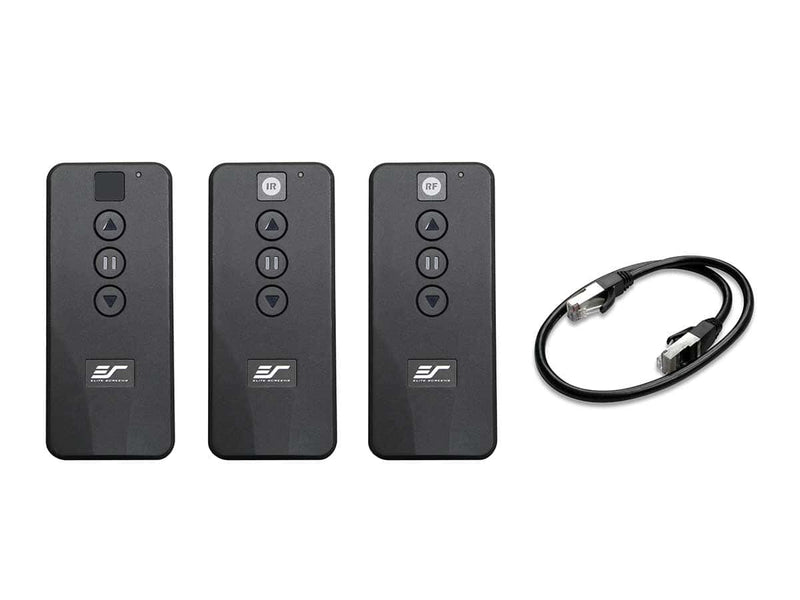

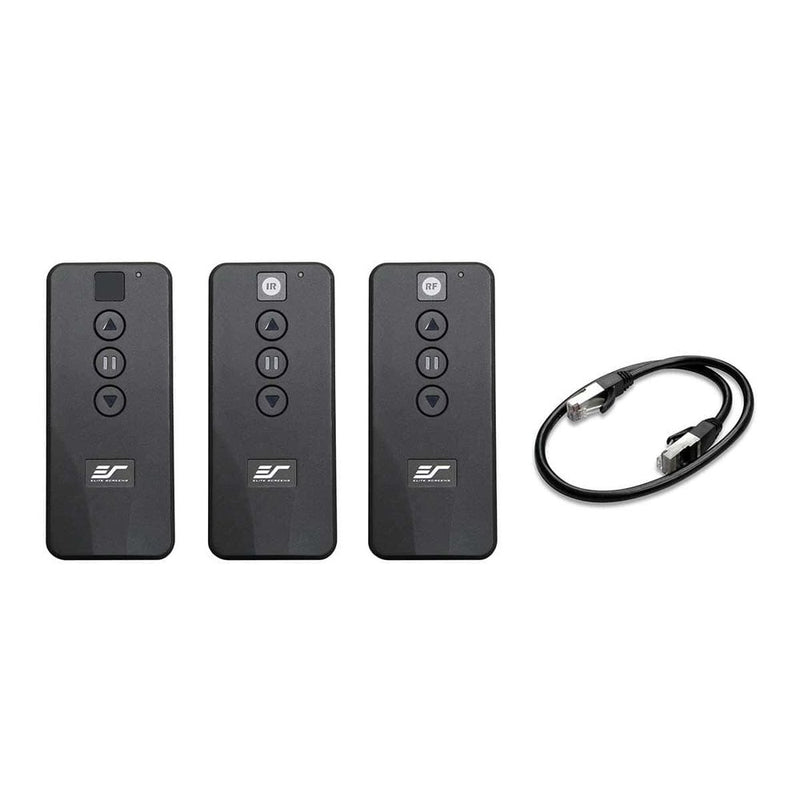

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller
  • Wireless 12v trigger capability via Radio Frequency remote control

Quality and Reliability

• Standard 2-year premium warranty
• 3-year ENR-G® warranty for Education, Non-profit, Religious, and Government organizations

Specifications

• Model: STT140XH-CLR5
• Series: Starling Tab-Tension CLR 5
• Diagonal: 140"
• Aspect Ratio: 16:9
• Viewable Size (H x W): 68.6 x 122"
• Screen Material: CLR 5
• Gain: 0.8
• Viewing Angle: 170°
• Front/Rear Projection: Front Projection
• Compatible Projectors: Short Throw, Ultra Short Throw
• Case/Frame Color: White
• Mount: Wall/ Ceiling
• Overall Size (W x H x D): 135.5 x 87.5 x 4.7"
• Product Weight: 56.4 lb
• Shipping Weight: 72.4 lb
• Package Dimensions: 150 x 8.4 x 7.8"
• In the Box: IR and RF Remote, 3 Way Wall Switch, RJ50 Trigger, Bubble Level
• Warranty: 2 Year Warranty
