Elite VMAX135UWH3 VMAX 3 135 diag. (66.2x117.7) - 16:9 - MaxWhite FG - 1.1 Gain

$50 Cart Discount

Elite VMAX135UWH3 VMAX 3 135 diag. (66.2x117.7) - 16:9 - MaxWhite FG - 1.1 Gain

Item #: Elite-VMAX135UWH3

Add to Compare

$1,355.00

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 2-3 Weeks

Free Shipping

Overview

Available in the following front projection materials

Material Name	Gain	Viewing Angle	Description
MaxWhite® Fiberglass (FG)	1.1	180°	MaxWhite® Fiberglass (FG) is fiberglass backed for added stiffness which provides the flattest possible non-tensioned screen surface with universal applications. This material provides wide viewing uniform diffusion while giving precise definition, color reproduction and black & white contrast.

Screen Material

MaxWhite® Fiberglass backed 1.1 Gain matte white front projection material
Wide viewing angle allows viewers to see a clear, bright, and uniform picture from any angle
Black backing preserves image brightness for a sharper picture and eliminates light penetration from behind to prevent picture degradation.
4-side masking borders enhance picture contrast and absorb projector overshoot
Compatible with Full HD, Ultra HD (4K/8K) and Active 3D projectors
Compatible with Standard throw Projectors ONLY
Available in diagonal sizes 125″, 135″, 150″ and 166″ in 16:9 and 150″ in 4:3 aspect ratio

Design, Installation and Control System

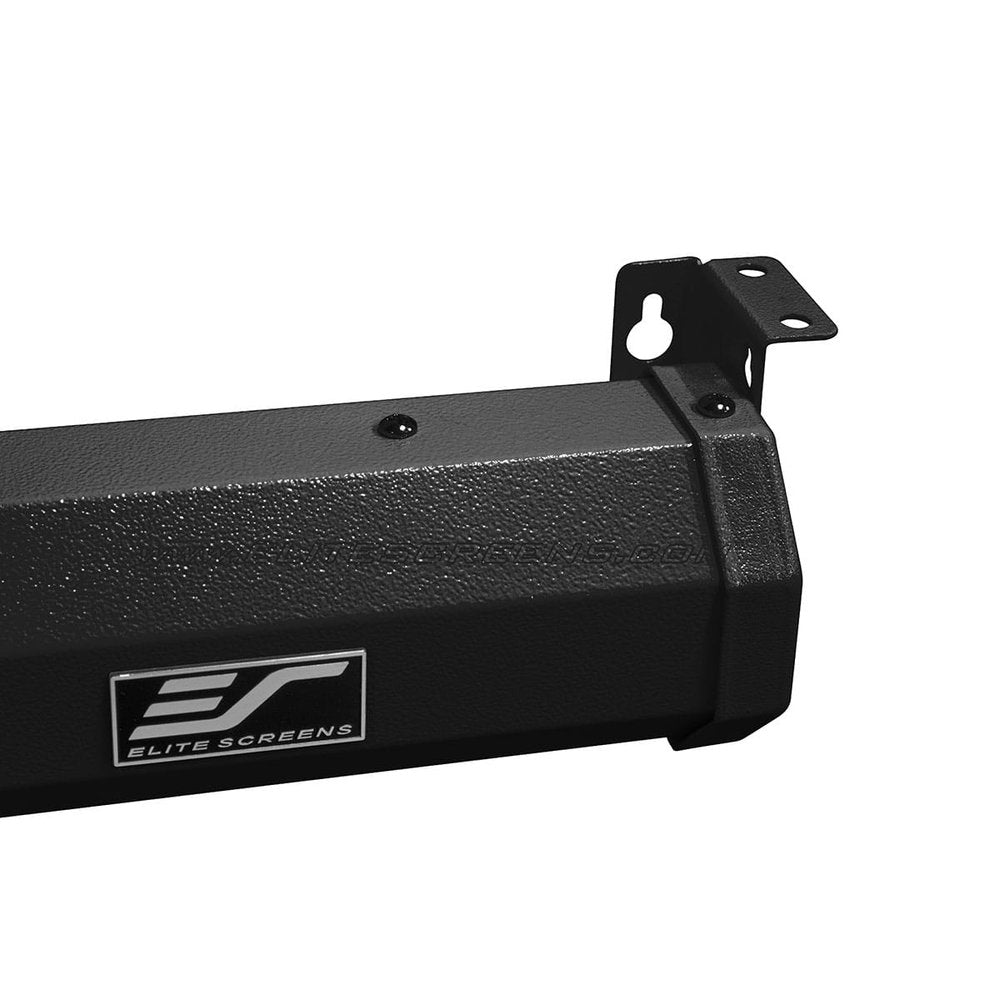

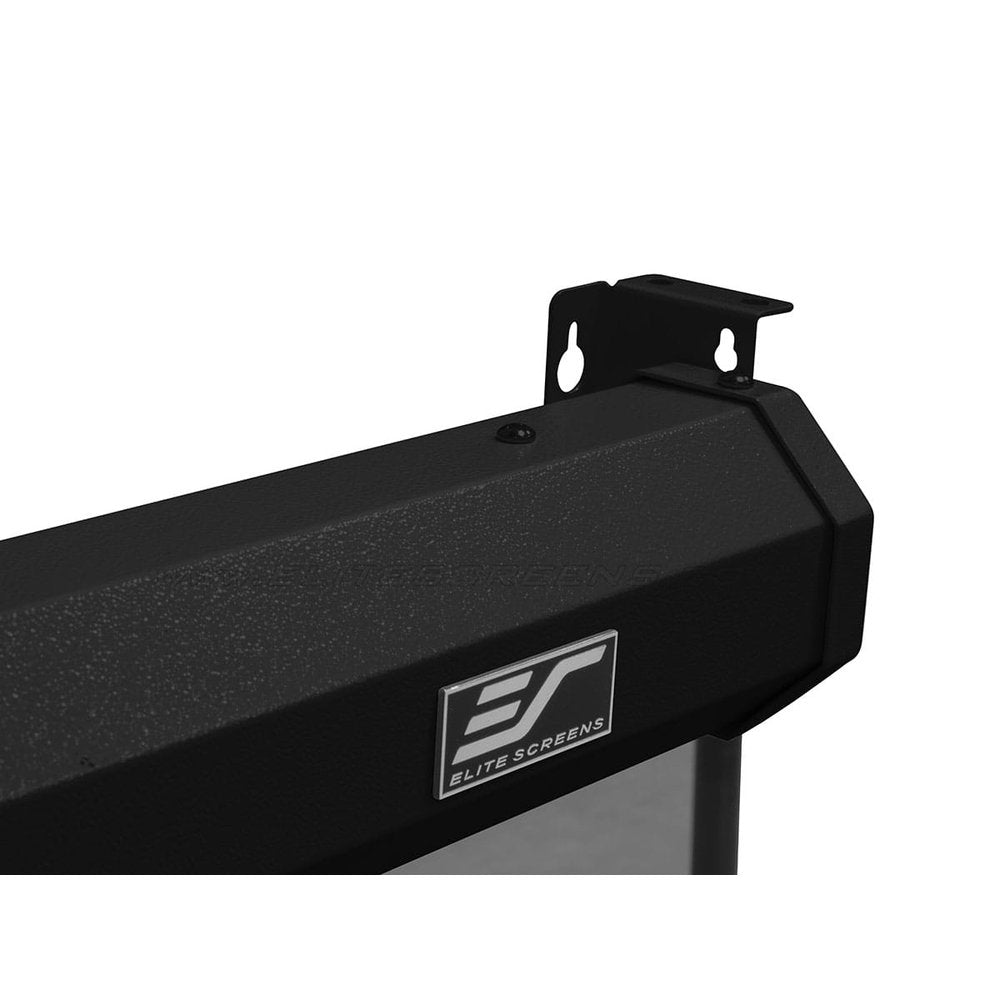

Durable steel case includes endcaps for wall or ceiling mount options
Plug & Play design with built-in low voltage control system, no hardwire installation required
Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
User-friendly programmable vertical drop position for easy installation
Wall box controller is detachable for a clean look while maintaining RF & IR functionality
Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
- Wired 12v trigger capability via wall box controller
- Wireless 12v trigger capability via Radio Frequency remote control

Quality and Reliability

Tubular motor allows swift operation with a superior weight tolerance and operational lifespan.
MaxWhite® FiberGlass: Flame Retardant- Complies with NFPA 701 Standards
GREENGUARD® and GREENGUARD® Gold Certified
2-year limited warranty, and 3-year warranty for ENR-G® – Education, Non-profit, Religious and Government/Military organizations

Specifications

Model: VMAX135UWH3
Series: VMAX 3
Diagonal: 135"
Aspect Ratio: 16:9
Viewable Size (H x W): 66.2 x 117.7"
Screen Material: MaxWhite Fiberglass (FG)
Gain: 1.1
Viewing Angle: 180°
Front/Rear Projection: Front Projection
Compatible Projectors: Standard Throw
Case/Frame Color: Black
Mount: Wall/ Ceiling
Overall Size (W x H x D): 129.5 x 76.7 x 3.5"
Product Weight: 38.8 lb
Shipping Weight: 47.6 lb
Package Dimensions: 134.7 x 6.9 x 6.5"
In the Box: IR Remote, RF Remote, 3 Way Wall Switch, RJ50 Trigger, Bubble Level
Warranty: 2 Year Warranty

Supporting Documentation

Projection Surface

MaxWhite FG

MaxWhite FG is fiber glass backed for added stiffness which provides the flattest possible non-tensioned screen surface with universal applications. This material provides wide viewing uniform diffusion while giving precise definition, color reproduction and black & white contrast.

The screen surface has a black-backing to eliminate light penetration, is mildew resistant and washable with mild soap and water.

* Manufacturer tip: This is an enhanced matte white product for higher end DLP/LCD projectors suitable for commercial and residential presentations.
