Draper 241401CD Ultimate Folding Screen Lite Complete with Soft Case - 104"diag. (54x96) - [HDTV 16:9] - CineFlex White XT700V

Draper 241401CD Ultimate Folding Screen Lite Complete with Soft Case - 104"diag. (54x96) - [HDTV 16:9] - CineFlex White XT700V

Item #: Draper-241401CD

Add to Compare

$2,763.00

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 2-3 Weeks

Free Shipping

Overview

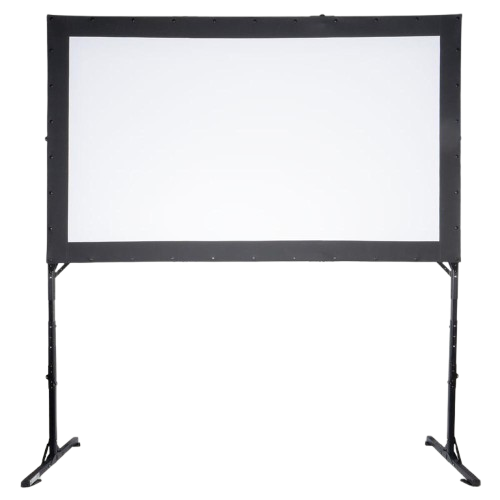

Ultimate Folding Screen Lite features integrated legs that unfold with the frame, eliminating cranks and separate leg attachment for fast, single person setup. Its perfectly flat viewing surface replaces wavy tripod screens and delivers consistent professional image quality for a wide range of projection types, including ultra-short-throw. Weighing less than a standard tripod screen, it folds to 48" (122 cm) for easy storage and transport. Viewing surfaces can be stored rolled in a protective fabric carry bag to help prevent fold lines or folded for traditional storage. Offered with a soft carry bag or hard case - hard case recommended for frequent off-site shipping. Ideal for rental and portable AV environments.

Integrated-leg design: Legs unfold with the frame for fast, tool-free setup.
Fast setup: One-person setup in under 5 minutes.
Perfectly flat surface: Replaces wavy tripod screens.
Compact storage: Folds down to 48″ (122 cm) for easy transport.
Size options: Available in 6′, 8′, and 9′ (183 cm, 243.84 cm, and 274 cm) wide 16:9 formats.
Viewing surface storage: Store the surface folded for traditional storage or rolled in a protective fabric carry bag to help prevent fold lines.

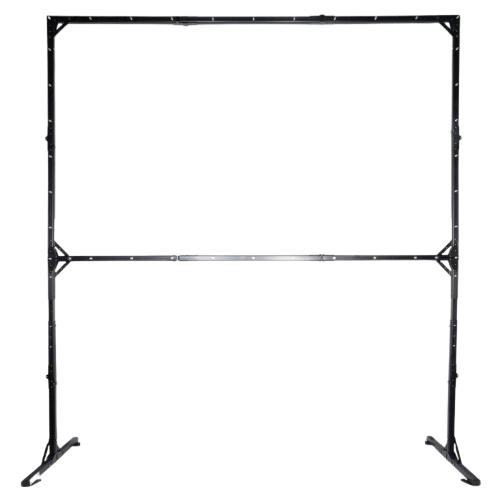

Durable frame: Anodized black aluminum tubing 1.25″ × .070″ (32 mm × 2 mm).
Sliding feet: Easy gliding movement on hard floors and carpet.
Projector compatibility: Supports a wide range of projection types, including ultra-short-throw.

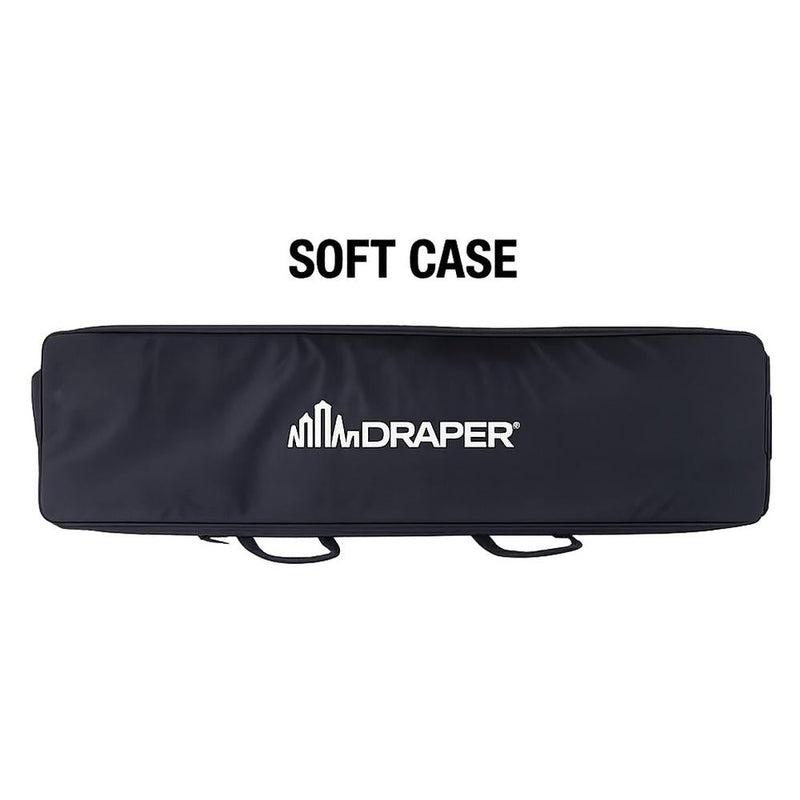

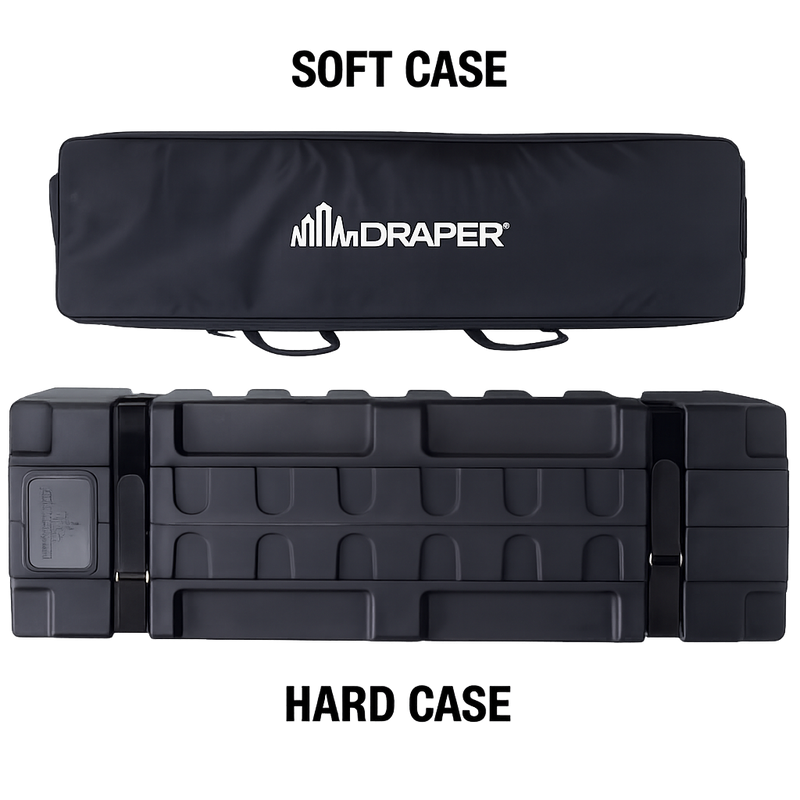

Case options: Ships as a kit in soft carry bag or hard case; hard case recommended for off-site shipping.
Surface compatibility: Compatible with Draper^® front and rear projection surfaces, including TecVision.

Supporting Documents

Ultimate Folding Screen Lite - Assembly Instructions
Data Sheet

Projection Surface

CineFlex White XT700V

CineFlex White XT700V is a flexible, foldable, white rear projection viewing surface built for edge matching, edge blending, and short throw rear projection applications in environments where ambient light can be reasonably controlled.

Rear projection asks more of a surface than front projection does. The material has to transmit light rather than reflect it, resolve fine detail without scattering, and hold a consistent image across the full width of a multi-projector array so the seams between blended edges disappear. XT700V is a flexible PVC diffusion surface engineered for exactly that work: 0.7 gain in rear projection, an extra wide 180 degree viewing cone with typical contrast, and 4K ready resolving power. Because it folds without creasing permanently, the same surface can be specified on folding, fixed, or roller operated screens, and it can be pressed into service as a dual or low gain front projection surface at 0.5 gain when an application calls for it. Clean with mild soap and water.

Surface Characteristics

Engineered for edge matching and edge blending in multi-projector arrays
Suited to short throw rear projection installations
Extra wide 180 degree viewing cone with typical contrast
4K ready — delivers high resolution across the full image
Foldable surface for folding, fixed, or roller operated screens
Can be used as a dual or low gain front projection surface

Surface Material Properties

Material Type	Flexible Rear
Peak Gain (Rear Projection)	0.7
Peak Gain (Front Projection)	0.5
Viewing Cone	180 Degrees
Half Gain	N/A
Maximum Height Without Seams	136" (345 cm)
Edge Blending Properties	Excellent
Material Composition	Flexible PVC
Thickness	0.28 mm
Weight	326 g/sm
Cleaning	Mild Soap and Water
