Draper 114228 Paragon/Series E 278 diag. (148x236) -Widescreen [16:10] -Matt White XT1000E 1.0 Gain - [CUSTOM]

PARAGON E ELECTRIC PROJECTION SCREEN

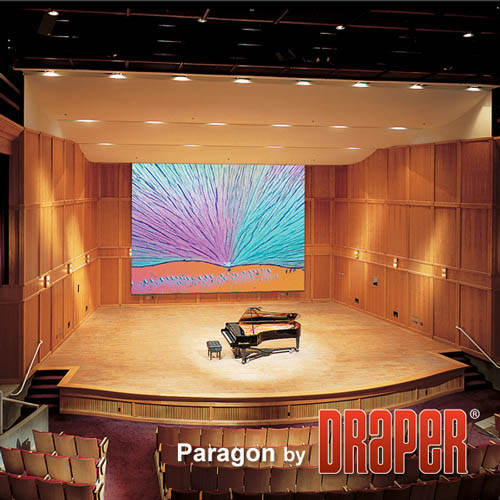

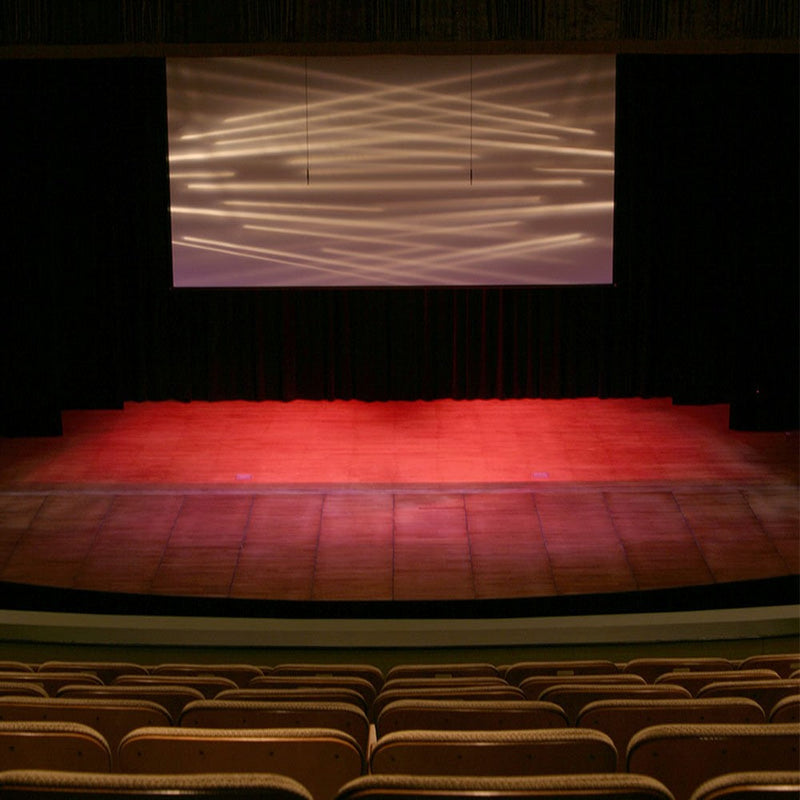

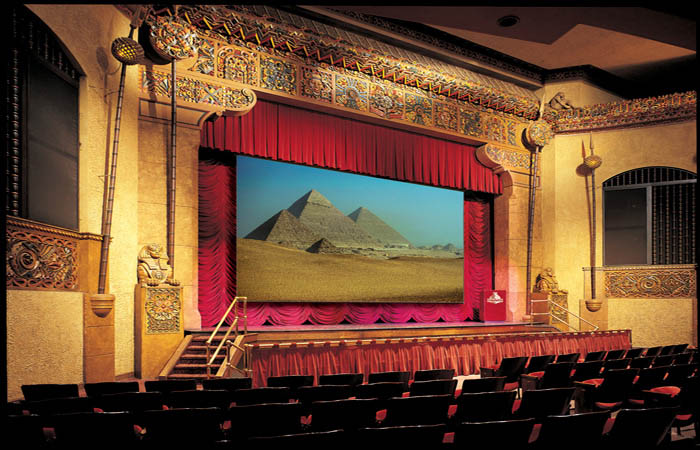

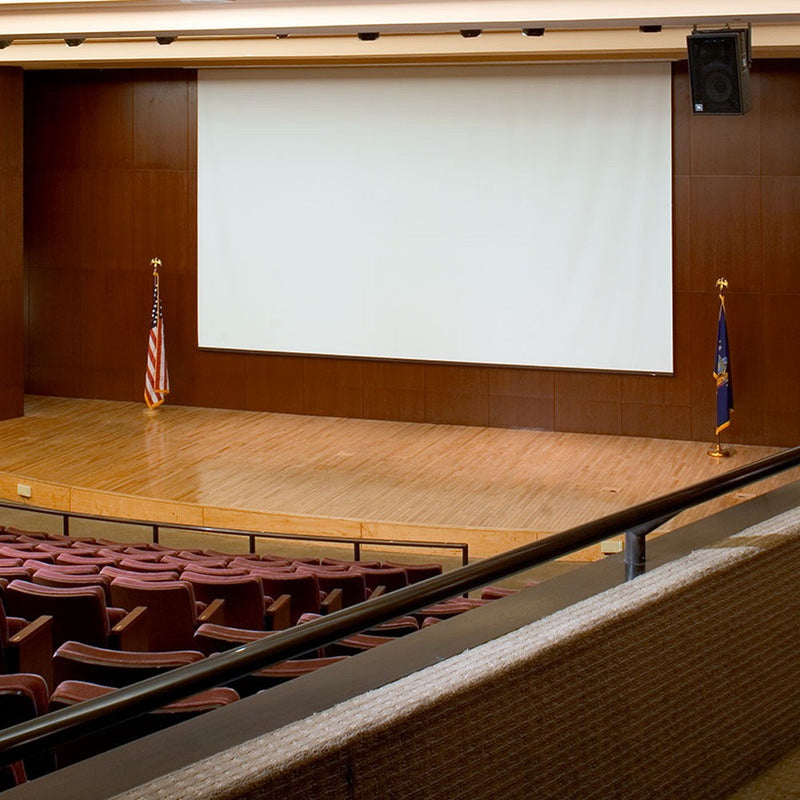

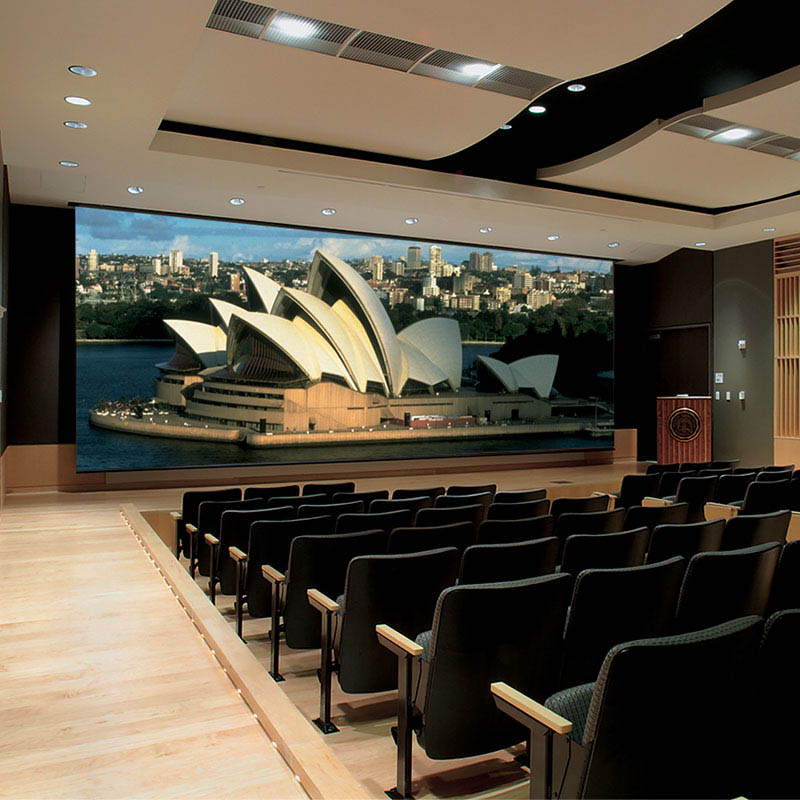

Perfect wherever a very large screen is required, the wall- or ceiling-mounted Paragon E electric projection screen features a heavy-duty design ideal for auditoriums and lecture halls. This free-hanging, fiberglass-backed projection screen maintains flatness thanks to the weight of the screen and bottom dowel. Housed in an aluminum case that can be suspended anywhere, the Paragon E’s insulated motor provides smooth, quiet operation.

Viewing surfaces available with this model are:

Features

• Case dimensions 13-1/4" high x 12" deep (34 cm x 30 cm).

• Maximum image width up to 28’ (853 cm) wide, depending on surface selection.

• NTSC, HDTV and 16:10 format have image area framed with black on all fours sides. Black side borders are available on request for AV format Screens. Additional drop above image available, specify color.

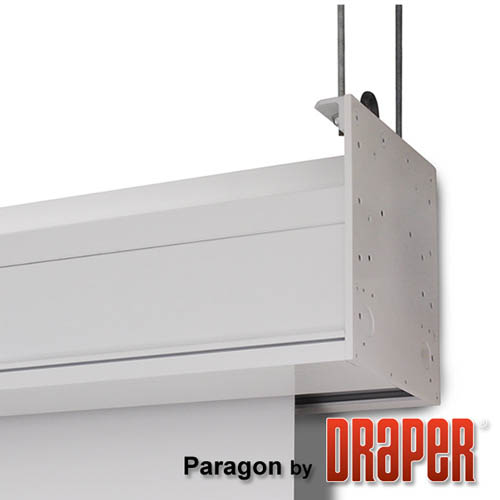

• Includes extruded aluminum case with white finish. Optional wall-mounting brackets and ceiling trim flange kit.

• Bottom closure panel provides easy access for service or maintenance.

• Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

• Custom sizes available.

Supporting Documents

110 V Instructions

220 V Instructions

Accessory Instructions

BIM Object ( BIM Support )

CAD (dwg)

CAD (pdf)

CAD Side View (dwg)

CAD Side View (pdf)

Care and Maintenance Instructions

Catalog Page

CSI 3-Part Specifications

Low Voltage Controls Wiring Instructions

Low Voltage Controls Wiring Instructions (230V)

Submittal

Warranty
