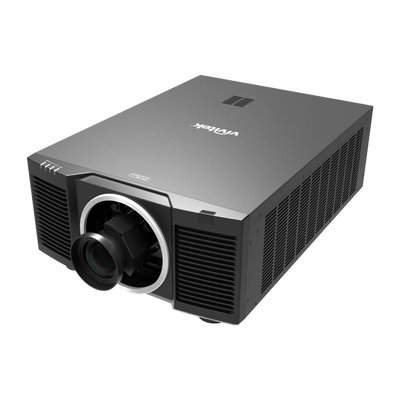

Vivitek DU9900Z WUXGA Large Venue Laser Projector with 22,000 Lumens - Lens Not Included
Item #: Vivitek-DU9900Z-BK
$35,000.00
Leaves Warehouse within 2-3 Weeks
Free Shipping
Overview
Large Venue, House of Worship & Professional Installation
DU9900Z-BK
Ultra High Bright SSL Laser projector delivering 22,000 lumens, rich connectivity, edge-blending, and very low maintenance operating time
- Bright 22,000 ANSI lumens with a native WUXGA (1920 x 1200)
- resolution for impeccable colors and outstanding details
- DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant, colorful images
- Solid-state, laser-phosphor light source for reliable projection and performance
- Environmentally friendly lamp-less design that is mercury-free and energy efficient
- Almost maintenance-free with up to 20,000 hours of operating time
- Advanced video processor for fluid video streaming and 10-bit programmable RGB color adjustments
- Laser light source produces rich colors for an incredible cinematic experience
- Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
- Built-in hardware edge blending and warping functionality
- Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
- Picture-in-Picture (PIP) for simultaneous image projection from two active sources

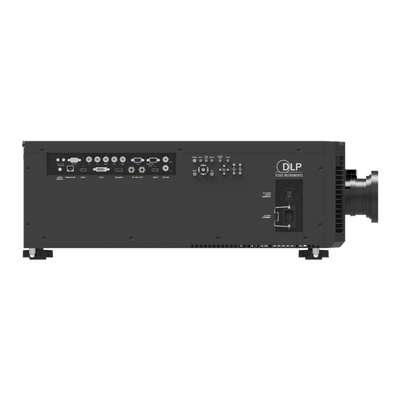

- Full suite of display connectivity inputs and outputs including: HDMI v1.4, DVI-D, Component (5 BNC) , VGA-In, 3G-SDI-In/Out, VGA-Out, HDBaseT™
- HDBaseT™ interface with support for distribution of digital video content over standard CAT5e/6 LAN cable
- Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
- 360° operation and projection design for set up in all angles
- Instantaneous power-on & off, so no need for system pre-heating and postcooling
- Airtight sealed engine and filter-less design for improved performance against dust and fibers
- Frame sequential and dual channel 3D supported
- Complete range of motorized interchangeable lens in sizes from 0.9 to 7:1 (optional)
- Optimized system layout with high efficiency cooling system
- Heavy duty steel chassis for extra strength and integrity
- 24/7 continuous operation with no downtime
- Network ready for integration and system administration via RJ45
| Display Type | Single Chip 0.96" DLP Technology by TI | |
| Brightness | 22,000 ANSI Lumen1 Note: 200-240V is required for full output (NEMA 6-15) |
|
| Native Resolution | WUXGA (1920 x 1200), 16:10 format | |
| Contrast Ratio | 10,000:1 or 30,000:1 (with DB On) | |
| Laser Life/Type | 20,000 + hours (Laser Phosphor Light Engine) | |
| Aspect Ratio | 16:10 Native | |
| Image Size (Diagonal)* | 40” – 500” (See page 2 for specification) | |
| Keystone Correction | Vertical ±40°, Horizontal ±60° (Adjustable Range of single direction) | |
| Horizontal Frequency | 15, 31 - 90Hz | |
| Vertical Scan Rate | 24 - 30Hz, 47 - 85Hz | |
| Projector Lens * | 5 lens options (See page 2 for specification) | |
| Lens Shift Range* | Vertical: ±50%, Horizontal: ±15% | |
| Offset* | Motorize Lens Shift (See page 2 for specification) | |
| Edge Blending | Yes (Built-In) | |
| Warping | Yes (Built-In) | |
| Computer Compatibility | VGA, SVGA, XGA, WXGA,SXGA, SXGA+, UXGA, 1080P, WUXGA@60hz, Mac | |
| Video Compatibility | SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i, 1080p | |
| I/O Connection Ports | HDMI v1.4 (x2), HDCP v1.4 Compliant | |
| HDBaseT™ / LAN Control (Shared) RJ45 | ||
| DVI-D | Component/RGBHV (5 BNC) | |
| 3G-SDI-In/Out | RS-232-In/Out (DB-9) | |
| VGA-In/Out | Wire Remote (3.5mm Jack) | |
| 3D Sync IN/Out | 12V Trigger (x2) (3.5mm Jack) | |
| Projection Method | Table Top, Ceiling Mount (Front or Rear) | |
| Security Solutions | Kensington® Security Slot, Security Bar, Anti-Theft Lens Screw | |
| Dimensions (WxDxH) | 26.8” x 20.8” x 9.7” (681x 530 x 248mm) | |
| Weight | 115lbs (52.3Kg) | |
| Available ID Colors | Black (DU9900Z-BK) | |
| Noise Level | 45dB / 39dB (Eco Mode) | |
| Power Supply | AC 100-240V, 50/60Hz | |
| Power Consumption | Normal Mode | 2,100 Watts 100V- 240V@100Vac |
| Network Standby | Less than 6W | |
| Eco Standby | Less than 0.5W | |
| Environment Condition | Operating | 0° to 40°C, (0 to 104°F), humidity 10 to 85% non-condensation |
| Storage | -10° to 60°C (14 - 140°F), humidity 5 - 95% non-condensation | |
| Standard Accessories | AC Power Cord, Remote Control, Lens Cap, Anti-Theft Lens Screws, Documentation Kit | |
| Optional Accessories | Interchangeable Lens Options (x5) | |
| UPC Code (Projector) | 813097025289 | |
Specs
Item #: Vivitek-DU9900Z-BK
Manufacturer Part #: DU9900Z-BK
