Stewart Cascade G2 CASG2120HST13G4CLW-12-2-5 Electric - 120" (58.75x104.5) - HDTV [16:9] - 1.3 Gain

Plenum Rated, Retractable, Above Ceiling Screen System

Easy Installation in the Boardroom, Classroom, Large Venue or Residence

Cascade G2 is a refined, above-ceiling retractable screen compatible with the best Stewart Filmscreen front and rear projection screen materials, including StudioTek 130 G4, Phantom HALR Plus, Firehawk G5, Aeroview 100 and many more. ETL-approved Cascade G2 scales up to 205” diagonal in a 16:9 aspect ratio. Also, easy-to access built-in mounting brackets and a case measured at under 7 inches make for an easier installation for all.

An Integrators Best Friend

Cascade G2 packs a lot of image area — over 17 feet diagonal in a case measuring just 6.5 inches tall and 6 inches front to back. The self-finishing case of the Cascade G2, made of plenum-rated extruded aluminum, conceals integrated, easy-to-access built-in mounting brackets. This full-featured screen system has a built-in integral control system, the Stewart IMC, providing easy access during installation or for future changes in the automation interface as technologies evolve.

Great Fit and Finish

Cascade G2 installs beautifully and finishes with an easy-to-remove dust cover. With proprietary roller tube technology and a super quiet motor, this screen will give you years of sterling service.

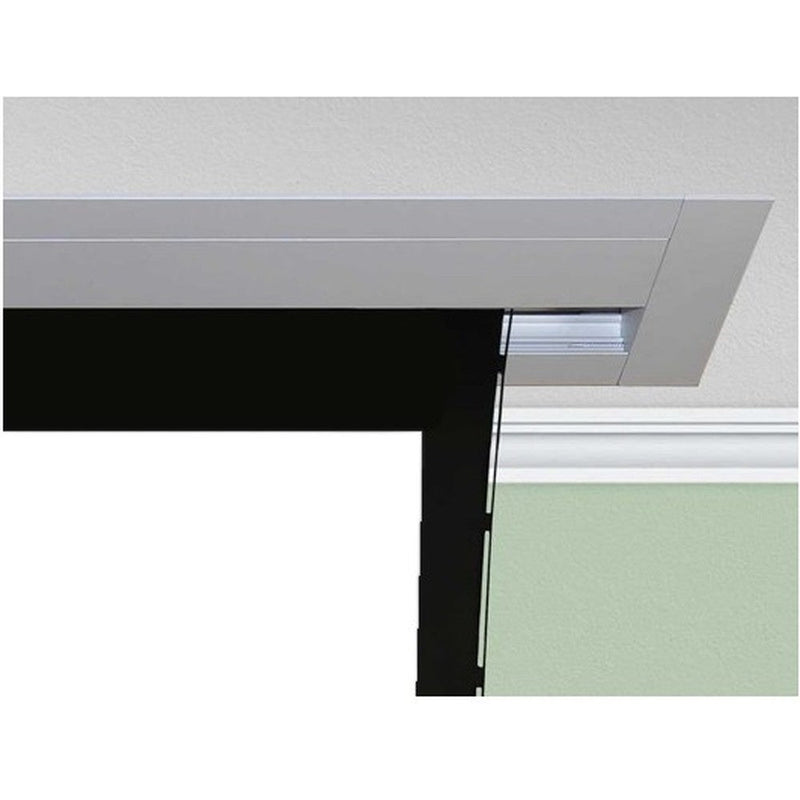

Ceiling Recessed and Out of Sight

Press a button and your screen will retract into the ceiling, keeping it clean and safe until your next viewing experience. Cascade G2 gives you high functionality and also frees up wall space so your room can express other ideas besides a place to just watch TV.

Your Choice of Stewart Quality Fabrics

With Cascade G2 choose any front or rear 16K+ fabric and enjoy a lot of screen size in the perfect package.

Specifications

Screen

• Model: CASG2120HST13G4CLW-12-2-5
• Diagonal: 120"
• Format: HDTV [16:9]
• Image Size (H x W): 58.75" x 104.5"
• Screen Material: StudioTek 130 G4
• Gain: 1.3
• Material Features: 1.3 Gain, Matte White and Enhances HDR content

System

• Features: 12" Black Drop, 12 Volt Trigger, Plug and Play Port for Three Button Wall Switch with End Flange Mounting Brackets
• Case Color: White Case
• Control System: Three Button Keypad & 12 Volt Trigger Kit
• What's in the Box: 1x Three Button Wall Switch, 4x Male Mono 3.5 Auxiliary Plugs

Weight and Shipping

• Net Weight: 100 lb
• Ship Weight: 127 lb
• Shipping Dimensions (L x W x H): 141 x 12 x 14"

Supporting Documentation

• Cascade G2 Owner's Manual
• Cascade G2 Brochure
• StudioTek 130 G4 Material Data Sheet
