Sony STR-AZ7000ES Premium ES 13.2 Channel 8K A/V Receiver

Features

STR-AZ7000ES

ES A/V Receiver: Elevated performance for all

Renowned ES Quality

Redesigned with build quality in mind

Newly Designed Frame Beam Base Chassis

Offset Screw Position Foot

Updated Heat Sink

Refreshed Digital Circuit Board

The chassis of the ES model has been fundamentally revised: the overall thickness has been increased for improved rigidity, and the structures of the transformer base and other weight-bearing parts have also been redesigned to improve the instantaneous power and crispness of the sound, when compared to a conventional chassis.

Designed with an offset screw position to both eliminate the resonance point and avoid frequency-specific, vibration-inducing resonance transmission to and from the transformer, the foot also contains additional ribs for increased rigidity and improved resonance control.

A more uniform shape applied to the heat sink enables the amplifier circuit to withstand unwanted vibration. The heat sink bracket also shields the digital circuit from radiation, for sound quality that has more stability and clarity.

Metal ES-grade frames both secure the circuit board and protect it from vibration caused by speaker sound pressure. The varying fin length of the integrated heat sink reduces audible resonance uniformity while also shielding delicate circuitry from noise.

New DAC enables 32-bit operations

Improved analog power for DAC

Redeveloped digital section

Buffer amp for DAC

Digital PCM signal input is processed at 32-bit and converted to analog by the DAC, while DSD signal input during direct mode is natively input to the DAC and converted to an analog signal.

The DAC analog power supply uses a low- noise power supply IC to ensure that hi-fidelity performance is achieved

The new digital section enables all signal processing to be performed on a single chip while also providing lower impedance, increased capacitance, and better stability.

A new DAC analog output filter circuit was designed utilizing a JFET and op-amp improvement in noise floor. The phase rotation was shifted to a higher frequency, expanding the bandwidth and improving sound clarity for wide-bandwidth sources like high-resolution audio.

Sony exclusive integrated circuit

Lead free ES solder

New Capacitor for High Power

New large-capacity power transformer

A Sony-exclusive integrated circuit was developed to improve all amplification function on the STR-AZ7000ES.

Applying years of sound engineering and testing experience, Sony has developed an ES-grade solder. A high-purity tin base combines with small amounts of specially chosen metal elements for a unique alloy mix that enables a quality signal and exceptional sound.

In order to increase the power, a new block capacitor was developed and the design of the power amplifier has changed. Based on our long experience in the development of sound quality capacitors, we also emphasized the selection of materials and manufacturing methods to create a component that satisfies us in terms of sound quality.

In order to achieve high sound quality in the large power transformer, the core material of the power transformer has been re-selected to achieve high sound quality.

Fine Sound Resistor

The special resistance materials and structure, pure copper has been used in the electrodes to achieve high volumes of data with rich, vivid audio quality.

Redefined video tech to power your theater

8K & 4K/120 HDMI Connectivity

Enjoy the latest HDMI technology with support for 8K & 4K/120 video sources.^{1, 4} Equipped with four 8K HDMI inputs and two outputs, the STR-AZ7000ES is capable of delivering the most stunning picture quality and amazing clarity.³

HDMI 2.1

While enabling higher quality video output and reduced latency from input devices like game consoles, HDMI 2.1 also provides support for Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR).^3,4

Supports Dolby Vision, HDR10, and Hybrid Log Gamma, and IMAX Enhanced

Enjoy dynamic, realistic picture quality with support for the leading HDR formats, including Dolby Vision, HDR10, Hybrid Log Gamma, and IMAX Enhanced.^{6, 8, 9}

7 HDMI Inputs/2 Outputs

The STR-AZ7000ES has seven HDMI inputs with four inputs supporting full 8K & 4K/120 video sources, and two HDMI outputs that also support full 8K & 4K/120 video sources.^{1, 3, 4}

Elevated sound quality and powerful amplification that meets ES standards

With 150 watts, the STR-AZ7000ES delivers cinema-like surround sound and crystal-clear music reproduction with powerful amplification.²

Awe inspiring sound for all your entertainment

Support for the most advanced object-based audio formats

With support for Dolby Atmos®, Dolby Atmos Height Virtualization, DTS:X®, DTS Virtual: X, and DTS: X Pro, the STR-AZ7000ES delivers a truly elevated object-based surround-sound experience.

360 Spatial Sound Mapping

Experience true immersion. Sony’s exclusive 360 Spatial Sound Mapping technology reproduces a physical sound field that can adapt to your environment and create an experience that feels like a movie theatre or concert hall.¹³

Digital Cinema Auto Calibration IX

A new technology developed by Sony, Digital Cinema Auto Calibration IX precisely corrects the distance, angle, sound pressure, and frequency response of each speaker that’s connected to the STR-AZ7000ES to create the ideal sound field for any home theater setup.

Hi-Res Audio & 360 Reality Audio

Enjoy music the way the artists truly intended with High-Resolution Audio for crystal clear precision or discover a new way of listening with 360 Reality Audio for a truly immersive live concert or studio session experience.With the STR-AZ7000ES, your music comes to life like never before.⁶

Acoustic Center Sync

Acoustic Center Sync matches the audio to your compatible BRAVIA TV.¹²

Dual Center Speaker

Dual Center Speaker works with a second speaker to more accurately replicate sound with large screens.

Center Speaker Lift

Center Speaker Lift Up raises the sound from the center speaker to match what’s on the TV.

Go Wireless

Sony’s SA-RS3S & SA-RS5 wireless rear speakers and SA-SW3 & SA-SW5 wireless subwoofers (Sold sep.) are compatible with the STR-AZ7000ES. Two subwoofers of the same model may be connected simultaneously to the receiver.

Easy Listening

Listen to all your favorite tracks. The STR-AZ7000ES supports audio streaming via Bluetooth®,¹¹ Wi-Fi, Chromecast built-in,⁷ Spotify Connect, and Apple AirPlay®.⁶

Works with SONOS

From the SONOS app you will be able to turn on your A/V receiver, switch to the designated input source for playback, and control the volume of your A/V receiver.^{5, 6}

Voice Assistant Compatibility

Connect to your home’s other devices, and use voice control to operate your receiver with Google Assistant.⁸

Compatible with Sony Music Center app

Control the STR-AZ7000ES from your mobile device for operations like source selection, zone control, sound field control, volume control, media playback, and voice assistant setup.⁶

Roon Tested

Enjoy seamless integration with your Roon system for full access to all your music—including your digital files and streaming services—all in one place.⁶

Updated DSEE Ultimate for enhancing streaming music quality

Using AI-based technology, DSEE Ultimate accurately upscales audio to near-high-resolution sound quality.

Built for custom install

Support for Integration

With support for the leading control and remote monitoring systems like Control4, Savant, Crestron, and OvrC, the STR-AZ7000ES is built for integration.⁶

Flexible setup options

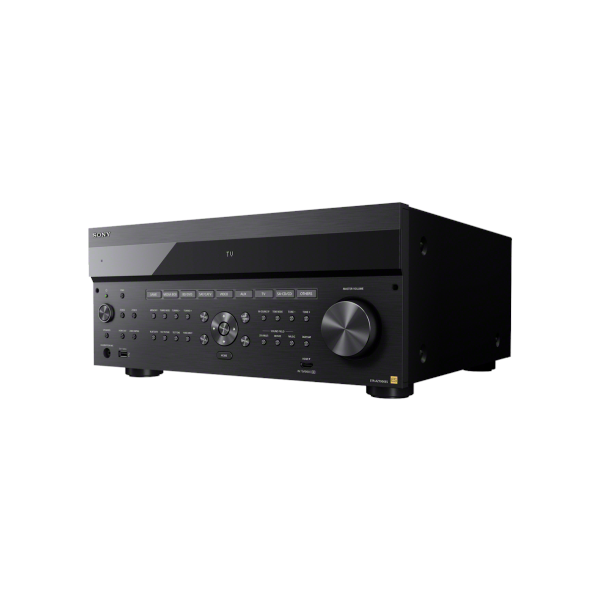

Installing the STR-AZ7000ES is easy. Setup can be performed either via the front panel or through the onscreen Graphical User Interface (GUI).

13.2 Channel Pre Outputs

Equipped with full 13.2 ch pre-outputs for extended connectivity flexibility

USB Front Input with settings save option

Using the front mounted USB, you can easily apply system updates and during setup, save all receiver settings to a flash drive for backing up and porting over to another unit to replicate settings.

Three 12-volt triggers

Equipped with three 12-volt triggers for external peripherals, amplifiers, and more.

Three IR Repeaters

Three IR repeaters (1-in, 2-out) for external device control.

Ping Button

Ping button for easy IP recall on front panel of receiver.

RS232C Port

RS232C port for control system configuration.

Zone 2 & Zone 3

Flexible multi-zone distribution capability.

Covered by Sony® ES 5-Year Limited Warranty

All ES-Series receivers come with an 5-year parts and labor warranty.

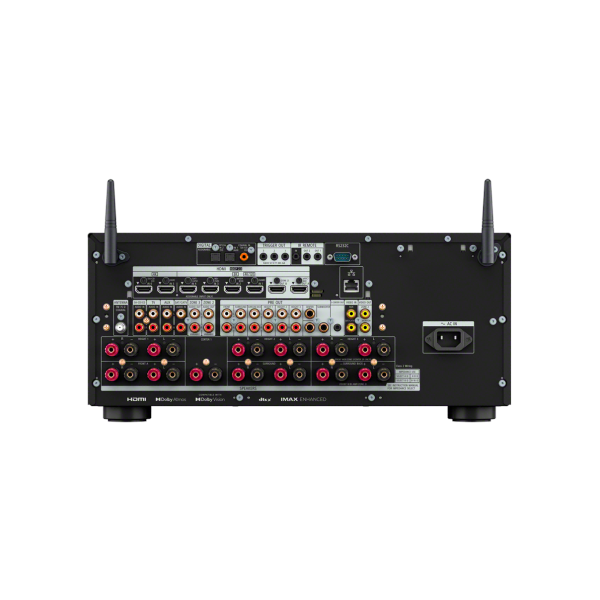

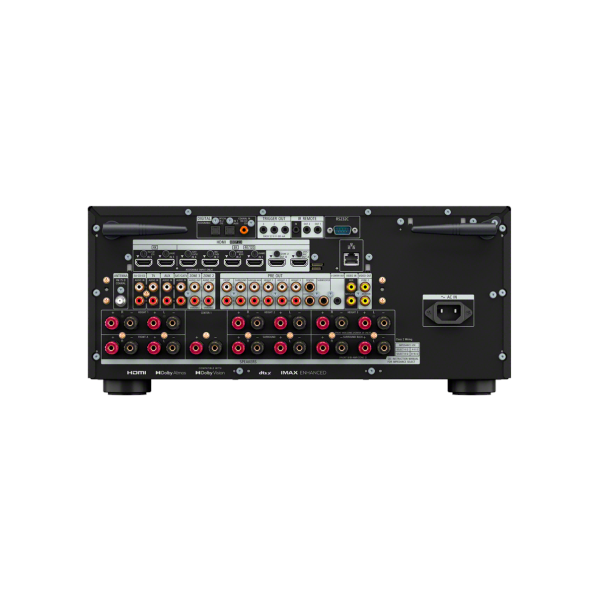

Interface

Input and Output Terminals

Composite Monitor Out: 2, Opt: 2, Coax.: 1, Analog Audio In: 4, Pre Out (Subwoofer): 2, USB Front(ver) / Rear(ver): 1/0, Ethernet Port (Power over Ethernet): 1(0)

HDMI supporting HDCP2.2 In/Out

HDMI Input supporting HDCP2.2(Front): 6(0), HDMI Output supporting HDCP2.2: 2

Speaker Output Terminals

Front A, Center, Surround

Auto Speaker Calibration

Calibration Features

D.C.A.C. IX / D.C.A.C. EX / Advanced D.C.A.C. / D.C.A.C.: D.C.A.C. IX, Speaker Relocation: Yes, Phantom Surround Back: Yes, Automatic Phase Matching: Yes, Calibration Mic: Stereo

Decoding Format for HDMI

Decoding Format for HDMI

DSD: Yes (Up to 2.8MHz 5.1ch), LPCM: Yes (Up to 192kHz/24 bit 7.1ch), DTS HD MA / DTS HD HR: Yes/Yes, Dolby TrueHD/Dolby Digital Plus: Yes/Yes, DTS / DTS-ES (Matrix6.1 / Discrete6.1): Yes/Yes, DTS 96/24: Yes, DTS:X: Yes, Dolby Dual Mono: Yes, Dolby Atmos: Yes

Decoding Format for USB/Network Client

Hi-Res Format

DSDIFF(DSD), DSF, WAV(LPCM), AIFF(LPCM), FLAC, ALAC

Custom Install & Control Features

Zone2 Audio

2nd A: Speaker(Variable) / Line (Variable, Fixed) / HDMI(Fixed)

IR Repeat (In/Out)

Yes(1/2)

General Features

Power Consumption

540W

GUI (Graphical User Interface)

Yes

Power Requirement

120V 60Hz

Auto Standby

Yes

Attachment

Calibration microphone, Calibration mic stand, FM wire antenna, AC power cord, Remote control, R03 (size-AAA) batteries, Front cover

Size & Weight

Dimensions (W x H x D)

430x194x440mm

Weight

21.8kg

Video Features

A/V SYNC

Yes(Variable)

4K 60p 4:4:4 Support

Yes

3D over HDMI

Yes

HDR (High Dynamic Range)

Yes(HDR10, Hybrid Log Gamma, Dolby Vision)

Audio Return Channel

Yes

BRAVIA® SYNC™ (CEC Control)

Yes (System Audio Control, System Power Off, RC Pass Through, Language Follow, One-Touch Play)

4K Output

HDMI Video Output Capability: 8K, 4K, 1080p, 1080/24p, Deep Color (up to 36 bit), Triluminous Color (xvYCC)

HDMITM Pass Through

Yes

Audio　Features

Sound Enhancement Technologies

Pure Direct, DSD Native Playback, Center Speaker Lift Up, In-Ceiling Speaker Mode

Network Connectivity

Network features

Bluetooth Receiver, Bluetooth Transmitter, Wi-Fi

Spotify Connect

Yes

Amplifier

Number of Amp. Channels

13 CH

Power Output

Front: 150W + 150W (8ohms, 1kHz, THD 0.9%)

Speaker Impedance

4ohms-16ohms

Sound Field

2ch Stereo, Direct, Auto Format Decoding, Multi Stereo, Audio Enhancer

Tuner Features

FM/AM

Yes/-

Preset Channel (Sirius/XM/FM/AM)

TTL30 (30/0)
