Screen Innovations Solo 3 Indoor - 137" (73x116) - 16:10 - Slate 1.2 - S3WF137SL
Item #: SI-S3WF137SL
$7,015.00
Need Help? Chat With an Expert or Call 888-392-4814
Leaves Warehouse within 2-3 Weeks
Free Shipping
Overview
Screen Innovations
Solo 3 Indoor
The future of screens, made modern.

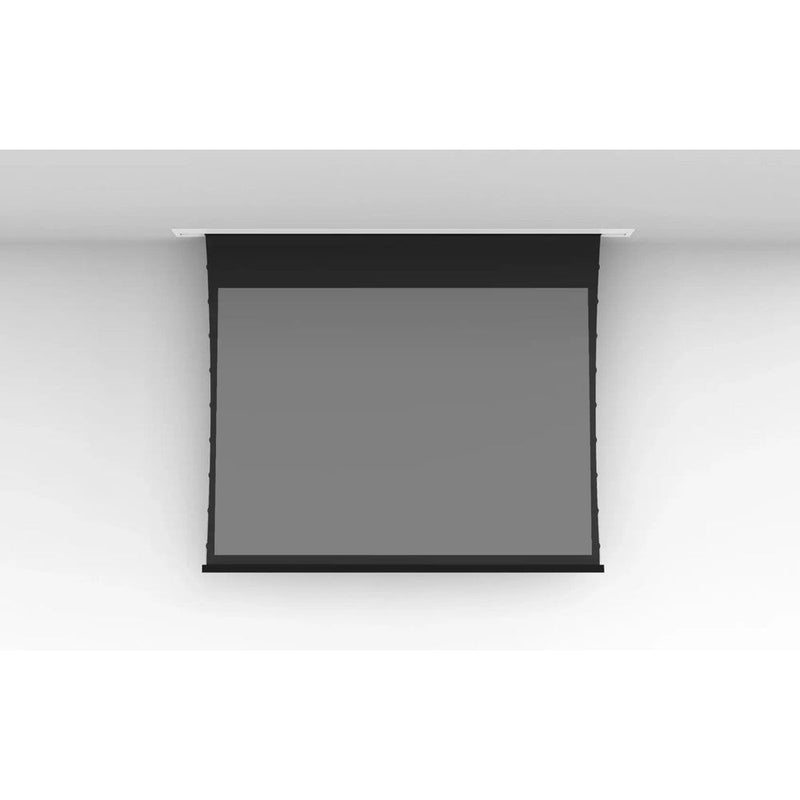

- Flush Mount
- Projector Central – Best of Show 2022
Big Dreams, Made Reality
Dream up your perfect home theater, then think bigger! Solo 3’s patent pending design pushes projector screens to the limit of class and functionality.
Flush or External Mount
Choose to hide away or display your screen with our different mounting options.
Flown Mounting Option
Levitate your Solo 3 at any level!
Wired or Wireless
Stay connected with our low voltage and AC for customizable wired or patented wireless power choices.
- Lithium Rechargeable
- DC – Low Voltage
- AC
Control Options
All Control options included, powered by Moab control board.
CNC Tab Tension
Guaranteed flat image for the life of the product.
Clean, Modern Design
Timeless and classic, our crisp design compliments any modern décor.
Specifications
Sizes
375: Max diagonal 110” (external mount only)
575: Max diagonal 160”
675: Max diagonal 200”
Ratios
16:9
16:10
2.35:1
Colors
External – Available in White and Black color options
Flush – Available in White
Compatible Power Sources
Configurable in 3 available motor types:
- Lithium Rechargeable – RTS (available in 375)
- 24v DC – 485
- 110v AC* – 485
- *220v AC available for international
Power
- Low voltage power with operating voltage class 2, 24–28v DC
- Power supply features include over/under-voltage, over/under current, and thermal protection for all devices in the system when used with (optional) Janus
- Electrostatic-isolated and galvanic isolation when used with (optional) Janus
- Power must be derived from a Screen Innovations-supplied power source for all low voltage and charging
Control Options
- Contact closure (optional for RTS)
- 12v trigger (optional for RTS)
- Built-in Infrared (optional for RTS)
- RF Remote (optional for 485)
- RS/RF-485 Keypad
- IP Control options (via TRO.Y/ LinkPro Z)
- Native C4 options (via C4MI)
Systems We Integrate With
SOLO 3 – 485 screens – AMX, BCP, Control4, Crestron SIMPL, Crestron Home*, Dry Contact Closures, Elan, IP*, IR, Lutron, Loxone, RS-232*, RS-485, RTI*, Savant, URC, 0-10v, 12v Trigger
SOLO 3 – RTS screens – Alexa, Control4, Crestron SIMPL, Crestron Home*, Dry Contact Closures*, Elan, Google Home, Josh.ai*, IP*, IR*, Lutron, Loxone, RS-232*, RS-485*, RTI*, Savant, URC, 12vTrigger*
*when using a compatible gateway
Environment
Operating temperature range is normal ambient (32 to 110 degrees) and humidity levels up to 90%. Not meant for wet environments.
Available in standard sizes only. All dimensions are listed as seamless. Screen materials may expand and contract slightly over time. SI allows a 1.5% tolerance within the viewing surface.
Available Materials
| Material | Gain | ALR | Acoustic |
|---|---|---|---|
| Slate 1.2 | 1.2 | 65% | No |
| Pure White | 1.3 | 10% | No |
| Pure Gray | 0.85 | 15% | No |
| Slate AT 1.2 | 1.2 | 65% | Yes |
| Pure White AT | 1.3 | 10% | Yes |
| 360 | 0.85 | 15% | No |
| Solar White | 1.3 | 10% | No |
| Solar Gray | 0.9 | 15% | No |
Compatible accessories: TRO.Y™ 2, Pegasus, Bond Bridge Pro, KRATOS™, Moab, TaHoma Switch, Sidekick, Smart Light Switch, Smart Plug, RTS Repeater, Solo Remote, SI IR Remote, 485 DecoFlex Digital Keypad 6/8-Button, DecoFlex WireFree 1 – 5 Ch, Spike Kit, USB Programming Kit, Charging Cable - Solo 3, Solo 3 Indoor Flown Kit, Solo 3 Indoor Brackets.
Supporting Documentation
Projection Surface
Slate 1.2
ALR for the world.
We spent three years in the lab to create a flexible, ALR screen that can go massive, and adheres to only the strictest visual acuity and uniformity standards. Most importantly – it had to be affordable.
Flexible
Thanks to its flexible chemical makeup, the multi-particle Slate material can roll tightly and stretched when necessary. That means we can utilize it in a lot of unique applications such as Zero-G, Transformer, and Zero Edge. There is also the added benefit of being able to roll it on a small core for shipping simplifying logistics challenges.
Large & in charge
Your Slate screen comes from a roll that is up to 189in tall. That equates to sizes up to 375in diagonally in 16:9. We can also seam the material with our proprietary micro-seaming technique, creating images nearly double that size. Imagine a 16ft tall optical screen!
Surface Characteristics
- Designed for Ambient Light Rejection - Rejects 65% of Ambient Light.
- Front Projection Material
Surface Material Properties
| Maximum Size | 244" Diagonal |
| Peak Gain | 1.2 |
| Half Gain | 35 Degrees |
| Ambient Light Rejection Value | 65% |
| Front / Rear Projection | Front |
| Resolution | up to 8K |
| Minimum Throw | 1.5 x width |
| Edge Blend Capable | No |
Specs
Item #: SI-S3WF137SL
Manufacturer Part #: S3WF137SL
