Marantz Cinema 40 Reference 9.4 Channel AV Receiver with 125W, 8K And 7 HDMI Inputs
Item #: Marantz-Cinema40
$3,800.00
Leaves Warehouse within 5-10 Business Days
Free Shipping
CINEMA 40 AV Receiver
A reference-level AV Receiver, CINEMA 40 is a statement piece engineered with the latest immersive audio formats poised to deliver rich, spacious, and enveloping Marantz sound.
Engineered To Perform
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.
CINEMA 40
 |  |  |
 | Exquisite DesignA modern expression of timeless design principles, CINEMA 40 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel. |
Peerless PerformanceImmersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound. |  |
 | Technology LeaderCINEMA 40 comes complete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment. |
Sound Master TunedThe Marantz Sound Master meticulously tuned CINEMA 40 for amazing performance with careful parts selection to create the Most Musical Sound in your home. |  |
For the Soundtrack of Your Life
HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.
Search for Songs Across PlatformsHEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD. |
Your Whole Home in One PlaceHEOS-enabled devices allow you to control multiple rooms, all with the HEOS app. |
Search for Songs Across PlatformsUse your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favorites. |
Key Technologies
TIDAL
TUNE-IN
DEEZER
CONTROL4
OVRC
HDMI EARC & ARC
Dirac Live Upgradability
SIRI
AMAZON MUSIC
BLUETOOTH
8K ULTRA HD
ROON
JOSH.AI
HI-RES AUDIO
HEOS BUILT-IN
DTSX
Imax Enhanced
DOLBY ATMOS
DOLBY Vision
APPLE AIRPLAY
AMAZON ALEXA
SPOTIFY
IHEART RADIO
PANDORA
Cinema 40 is a true statement piece designed for enthusiasts who crave full immersion.
Details and Specifications
Power Amplifier |
|
|---|---|
| Number of Powered Channels | 9 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 125 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 165 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 235 W |
| 70% Guarantee | Yes |
| Discrete Power Amplifier | Yes |
| Amplifier Topology | Class A/B |
| Current Feedback Topology | Yes |
| Bi-Amp Drive | Assignable |
Multichannel Surround Technologies |
|
| DTS | DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
| Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| Other | IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo2 |
| Max Number of Processing (Preamp) Channels | 11.4 |

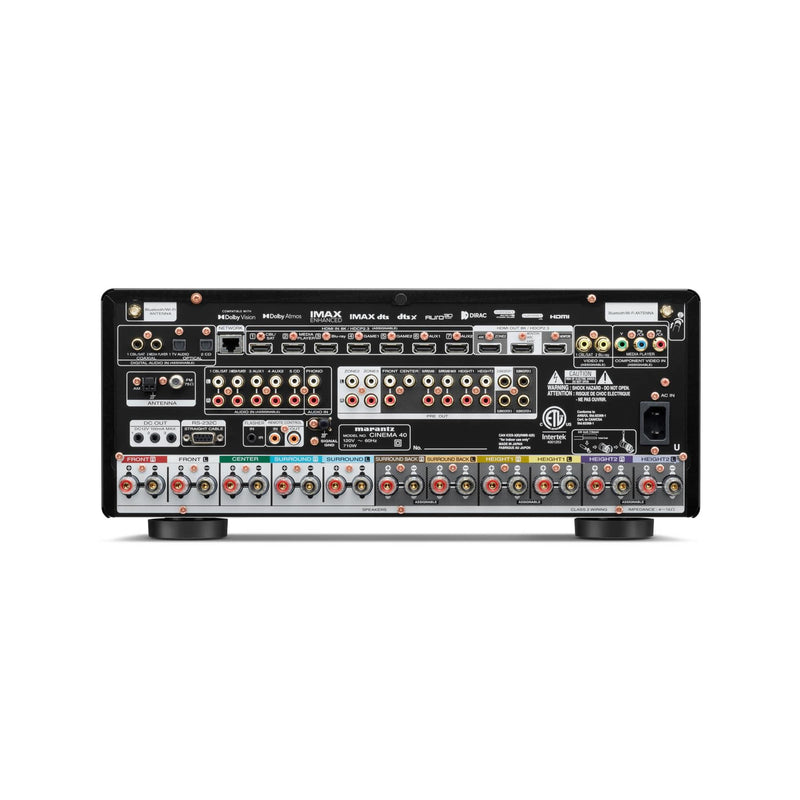

Inputs Outputs |
|
| Composite In / Out | 2 / 0 |
| Component In / Out | 1 / 0 |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out via HDMI | Yes |
| Analog In / Fixed Level Out | 5 in / 0 out |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: Analog / Digital | 2 / 0 |
| Multichannel Preamp Out | 11.4 |
| Subwoofer Out | 4 (independent) |
| 7.1 Multichannel Input | No |
| Number of Speaker Terminals | 11 |
| Speaker A / B | Assignable |
| Multi-Room Speaker Terminal | Assignable |
| Front Inputs | USB-A |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
| AM/FM Tuner | Yes |
HDMI |
|
| Total HDMI Inputs / No. Support 8K | 7 / 7 |
| HDCP2.3 Support | Yes |
| HDMI Outputs: Main / Zone | 2 / 1 |
| Analog to HDMI Video Conversion | Yes |
| HDMI Upscaling | 1080P/4K to 8K |
| Max Resolution @ Framerate | 8K @ 60Hz, 4K @ 120Hz |
| Audio Return Channel | ARC, eARC |
| Video Dynamic Range | HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
| ALLM (Auto Low Latency Mode) Pass-through for Gaming | Yes |
| Variable Refresh Rate / Quick Frame Transport | Yes / Yes |
| HDMI Pass-Through in Standby Mode | Yes |
| CEC | Yes |
| DSD Audio over HDMI | Yes |
| Auto LipSync | Yes |
Performance Technologies |
|
| Copper Plated Chassis | No |
| Toroidal Power Supply Transformer | No |
| Hyper Dynamic Amplifier Modules (HDAM) (List Version) | Yes |
| Pure Direct Mode | Yes |
| Gold Plated RCA Terminals | Yes |
| Clock Jitter Reducer | Yes |
Acoustic Room Correction |
|
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes / Yes |
| Dirac Live Upgradability | Yes |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
Music File Support |
|
| Lossy Formats | MP3 / WMA / AAC |
| Lossless Formats | FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 |
| DSD Audio | 2.8MHz / 5.6MHz |
| Gapless Playback | FLAC, WAV ,ALAC ,DSD |
| Compressed Audio Enhancer: MDAX2 | Yes |
Network Audio Sharing |
|
| HEOS Multi-room and Streaming | Yes |
| AirPlay Audio Streaming | Airplay 2 |
| Internet Radio | TuneIn |
| Spotify* | Spotify Connect |
| Pandora | Yes |
| SiriusXM | Yes |
| Other Streaming Services * | Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix |
| Roon Tested | Yes |
Network Connectivity |
|
| Ethernet Ports | Yes |
| Wi-Fi (Include Version / Band) | Yes |
| Bluetooth (Include Version) | Yes |
| Bluetooth Re-transmit for Bluetooth Headphones | Yes |
Smart Home Integration and Control |
|
| Voice Assistant Compatibility | Alexa / Google Voice Assistant / Apple HomePod |
| App for Smart Phones & Tablets (iOS & Android) | Marantz AVR Remote App, HEOS |
| HEOS Multi-Room Integrated | Yes |
| HEOS Link Compatibility: IR / IP | Yes / Yes |
| Multi-Room Zones | 3 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | 2 Ch / 2 Ch / Yes / Yes |
| Zone Audio Output: Speaker / Preout | Yes / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| Control Connectivity | IP Control / RS232 Control / Web Control / App Control |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Output | 3 |
| HDMI Diagnostics | Yes |
Others |
|
| Front Display | 2 Line FLD + Port Hole OLED |
| GUI Languages | 9 |
| Setup Assistant | Yes |
| Smart Select on Remote | Yes |
| Firmware Update by Network / USB | Yes / Yes |
| ECO Mode | Yes |
| Auto Power Off | Yes |
| Sleep Timer | Yes |
General |
|
| Available Colors | Black / Silver-Gold |
| Metal Front Panel | Yes |
| System Remote Control | RC048SR |
| Power Consumption in W | 710 |
| Power Consumption No-Sound (ECO on/off) in W | 65 / 110 |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
Dimensions |
|
| Antenna: Horizontal: (W x D x H) in inches | 17.3 x 16.2 x 7.3 |
| Antenna: Vertical: (W x D x H) in inches | 17.3 x 16.2 x 10 |
| W/o Antenna: (W x D x H) in inches | 17.3 x 15.8 x 7.3 |
| Weight in lbs. | 33.3 |
What's in the box |
|
| Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord | |
