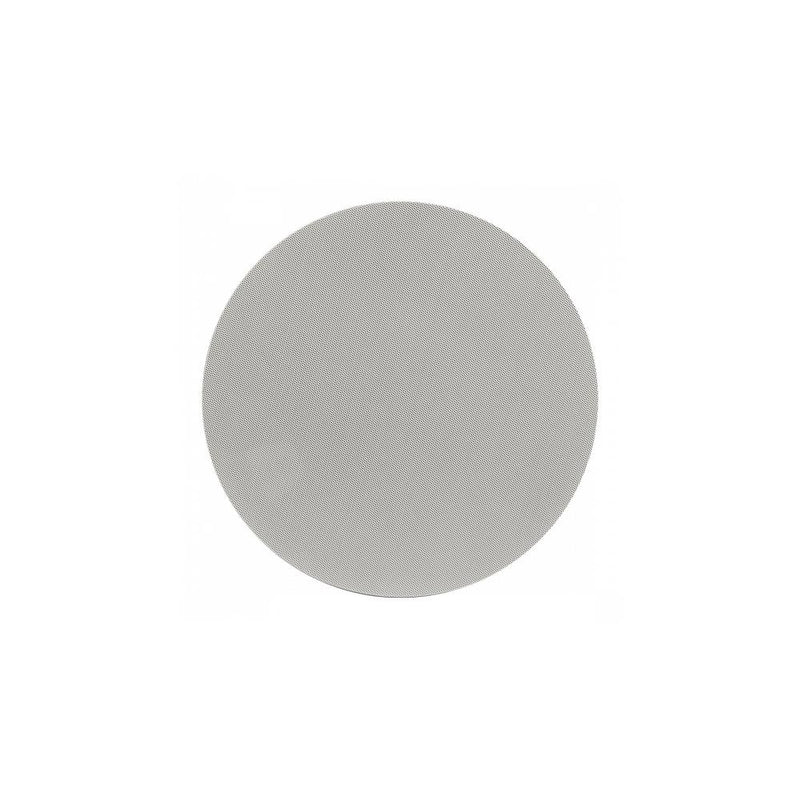

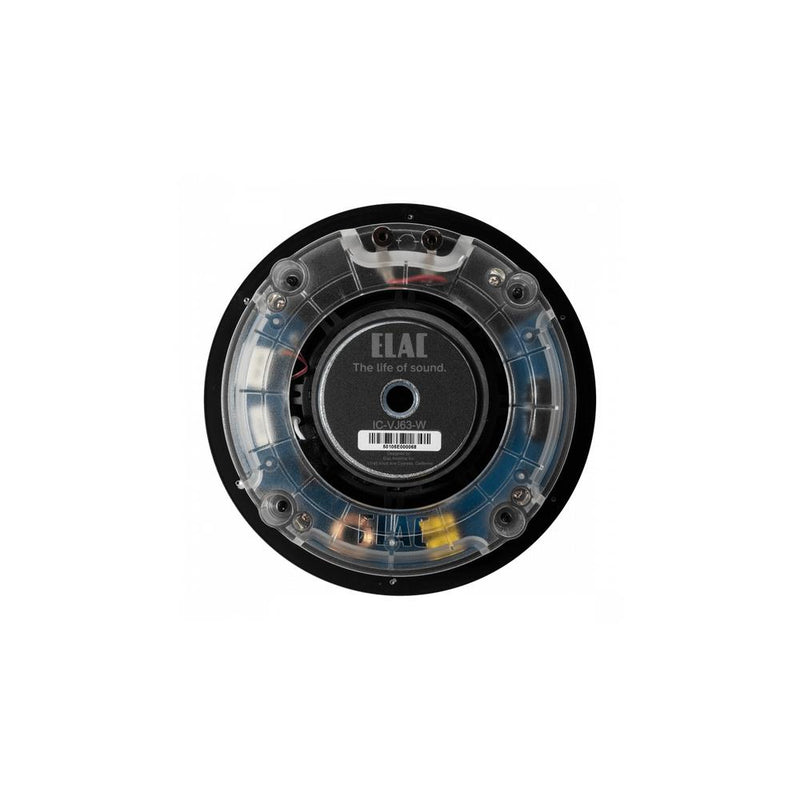

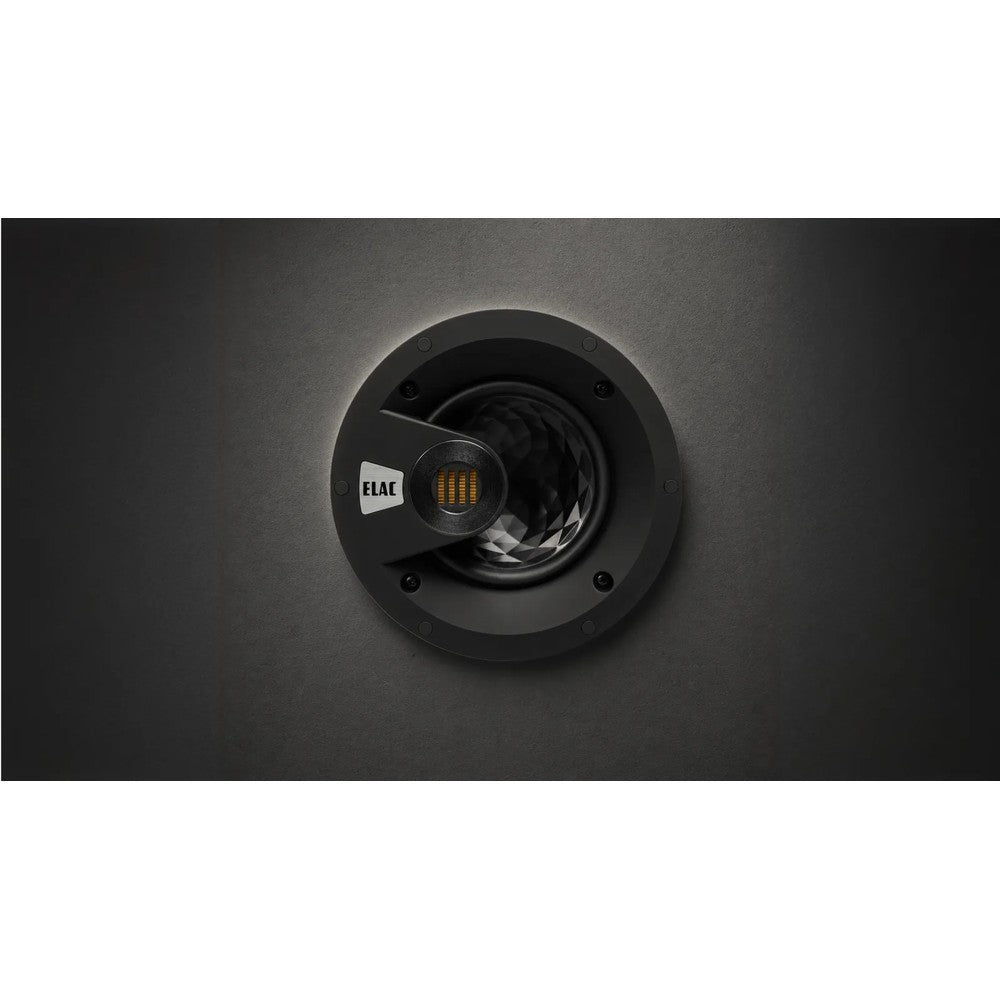

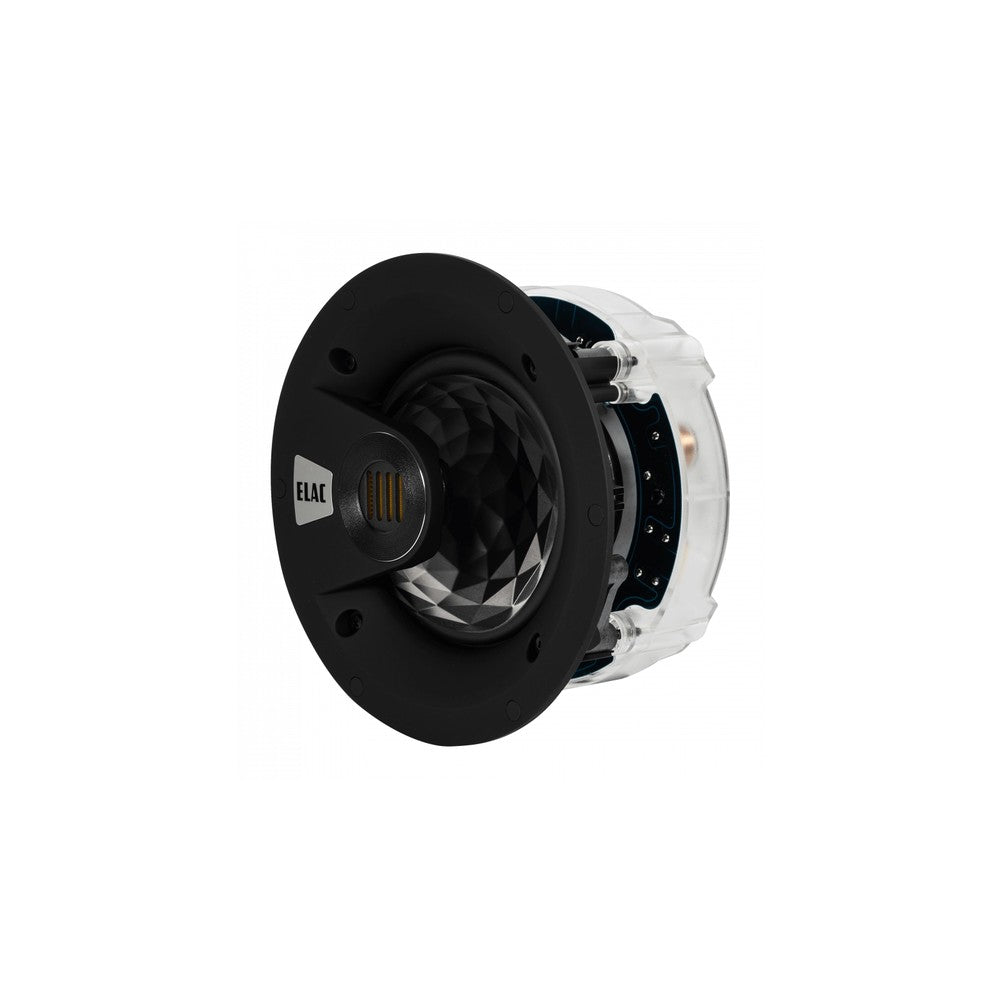

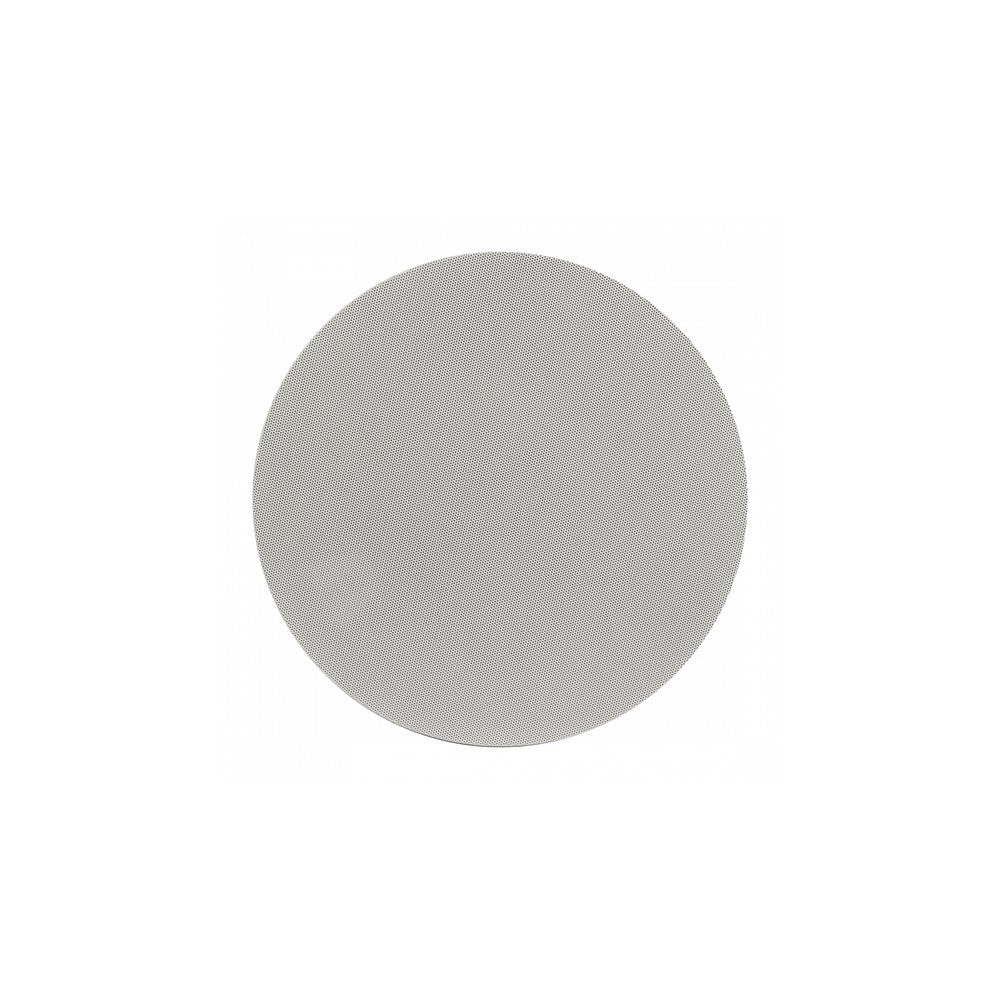

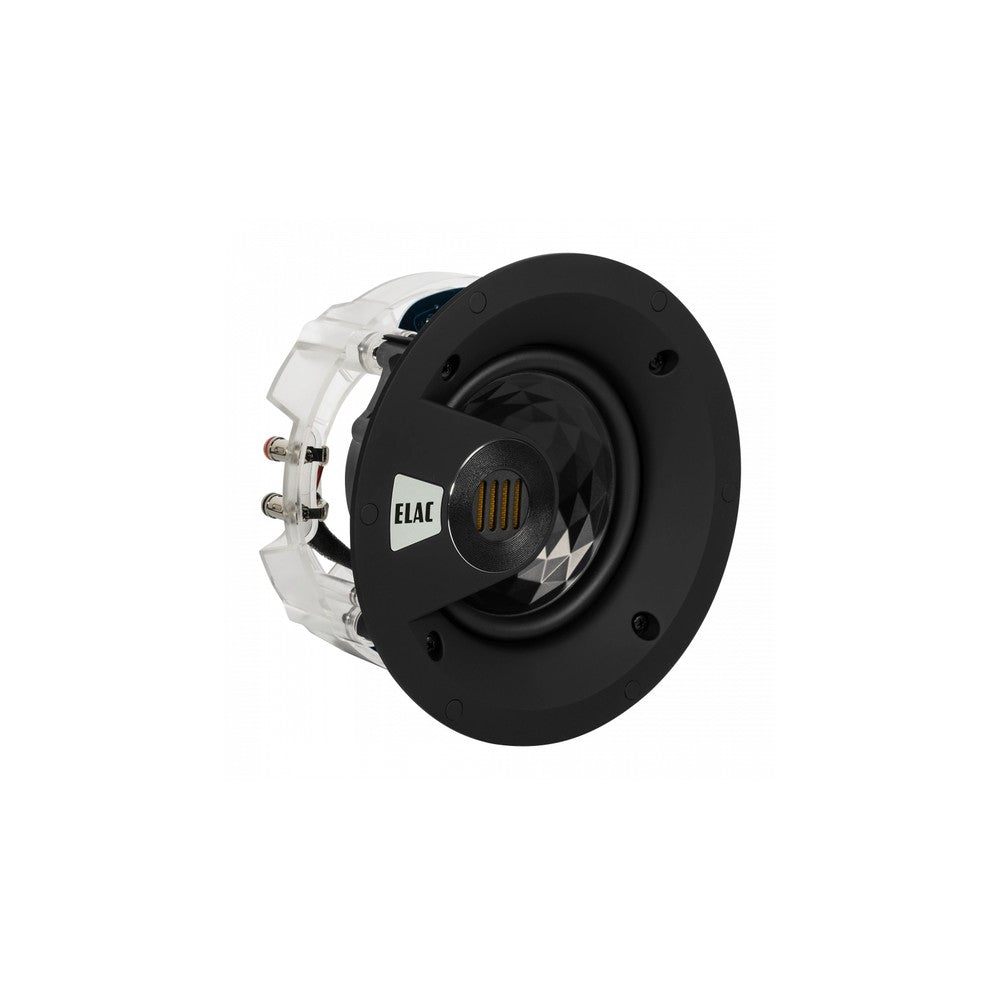

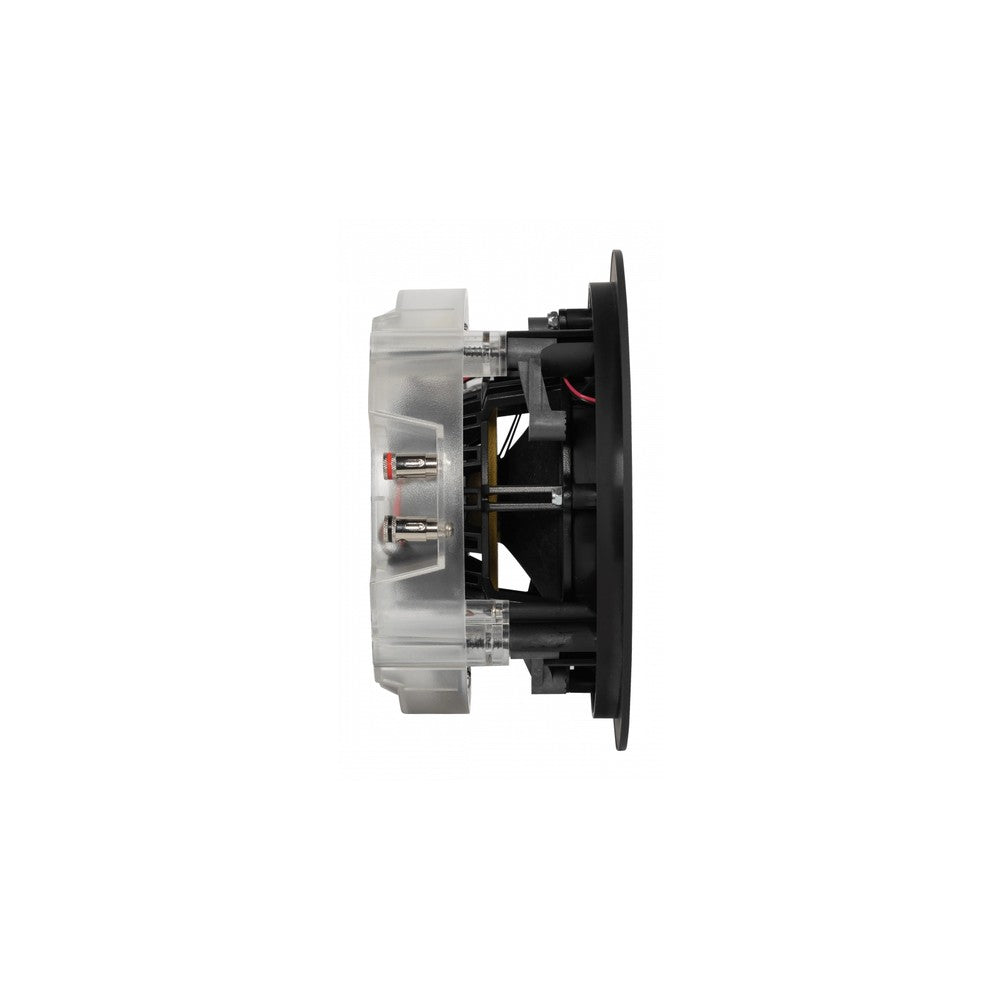

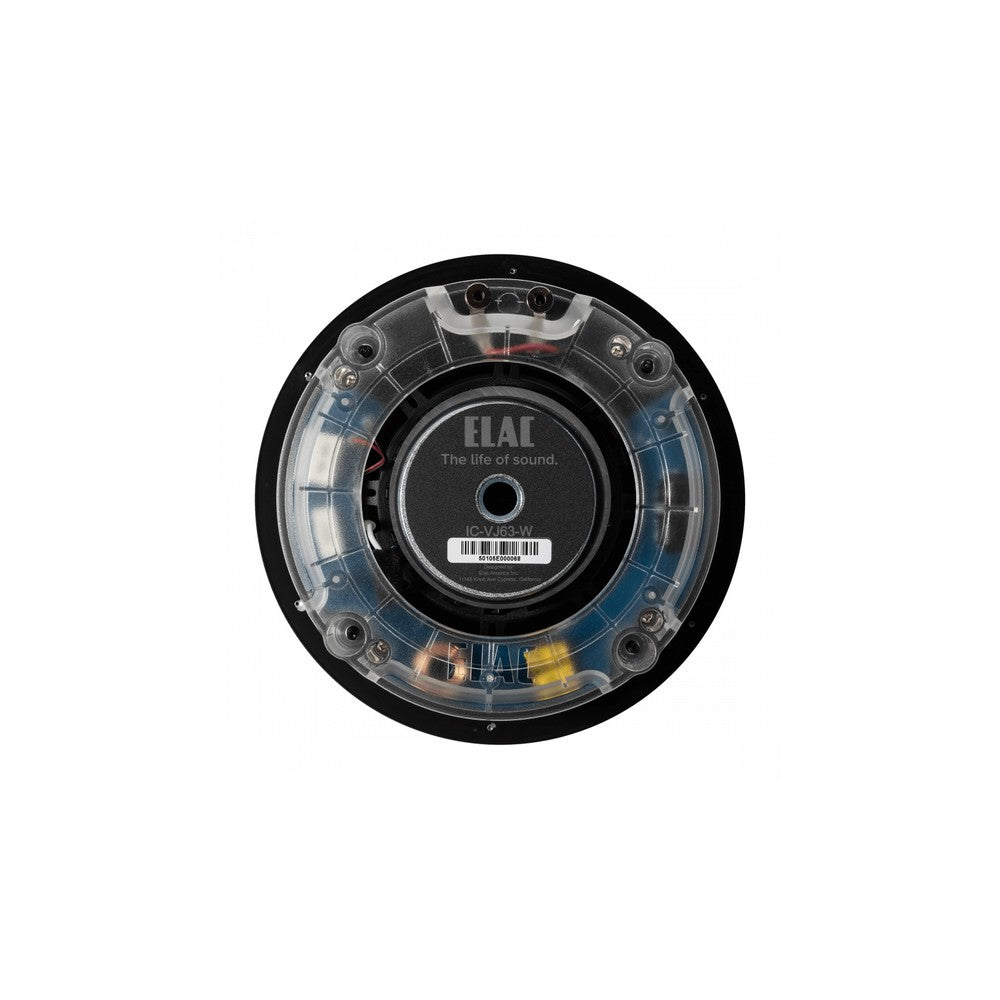

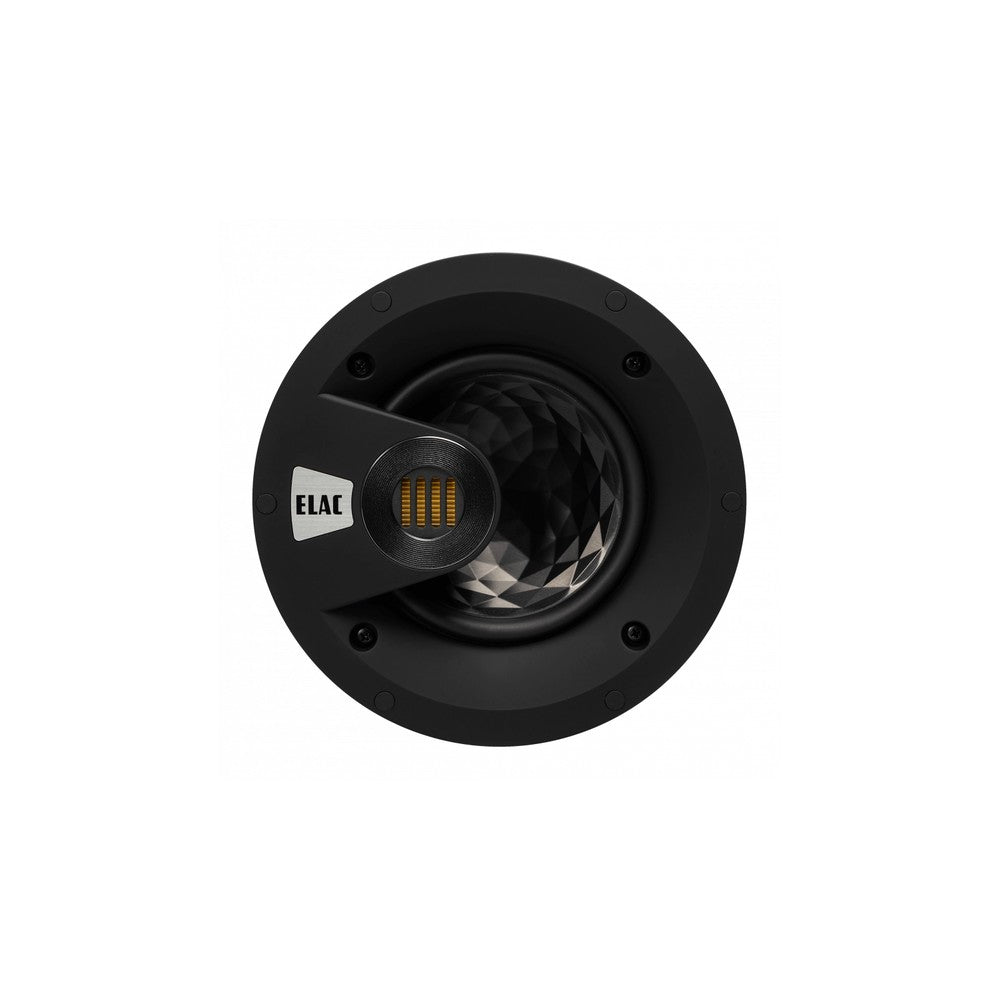

ELAC Vertex III IC-VJ63-W 6.5" In-Ceiling Speaker - White - (Each)

Item #: ELAC-IC-VJ63-W

$1,099.00

Leaves Warehouse within 2-3 Weeks

Free Shipping

Overview

Vertex III - 6.5" In-Ceiling Speaker with JET (Each)

Using the same technology and materials of the highly-acclaimed Solano, Vela and Concentro speakers, the Vertex Series III combines the aesthetics of an architectural speaker with the performance and dynamics of the Vela series.

The easily installed Vertex Series III speakers utilize the same components throughout the series to ensure a perfect sonic match across the line.

Bringing Core Technology

Bringing Core Technology

To Custom Audio

JET Folded Air-Motion-Transformer ELAC’s JET tweeters enthral with its lightning-fast response and wide dynamic range, offering minimal distortion and lots of headroom. A deep spheroid Waveguide is used to improve directivity control and efficiency. Custom-designed Crystal Membrane Aluminum Woofer ELAC’s unique Crystal Membrane woofer is extremely rigid, yet light weight. This woofer is specifically designed to keep up with the speed of the JET Tweeter while delivering detail in low frequency response.

The inimitable JET tweeter

The inimitable JET tweeter

JET 5

ELAC’s JET tweeter is used throughout our loudspeaker range. This high-frequency driver enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a distinctly wider frequency range than conventional dome tweeters. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.

JET Technology

JET Technology

ELAC's Air Motion Tweeter

Air Motion Transformer principle Linear Frequency response > 50 kHz Extended lower frequency range Efficiency 92 dB / W / m Improved signal accuracy Ultra fast transient response - detail resolution

AS-XR Technology

AS-XR Technology

Crystal Membrane

The eye-catching surface of the crystal membrane is more than just an attractive design feature. Increased stiffness through crystal shape of aluminum cone Extended frequency range (XR), smooth roll-off Excellent large signal behaviour Minimized VAS, (lot of bass out of small cabinets)

Specifications

General

Speaker Type
2-way, rear side open
Accessories Included
Cutout template, manual

Drivers

Tweeter
Jet Folded Ribbon
Woofer
6 - inch Crystal Aluminum Cone

Performance

Crossover Frequency
3,000 Hz
Frequency Response
45 to 40,000 Hz
Sensitivity
88 dB at 2.83 v/1m
Recommended Amplifier Power
40 to 120 Watts
Nominal/peak Power Handling
50/120 Watts
Nominal Impedance
4 Ohm

Physical

Finish
Black baffle/White grille

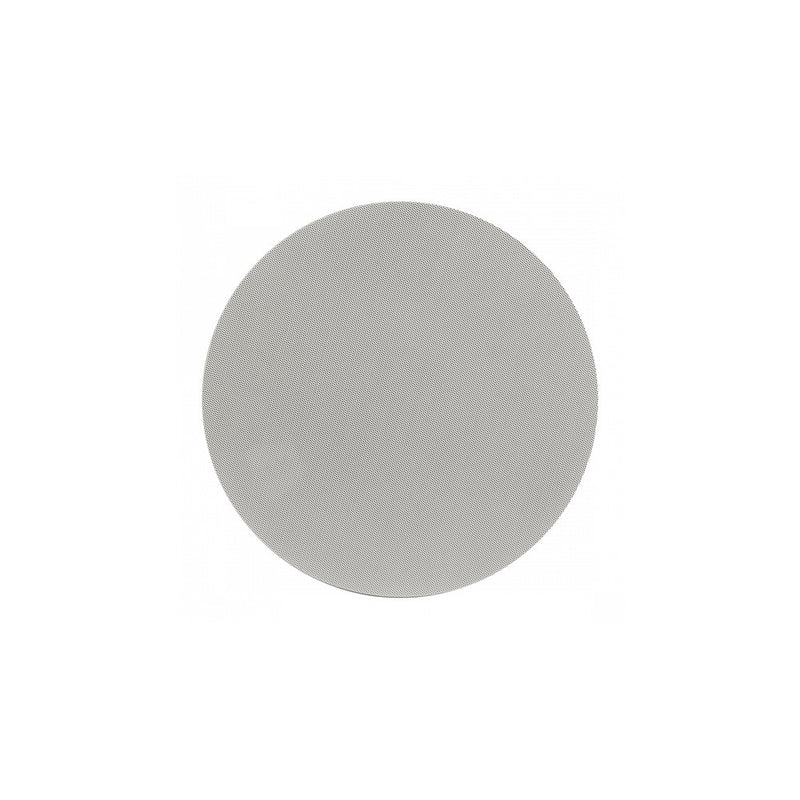

Grille
Metal magnetic / Paintable
Dimensions (diameter)
9.31 in / 236.5 mm
Cut-Out (diameter)
8.11 in / 206 mm
Mounting Depth
4.37 in / 111 mm

Supporting Documentation

Specs

Item #: ELAC-IC-VJ63-W
Manufacturer Part #: IC-VJ63-W

Accessories

Additional Information

Warranty 3 Years
Product Line Vertex III
