Draper Premier 101058SC - 120"(72x96) - Video [4:3] - ClearSound NanoPerf XT1000V

Draper Premier 101058SC - 120"(72x96) - Video [4:3] - ClearSound NanoPerf XT1000V

Item #: Draper-101058SC

Add to Compare

$4,142.00

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 5-10 Business Days

Free Shipping

Overview

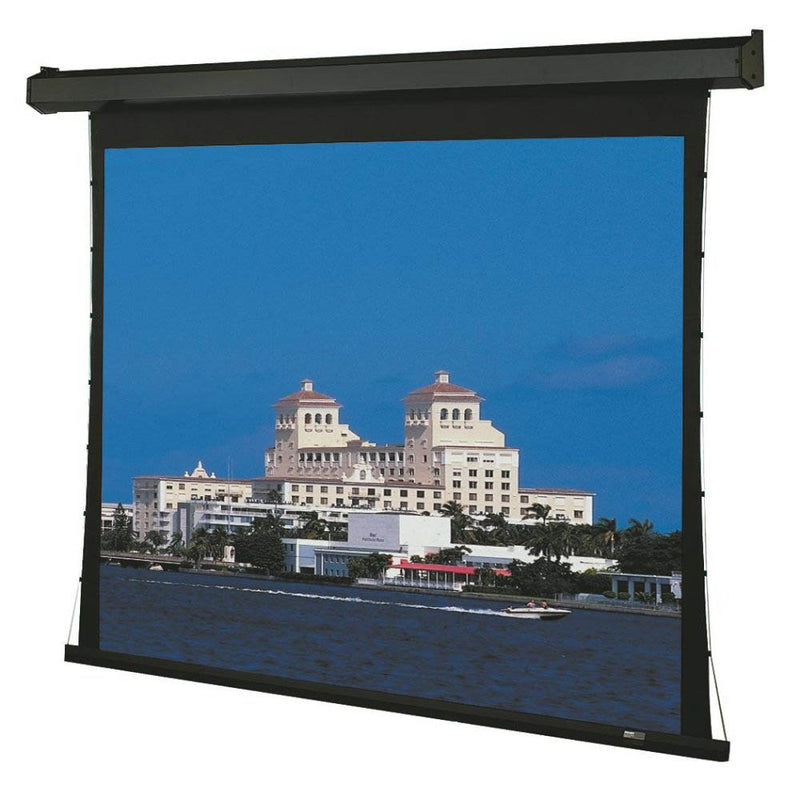

PREMIER ELECTRIC PROJECTION SCREEN

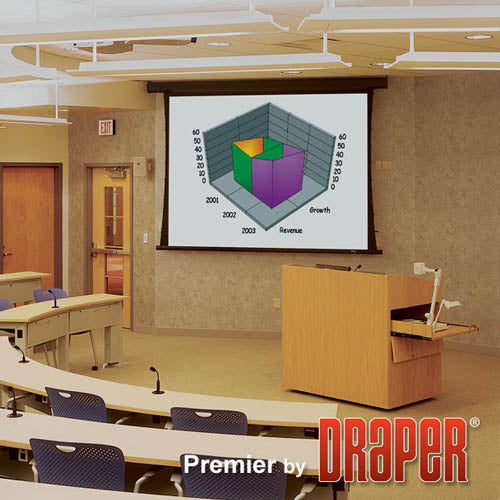

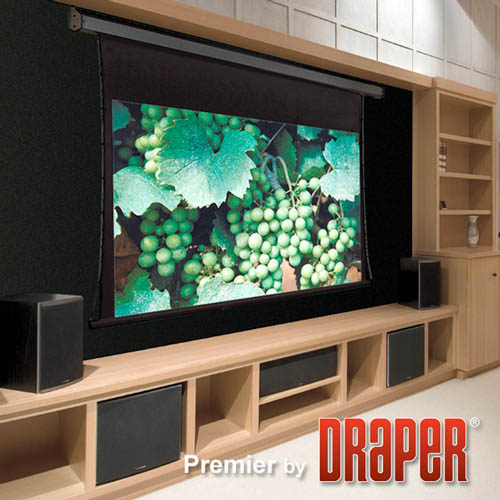

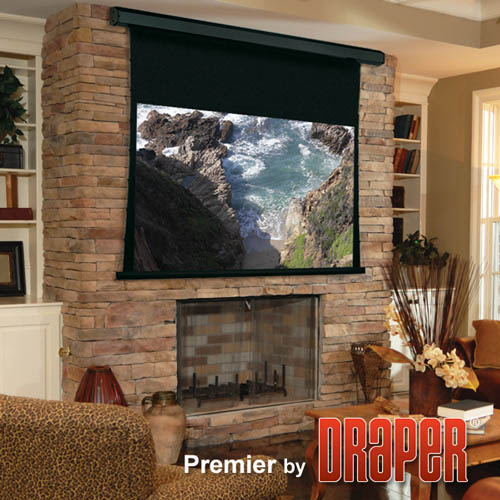

Ideal for conference rooms, classrooms, or home theaters, the economical Premier wall- or ceiling-mounted, electric projection screen offers a tab-tensioned viewing surface. Tab-tensioned screens provide a perfectly flat viewing surface with better image quality. Draper’s RF welded tabs create a more durable seal that eliminates separation and stickiness. Housed in an attractive black pentagonal steel case, the motor-in-roller is insulated to provide the Premier with a smooth, quiet operation.

Viewing surfaces available with this model are:

Matt White XT1000V

Grey XH600V

Pure White XT1300V

CineFlex CH1200V

CineFlex White XT700V

ClearSound NanoPerf XT1000V

ClearSound Perf XT900V

Features

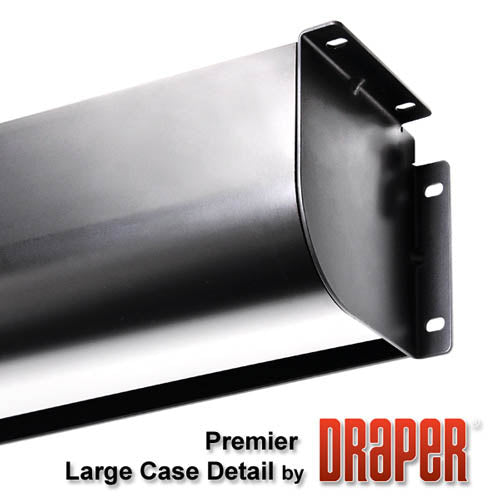

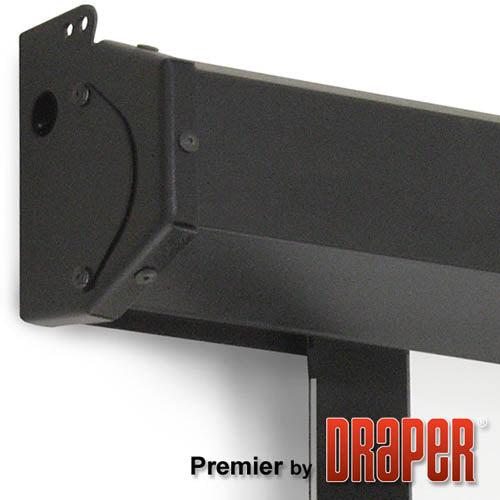

Premier case dimensions are 5-7/8" high x 5-1/4" deep (15 cm x 13 cm). Optional built-in controls and extra drop may increase case length. Steel case with baked-on black plastisol finish (standard), white available upon request. Includes matching endcaps with universal mounting brackets.
Maximum image width up to 12’ (366 cm) wide, depending on surface selection.
For larger sizes, the Premier XL is functionally similar to the Premier and is available in sizes through 16’ (488 cm) wide.

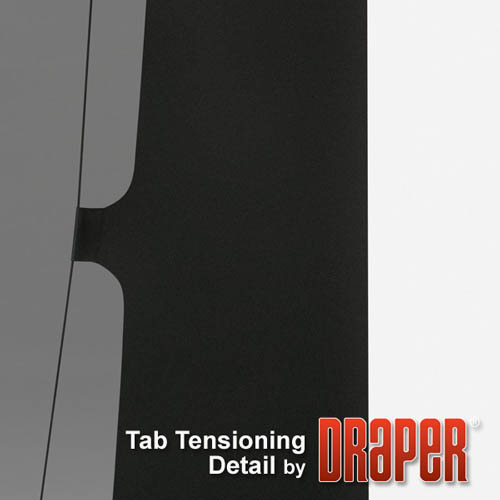

RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years.
Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
Optional white aluminum ceiling trim kit available for recessed installation. Additional 12" black top drop recommended for ceiling-recessed installation.
Optional wall- or ceiling-mounting brackets for added flexibility.
Rear projection surfaces available.
Optional Plug & Play with built-in low-voltage controller (LP) or with built-in quiet, low-voltage controller (QLP). Screens over 119" diagonal on 16:9 format on this screen cannot use QLP.
Includes one 110-120V, 3-position switch (standard). Other control options are available.
Custom sizes available.

Supporting Documents

ARCAT SpecWizard

110 V Instructions

220 V Instructions

BIM Object - Premier ( BIM Support )

CAD Premier (dwg)

CAD Premier (pdf)

Care and Maintenance Instructions

Catalog Page

Ceiling Trim Kit Instructions

CSI 3-Part Specifications

Floating Mounting Bracket Instructions

Floating Mounting Brackets CAD (dwg)

Floating Mounting Brackets CAD (pdf)

Low Voltage Controls Wiring Instructions

Low Voltage Controls Wiring Instructions (230V)

Submittal

Warranty

Projection Surface

ClearSound NanoPerf XT1000V

The CineWhite® UHD-B (Tensioned Matte White) is a 1.3 gain flexible front projection screen material that is certified by the world-renowned Imaging Science Foundation for achieving accurate color reproduction and image fidelity. It has wide diffusion uniformity that allows equal brightness levels over a 180° viewing angle.
