Draper 255036 Edgeless Clarion 120 diag. (72x96) - Video [4:3] - Grey XH600V 0.6 Gain

Draper 255036 Edgeless Clarion 120 diag. (72x96) - Video [4:3] - Grey XH600V 0.6 Gain

Item #: Draper-255036

Add to Compare

$3,325.00

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 5-10 Business Days

Free Shipping

Overview

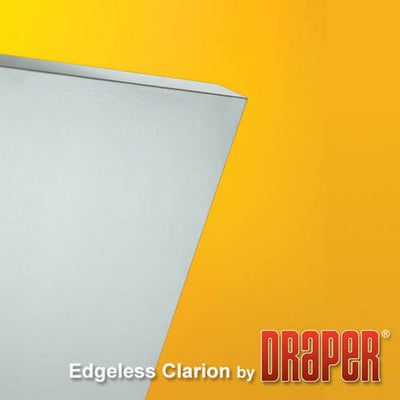

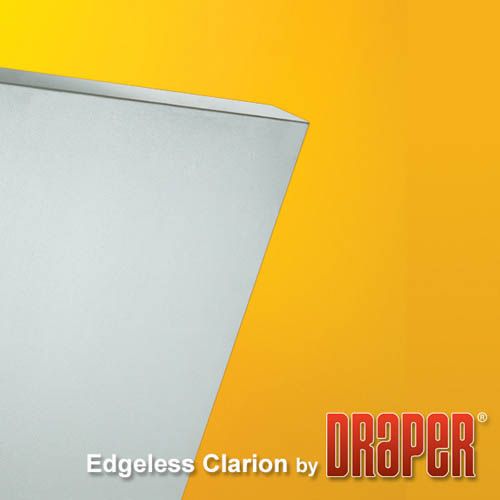

EDGELESS CLARION FIXED PROJECTION SCREEN

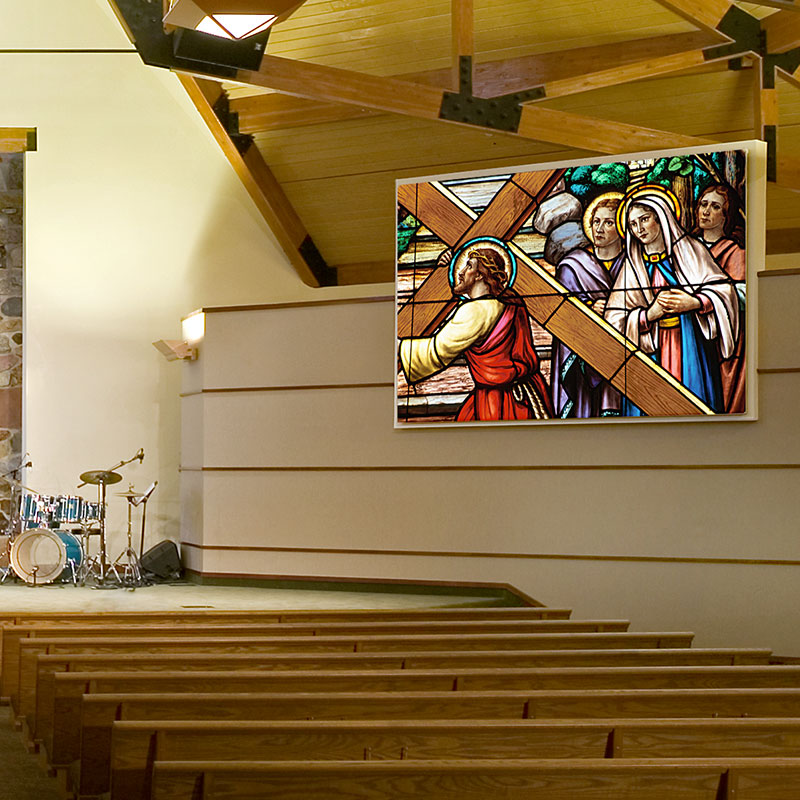

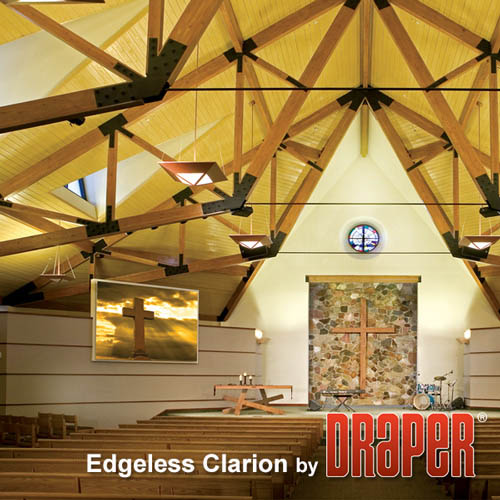

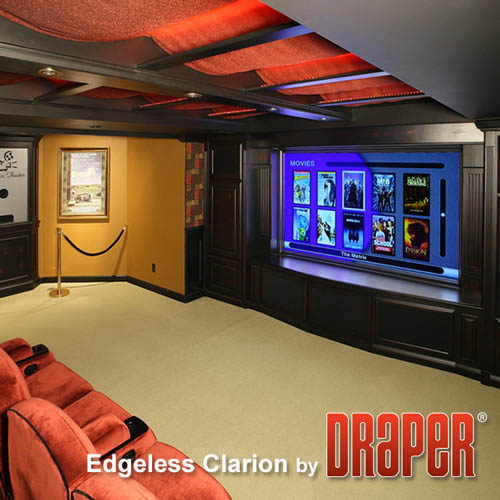

Having no visible frame or border makes the fixed-tensioned Edgeless Clarion perfect for areas that require an unobtrusive projection screen with flat panel appeal. It features a permanently mounted projection screen with a viewing surface that wraps completely around the perimeter frame and attaches to the back side. The Edgeless Clarion also provides a perfectly-flat viewing surface with uniform tension for excellent image quality that is ideal for churches, bowling alleys, universities, retail, or commercial applications. The Edgeless Clarion is available for custom curved applications.

Viewing surfaces available with this model are:

Matt White XT1000V
Grey XH600V
Pure White XT1300V
ClearSound NanoPerf XT1000V
Chroma Key Green

Features

Maximum image width up to 16' (488 cm) wide.

Fixed screen, can be wall-mounted or flown. Mounting fasteners not included.

Viewing surface wraps around perimeter frame and attaches to the back with no visible frame or borders.

Extruded aluminum base frame, equipped with snaps set on 6" (15 cm) centers.

Frame equipped with mounting flanges that match wall brackets.

Custom sizes available.

Supporting Documents

3 Part Specs

BIM Object ( BIM Support )

CAD (dwg)

CAD (pdf)

Care and Maintenance Instructions

Catalog Page

Curved Screens - Catalog Page

Curved Screens - Planning Sheet

Instructions

Snapping Instructions

Submittal

Warranty

Projection Surface

Grey XH600V

Grey front projection surface provides excellent contrast and black reproduction. Intended for use with moderate to high output digital projectors.

Grey color enhances color contrast and black levels in the projected image. Also allows for more ambient light in the audience area than matt white surfaces. Relatively broad viewing cone.

This surface was previously named "HiDef Grey."

This surface is GREENGUARD Children and SchoolsSM certified. Available with black backing and without.

Surface Characteristics

Front Projection Material.
Flexible PVC Composition.
Washable with Mild Soap and Water.
Flame Retardant.
Greenguard™ Certified.
This material does NOT reach half gain.

Surface Material Properties

Seamless Maximum Size	12' Height
Peak Gain	0.6
Half Gain	N/A
Acoustically Transparent	Yes
Front / Rear Projection	Front
Flame Resistance	Yes
