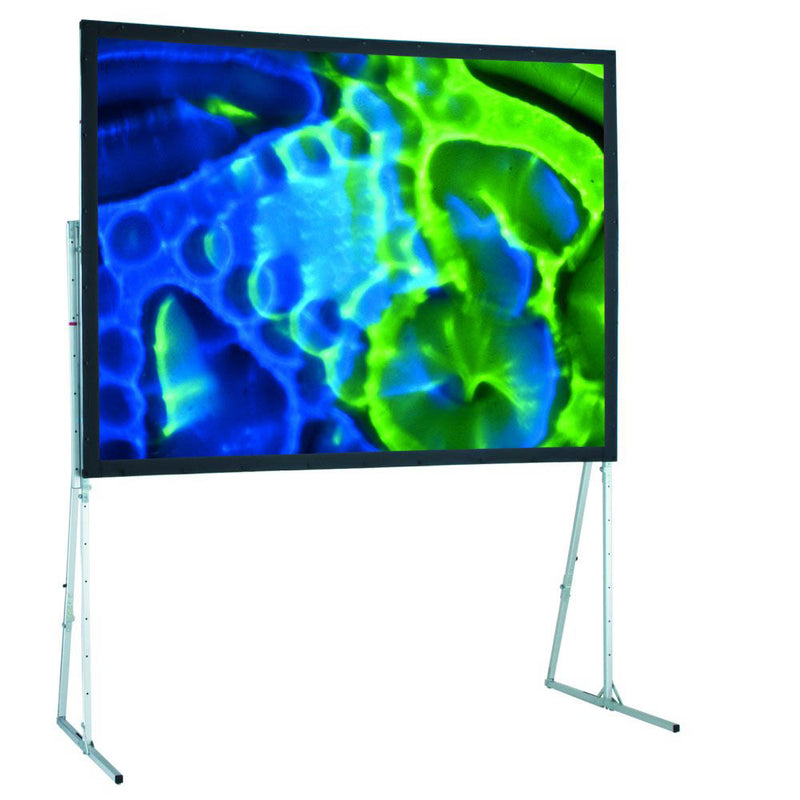

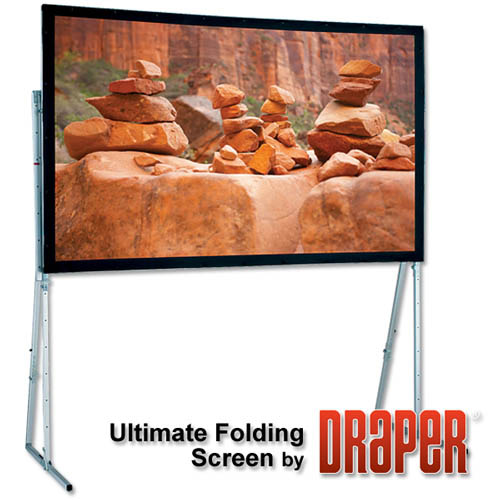

Draper 241184 Ultimate Folding Screen Complete with Standard Legs 159 diag. (78x139) - HDTV [16:9]

Draper 241184 Ultimate Folding Screen Complete with Standard Legs 159 diag. (78x139) - HDTV [16:9]

Item #: Draper-241184

$2,567.00

Add to Compare

Leaves Warehouse within 4-6 Weeks

Free Shipping

Customize

Overview

ULTIMATE FOLDING SCREEN PORTABLE FOLDING SCREENS & DRAPES

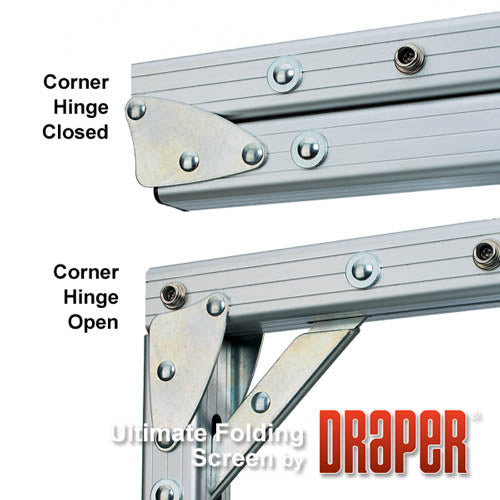

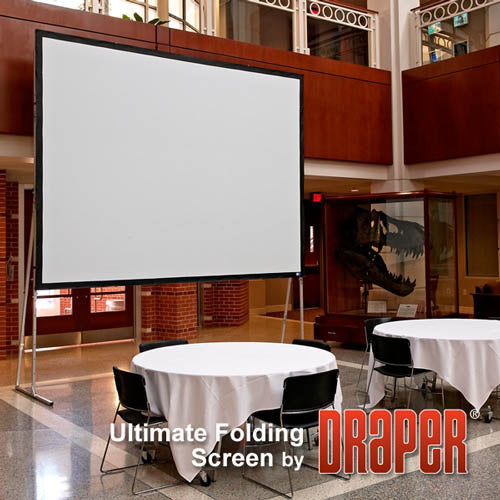

The portable Ultimate Folding Screen’s design simplicity and rugged components withstand the rigors of repeated set-ups and tear-downs in demanding applications. This projection screen features a lock-and-load latch that bites down when the viewing surface is attached providing an extremely rigid frame. The resilient latch retention spring is captured and constantly flexed to prevent the screen from dislodging. A flat viewing surface offers a better image quality that accommodates today’s varied viewing formats. Anodized aluminum tubing provides stability for larger projection screen sizes that are ideal for churches and expo halls.

Viewing surfaces available with this model are:

Matt White XT1000V
CineFlex CH1200V
CineFlex White XT700V

Features

Case dimensions 12" high x 15-3/4" deep x 52" long (30 cm x 40 cm x 132 cm).

Maximum image width up to wide 192" (488 cm) wide, depending on surface selection.

Borders are electronically welded using PVC material that provides straighter, cleaner edges.

Clear anodized 1.25" x .070 (32 mm x 2 mm) wall aluminum tubing frame.

Standard legs support screen in a vertical position. Heavy-duty legs recommended for frame heights greater than 90" (229 cm). Extra heavy-duty legs for frame heights greater than 126" (320 cm).

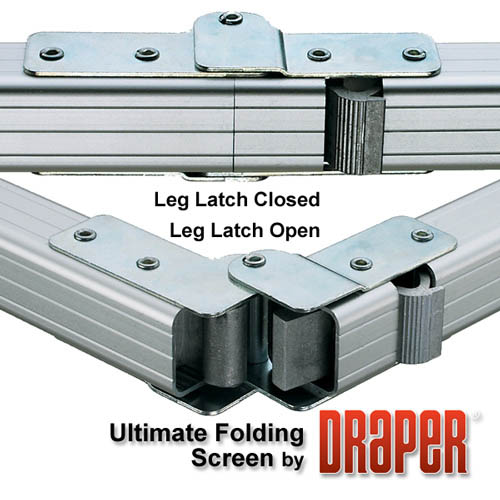

Legs adjust in 6" (15 cm) increments up or down with durable hinge locking mechanism.

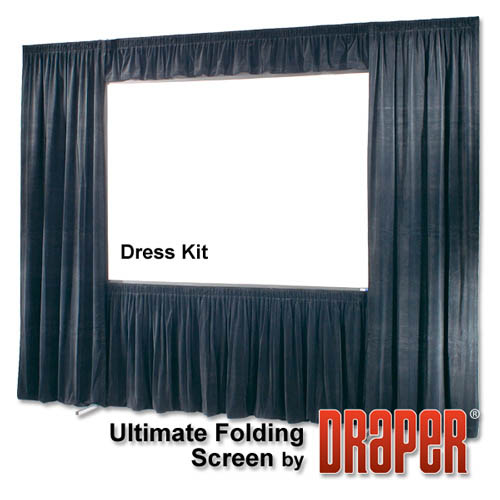

Optional dress kit available with cotton (standard) or optional Inherently Flame Retardant (IFR) velour.

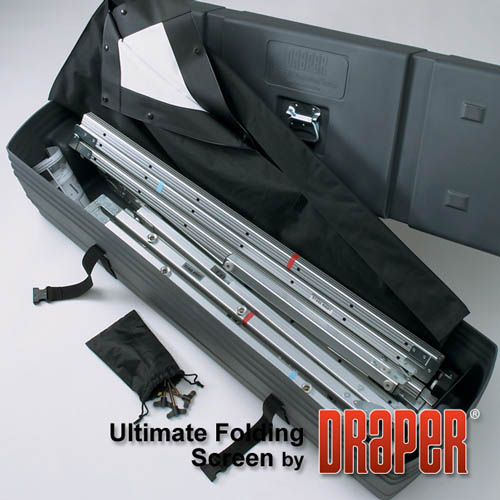

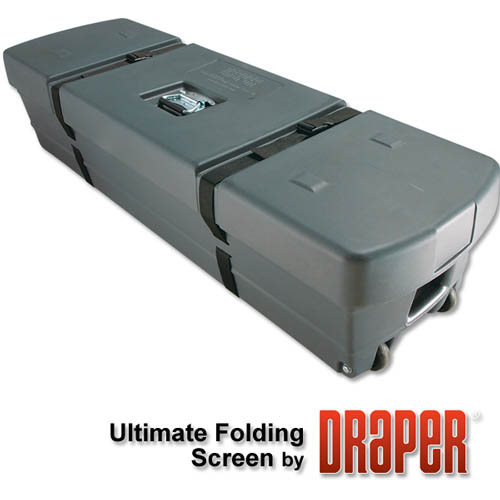

Includes heavy-duty, molded polyethylene wheeled carrying case.

Available with interchangeable front and rear projection surfaces

Supporting Documents

Anti-Sway Instructions

CAD (pdf)

CAD (pdf) HD Legs

CAD (pdf) Legs

Care and Maintenance Instructions

Catalog Page

Folding Surface Removal Instructions

Instructions

Repair Kit

Surface Attachment Procedure

Warranty

Ultimate Folding Screen Accessories

Standard T-Legs for UFS

Part number:

Part number: 382101 – 115” (292cm)
Part number: 382113 – 126”(320cm)
Part number: 382116 – 144” (366cm)

Constructed of sturdy 1" (25mm) square hard-alloy structural aluminum tubing, clear etched and anodized for long life. Hinged inverted "T" shape, with rubber-tipped feet.

Heavy Duty Legs for UFS

Part number: 382104

Heavy duty legs for UFS

Extra Heavy Duty Legs for UFS

Part number: 382107

Extra Heavy Duty Legs for UFS

Standard Crank

Part number: 219004

Cranks for use in assembly of Cinefold or Ultimate Folding Screen. Cranks are 5/16" (8mm) diameter by 2-1/4" (58mm) long crankbolts, for quick assembly without tools.

Crank, Long

Part number: 219059

Used for UFS in sizes: 7’6" x 10’ (229cm x 305cm), 9’ x 12’ (274cm x 366cm), 10’6" x 14’ (320cm x 427cm), 10’ x 10’ (305cm x 305cm) , 12’ x 12’ (366cm x 366cm), and 8’ x 12’ ( 244cm x 366cm).

Crank with Large Washer

Part number: 219060

For use with only with the UFS skirt bar.

Carrying Case

Part number: 219025

Part Number: 219098 – New for FocalPoint®
Part Number: 219200 – New for StageScreen® or Truss Cinefold

Redesigned for our newest rental products, FocalPoint®, StageScreen®. You'll love the new cases for their ruggedness, stackability, vertical storage, and improved ergonomics. Stronger, stackable, more interior space and can stand upright. New Velcro straps for stronger tie down support. Inset ergonomic handle. Stronger wheels.

StageHand

Part number: 382125

This handy tool helps your save a lot of time and money by allowing one person to set up most folding screens. The StageHand is a simple device consisting of two "hooks" mounted on the end of a telescoping pole. The pole has a non-skid rubber tip. The hooks firmly hold and lift the top of a folding screen frame. MORE

Instructions

Repair Kit for UFS, with tools

Part number: 382155

Repair Kit for Ultimate Folding Screen portable projection screens. Includes parts and tools to maintain a rental inventory.

Repair Kit for UFS, no tools

Part number: 382156

Repair Kit for Ultimate Folding Screen portable projection screens. Includes parts to maintain a rental inventory.

Masking Strips for UFS

Quickly and easily convert your HDTV folding screen to NTSC format with these black masking strips. Available in black velour.

Anti-Sway Stabilizers for Ultimate Folding Screen

Part number: 382119

Anti-Sway Stabilizers for Ultimate Folding Screen. Minimize side-to-side movement. Sold in pairs.

45" (114cm) Case Replacement Strap

Part number: 219100

Replacement strap for 45" (114cm) portable screen carrying case.

52" Case Replacement Strap

Part number: 219101

Replacement strap for 52" (132cm) portable screen carrying case.

60" Case Replacement Strap

Part number: 219102

Replacement strap for 60" (152cm) portable screen carrying case.

84" Case Replacement Strap

Part number: 219103

Replacement strap for 84" (213cm) portable screen carrying case.

Ultimate Folding Screen Frame Stiffener

Part number: 219084

Ultimate Folding Screen Frame Stiffener is a clamp that overlaps an old UFS hinge allowing for additional reinforcement and flatness. It only addresses hinges that move in the plane of the surface.

Specs

Item #: Draper-241184
Manufacturer Part #: 241184
