Draper 143018CD Access/Series V 92 diag. (45x80) - HDTV [16:9] - CineFlex White XT700V 0.7 Gain

Draper 143018CD Ultimate Access/Series V 92 diag. (45x80) - HDTV [16:9] - CineFlex White XT700V 0.7 Gain

Draper 143018CD Ultimate Access/Series V 92 diag. (45x80) - HDTV [16:9] - CineFlex White XT700V 0.7 Gain

Item #: Draper-143018CD

Add to Compare

$8,291.00

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 5-10 Business Days

Free Shipping

Overview

ULTIMATE ACCESS V ELECTRIC PROJECTION SCREEN

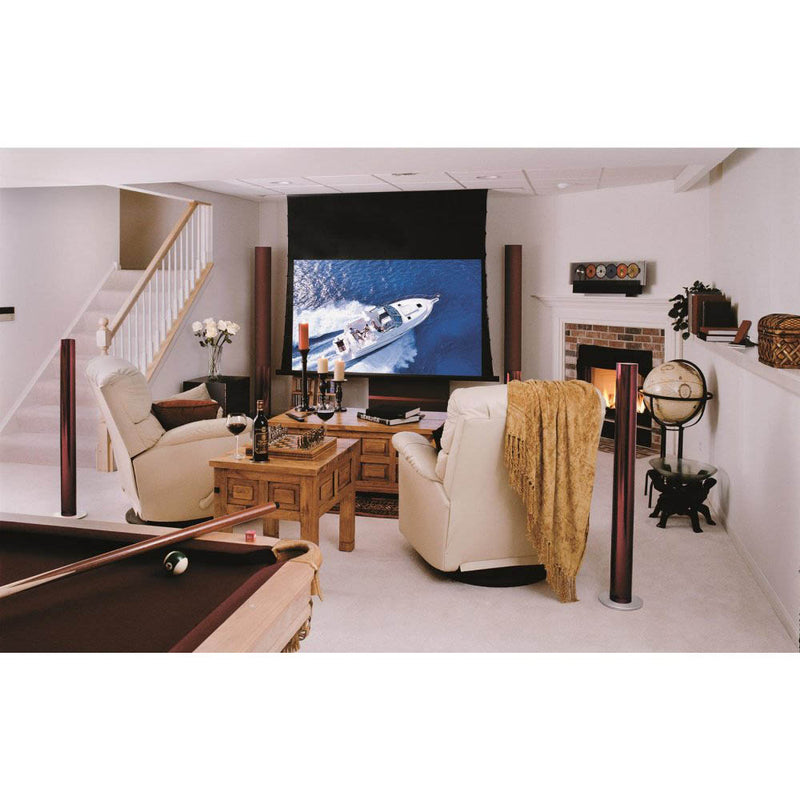

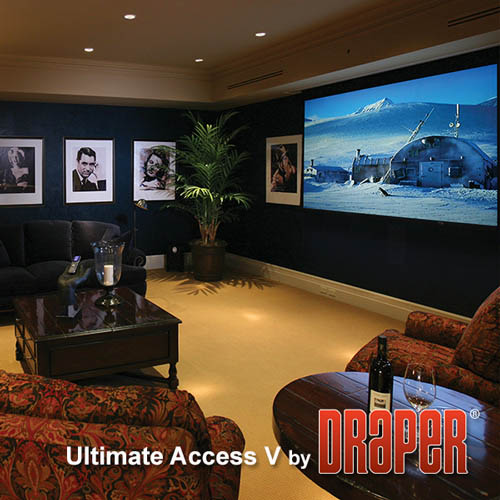

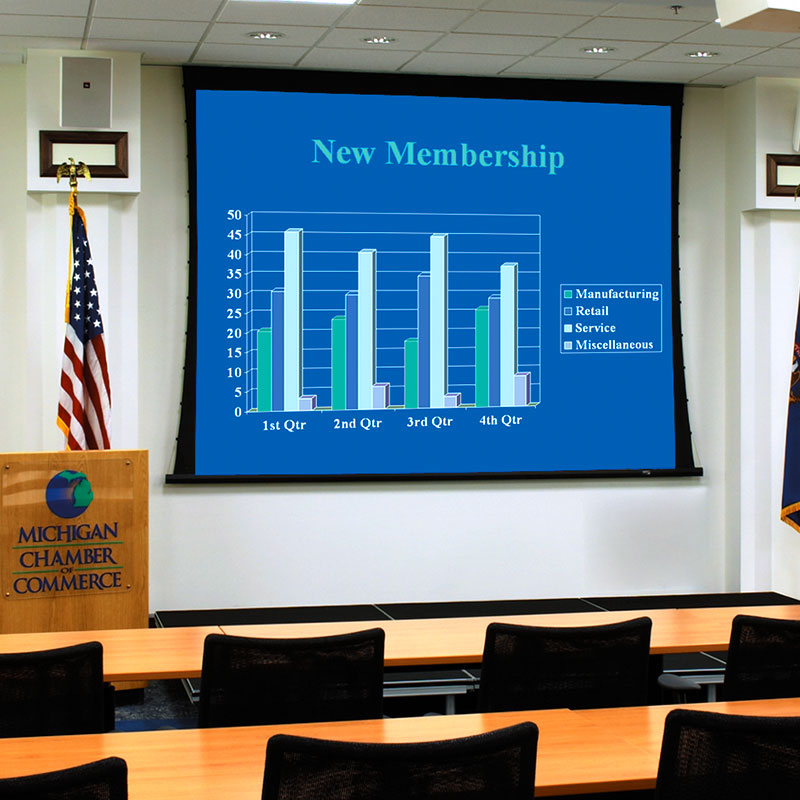

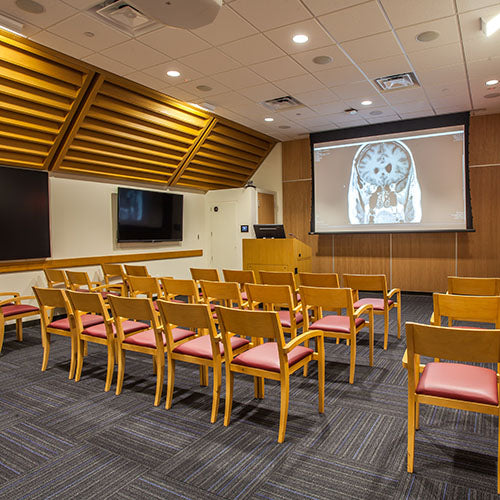

Complete concealment and smooth, clean design make the Ultimate Access V ideal for boardrooms, mid-sized training rooms, universities, or home theaters. Retracted, the projection screen completely conceals behind a smooth, lower panel in the ceiling with no exposed screw heads or fasteners. During use, a second motor opens the lower panel upward into the case to allow the screen to descend into the room. Draper’s RF welded tabs create a more durable seal that eliminates separation and stickiness to deliver a perfectly flat viewing surface. Installation of the case during the initial phase of construction eliminates job site damage allowing for installation of the screen at a later time.

Viewing surfaces available with this model are:

Matt White XT1000VB

Grey XH600V

Pure White XT1300V

CineFlex CH1200V

CineFlex White XT700V

Features

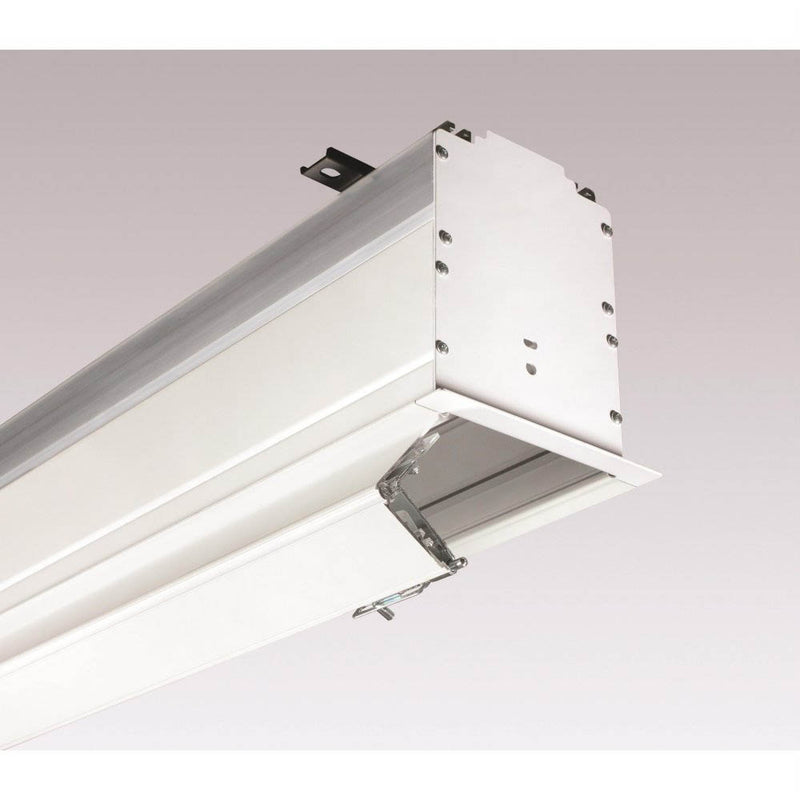

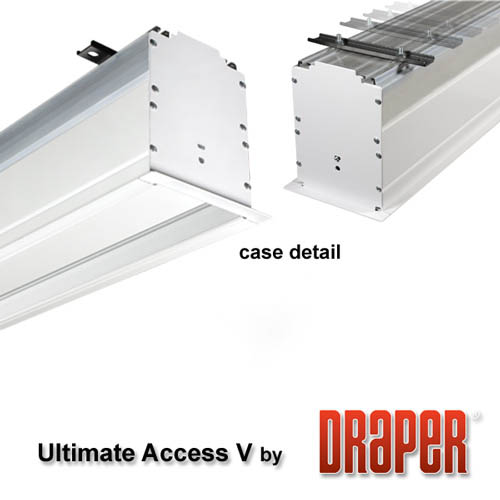

Case dimensions are 9-7/8" high x 8" deep (25 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions

Maximum image width up to 12' (366 cm) wide, depending on surface selection.

RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years.

Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

Adjustable or removable hoisting brackets included for easy lifting during installation.

Sliding brackets on top of the case allow for adjustments for mounting.

Sliding brackets inside case accommodate different size screens.

Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

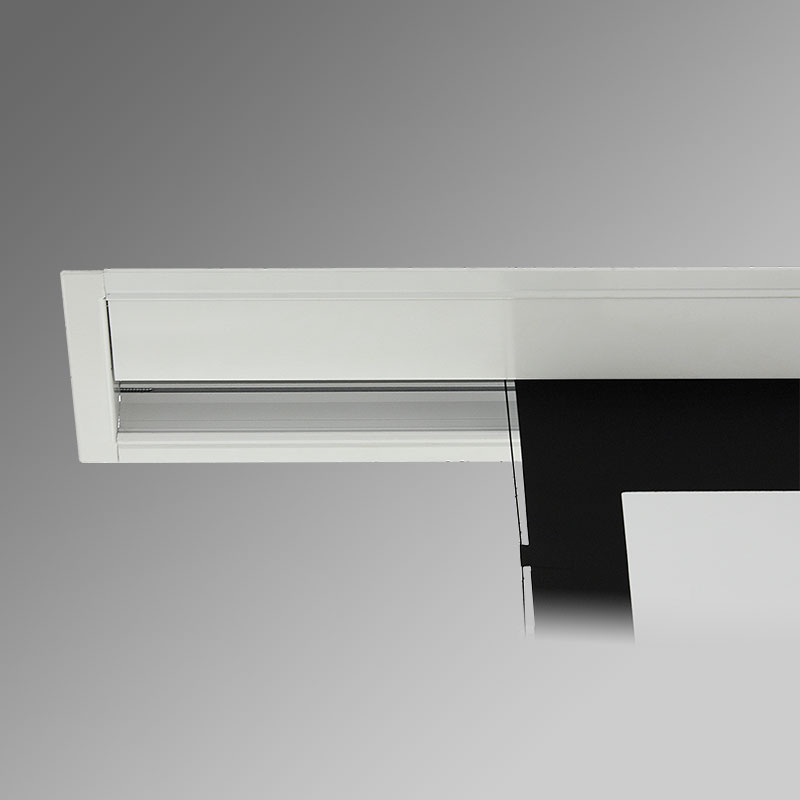

Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.

Independently motorized ceiling closure opens into the case.

Quick-connect wiring allows for early installation of the case with the addition of the screen later.

Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available.

Low voltage, video interface or other controls can be built into housing for below ceiling access.

White case standard, black available upon request.

Custom sizes available.

Supporting Documents

ARCAT SpecWizard

BIM Object ( BIM Support )

Care and Maintenance Instructions

Case Study

Catalog Page

CSI 3-Part Specifications

Instructions 110V

Instructions 220V

Low Voltage Controls Wiring Instructions

Low Voltage Controls Wiring Instructions (230V)

Submittal

Warranty

Projection Surface

CineFlex White XT700V

CineFlex White XT700V is a flexible, foldable, white rear projection viewing surface built for edge matching, edge blending, and short throw rear projection applications in environments where ambient light can be reasonably controlled.

Rear projection asks more of a surface than front projection does. The material has to transmit light rather than reflect it, resolve fine detail without scattering, and hold a consistent image across the full width of a multi-projector array so the seams between blended edges disappear. XT700V is a flexible PVC diffusion surface engineered for exactly that work: 0.7 gain in rear projection, an extra wide 180 degree viewing cone with typical contrast, and 4K ready resolving power. Because it folds without creasing permanently, the same surface can be specified on folding, fixed, or roller operated screens, and it can be pressed into service as a dual or low gain front projection surface at 0.5 gain when an application calls for it. Clean with mild soap and water.

Surface Characteristics

Engineered for edge matching and edge blending in multi-projector arrays
Suited to short throw rear projection installations
Extra wide 180 degree viewing cone with typical contrast
4K ready — delivers high resolution across the full image
Foldable surface for folding, fixed, or roller operated screens
Can be used as a dual or low gain front projection surface

Surface Material Properties

Material Type	Flexible Rear
Peak Gain (Rear Projection)	0.7
Peak Gain (Front Projection)	0.5
Viewing Cone	180 Degrees
Half Gain	N/A
Maximum Height Without Seams	136" (345 cm)
Edge Blending Properties	Excellent
Material Composition	Flexible PVC
Thickness	0.28 mm
Weight	326 g/sm
Cleaning	Mild Soap and Water
