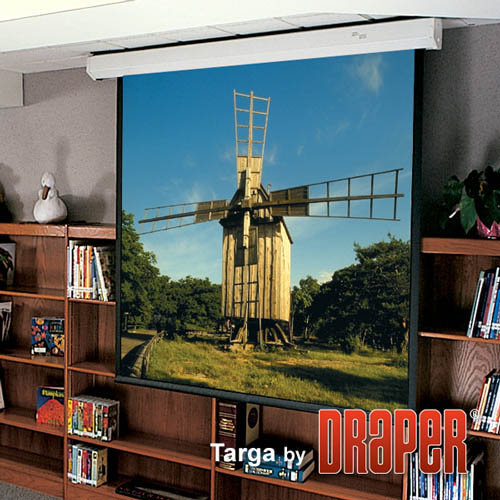

Draper 116530Q Targa 113 diag. (60x96) - Widescreen [16:10] - Matt White XT1000E 1.0 Gain

TARGA ELECTRIC PROJECTION SCREEN

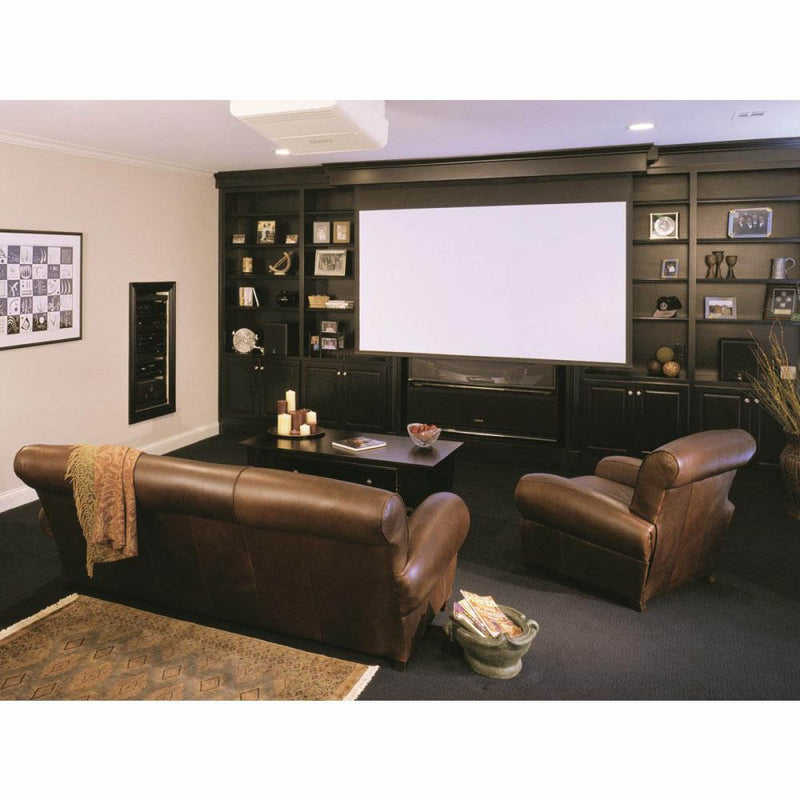

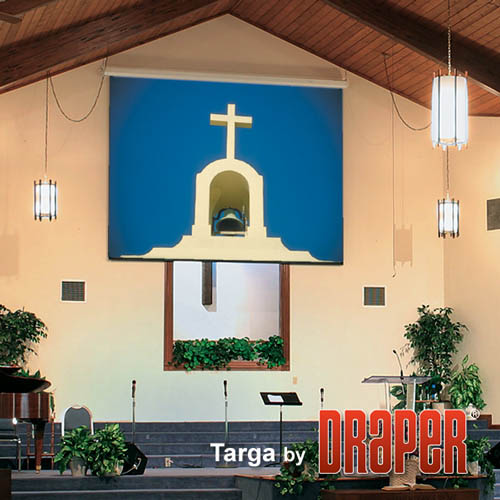

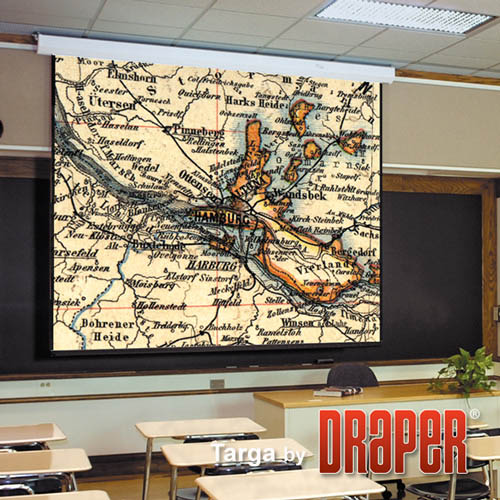

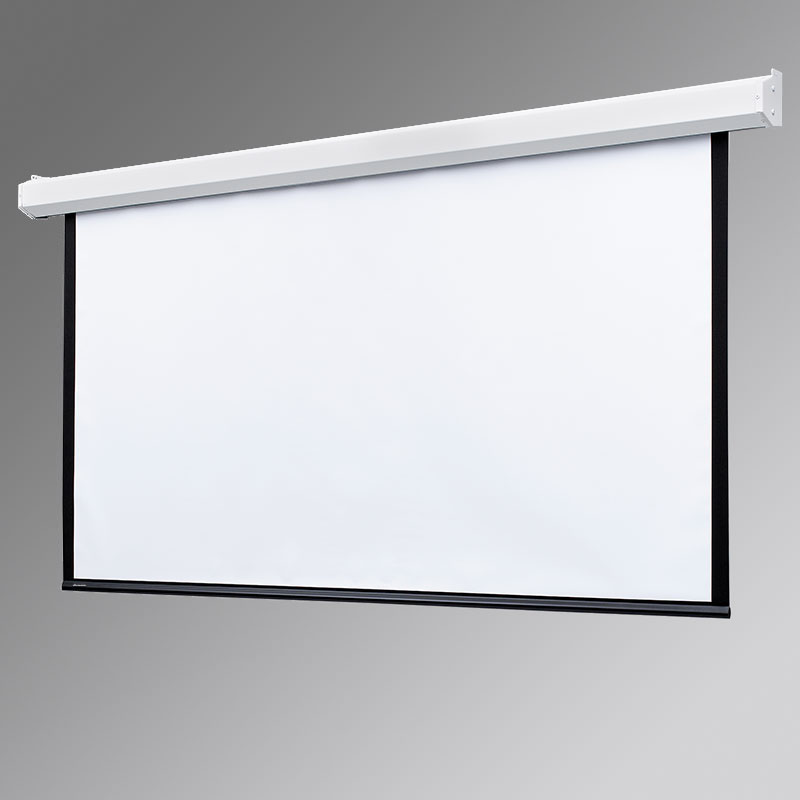

The wall- or ceiling-mounted, Targa electric projection screen is a popular choice for auditoriums, conference and lecture halls, hospitals, hotels, boardrooms, and churches. Housed in a pentagonal steel case with matching endcaps that form universal mounting brackets makes installation of the Targa easy, whether wall- or ceiling-mounted. This free-hanging, fiberglass-backed projection screen maintains flatness thanks to the weight of the screen and bottom dowel. The motor is mounted inside the roller providing a clean, low-profile appearance.

Viewing surfaces available with this model are:

Features

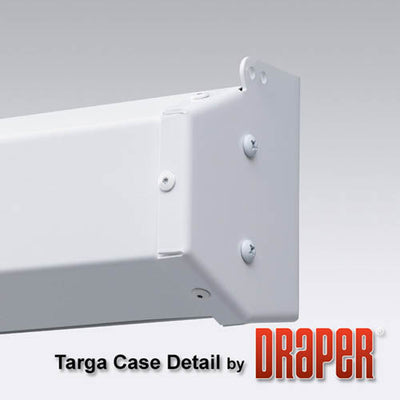

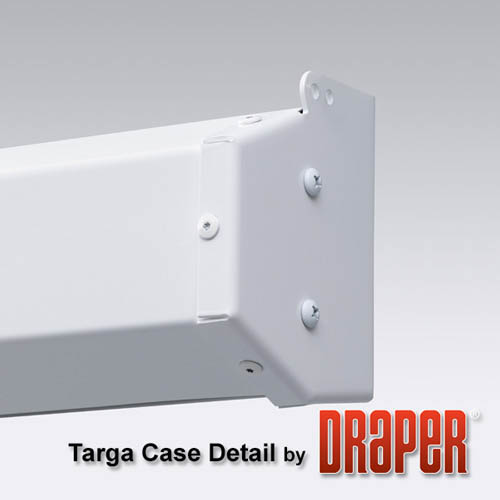

• Case dimensions 5-7/8"high x 5-1/4" deep (15 cm x 13 cm). Larger screen size case dimensions 6-3/4" high x 6-3/4" deep (17 cm x 17 cm). Housed in pentagonal steel case with a scratch-resistant white polyester finish and matching endcaps.

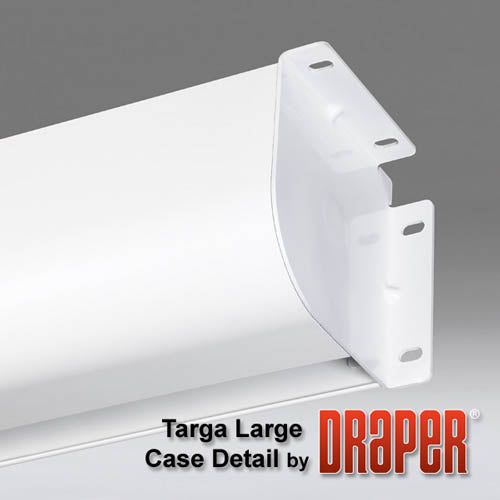

• Larger sizes require a different case design. Case dimensions are 6-3/4" high x 6-3/4" deep (17 cm x 17 cm). Housed in fabricated extruded aluminum with a curved front and L-shaped back/top cover with white finish, black optional.

• Maximum image width up to 16' (488 cm) wide, depending on surface selection.

• NTSC, HDTV, and 16:10 formats have image area framed with black on all four sides. Black side borders are available upon request for AV.

• Black drop standard, depending on screen size. Extra drop above image area available upon request.

• Optional floating wall brackets grip the screen securely anywhere along the back of the case, and are barely visible.

• Endcaps serve as universal mounting brackets.

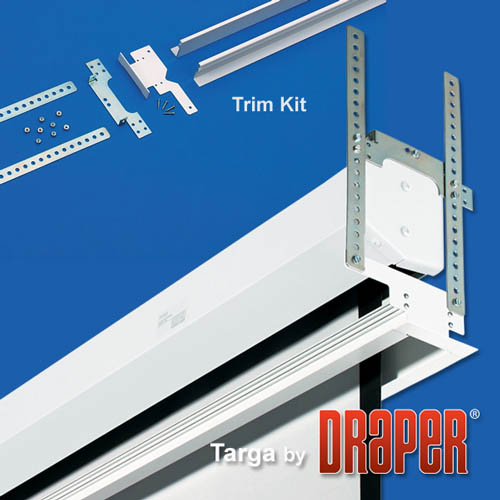

• Available with ceiling trim kit for ceiling-recessed installation. An additional 12" (30 cm) top drop is recommended for ceiling-recessed installation.

• Includes one 110-120V, 3-position switch (standard). Other control options are available.

• Optional Plug & Play with built-in low-voltage controller (LP) or with built-in quiet, low-voltage controller (QLP).

• Custom sizes available.
