Draper 114609 Paragon/Series V 295 diag. (177x236) - Video [4:3] - Matt White XT1000V 1.0 Gain - [CUSTOM]

PARAGON V ELECTRIC PROJECTION SCREEN

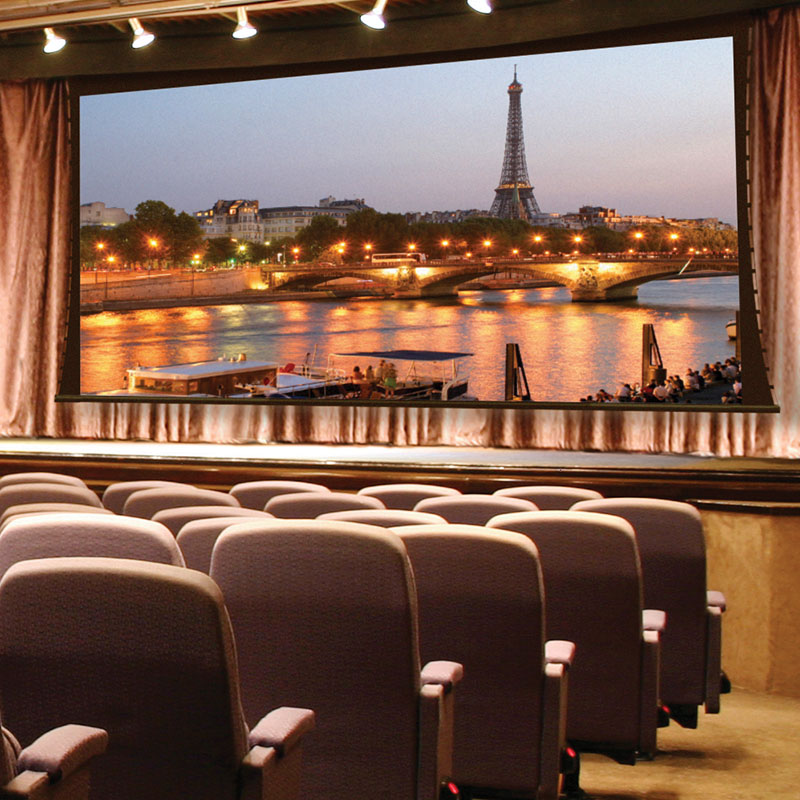

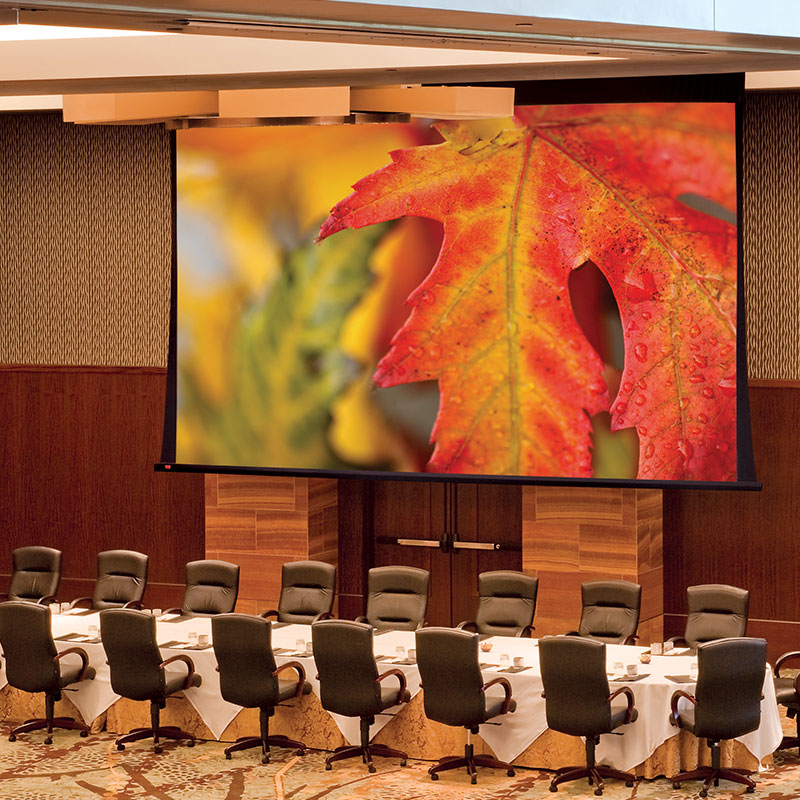

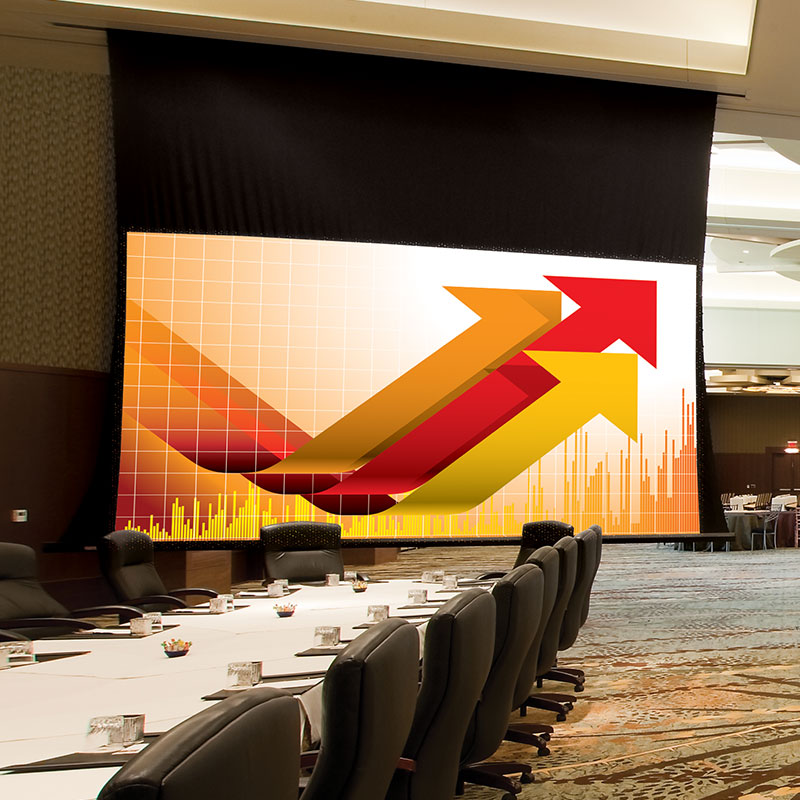

Paragon Series V heavy-duty electric projection screen is a large tab-tensioned screen ideal for auditoriums and lecture halls. It features a white extruded aluminum case and operates on a 6" steel roller powered by an extremely strong tubular motor-in-roller. Other surfaces may be available depending on size. Contact Draper for details.

Viewing surfaces available with this model are:

Features

• Case dimensions 13-1/4"high x 12" deep (34 cm x 30 cm). Optional extra drop may increase case length.

• Maximum image width up to 24' (732 cm) wide, depending on surface selection.

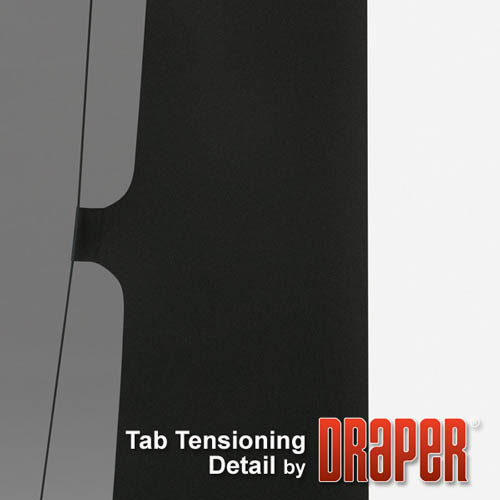

• RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years.

• Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

• Includes extruded aluminum case with white finish. Optional wall-mounting brackets and ceiling trim flange kit.

• Bottom closure panel provides easy access for service or maintenance.

• Rear projection surfaces available.

• Includes a 110V, 3-position switch (standard). Quiet, low-voltage motors and 220V options are available.

• Custom sizes available.
