Da-Lite Advantage Electrol Tensioned 70124LS - 137" diag.(73x116) - [16:10] - HD Progressive ReView 0.9

Da-Lite Advantage Electrol Tensioned 70124LS - 137" diag.(73x116) - [16:10] - HD Progressive ReView 0.9

Item #: Dalite-70124LS

Add to Compare

$5,481.60

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 3-5 Business Days

Free Shipping

Overview

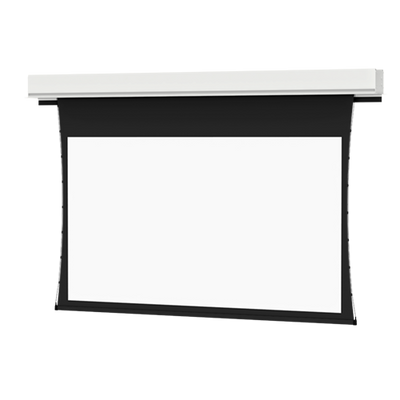

Da-Lite · Ceiling Recessed Electric Screen

Tensioned Advantage®

Formerly named Tensioned Advantage Electrol and Tensioned Large Advantage Electrol (over 14′ wide)

The Tensioned Advantage® ceiling recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed.

Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage.

Sliding installation brackets allow mounting flexibility for easy attachment of the screen housing to the structure above the drop ceiling.

Tensioned Ceiling Recessed UL Plenum Rated TAA Compliant Country of Origin: US

Highlights

Trim Already in Place

Ceiling trim conceals the rough opening – no additional trim work once the screen is installed.

Two-Stage Installation

Install the case during rough-in construction and the surface assembly during the finishing stage.

TruGuide™ Tensioning

Electric screen tensioning system provides optimal viewing surface smoothness.

Key Features

Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexibility
UL Plenum rated case
White powder-coated case for a clean aesthetic
Decora-style, three-button wall switch
All sizes standard with 12” of black drop except for Parallax Pure which is standard with 2”
Smooth Roll Technology to keep your screen perfectly flat
TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness
Standard black backing retains projected brightness on front projection surfaces
Seamless surfaces in all models
Sliding installation brackets for easy attachment above the drop ceiling

Note: The Tensioned Advantage Series with Parallax Pure will look visibly different when compared to Da-Lite vinyl screen surfaces due to the unique micro-layered, high-grade lens system of Parallax Pure. While it may exhibit slight waves, it is optically flat under projection, and the waves will not be visible.

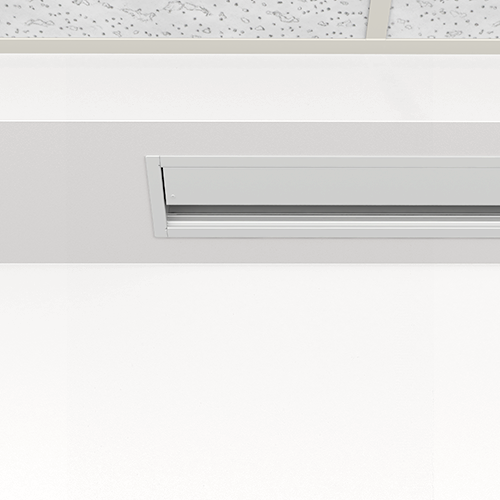

Tensioned Advantage installed in ceiling — Recessed in the ceiling

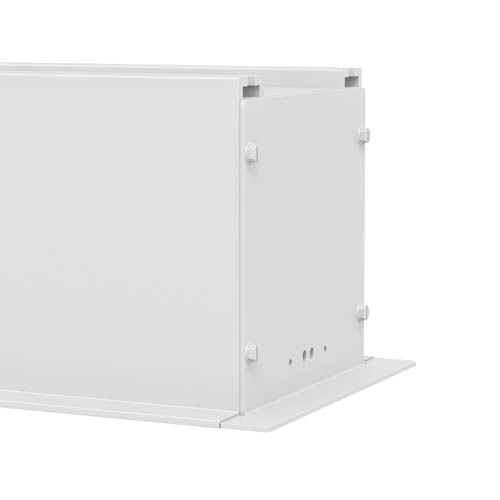

Tensioned Advantage case and trim — Ceiling trim in place

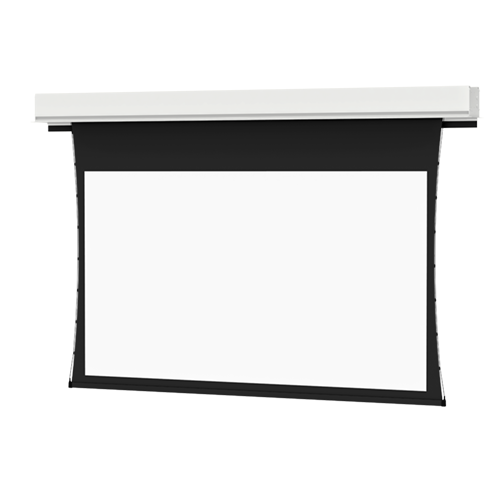

Tensioned Advantage screen lowered — Screen lowered

Specifications

Dimensions

Screen Diagonal: 72–298 in (182.88–756.92 cm)
Screen Height: 40.5–162 in (102.87–411.48 cm)
Screen Format: HDTV 16:9Ultrawide 21:9Video 4:3Wide 16:10

Characteristics

Application: Ceiling Recessed
Screen Type: Electric, Tensioned
Built-In Control: Standard Low Voltage Control
Motor: Standard 120V (60Hz); 220V (50Hz) for Export
Drop Type: Standard Black Drop
Projection Type: Front Projection, Rear Projection

Surfaces & Certifications

Surfaces: Da-MatDa-TexHD Progressive 1.0HD Progressive 1.0 PerfHD Progressive 1.1 ContrastHD Progressive 1.3HD Progressive ReView 0.9Parallax Pure 0.8Parallax Stratos 1.0
Surface Features: Acoustically Transparent, Ambient Light Rejecting (ALR), High Resolution, Standard Resolution
Country of Origin: US
TAA Compliant: Yes

Compatible Accessories

Screen ControllerPart # DL15316Shop Now → Da-Lite Low Voltage Wall Switch

Low Voltage Wall SwitchPart # 40975Shop Now → Da-Lite Locking Switch Cover Plate

Locking Switch Cover PlatePart # 98837Shop Now →

Downloads

Specification Sheet Product Information Sheet Installation Instructions Parts List Screen Maintenance Guide 21:9 Ultrawide Portfolio Brochure CAD Models BIM Models

Projection Surface

HD Progressive ReView 0.9 (formerly Dual Vision)

Dual Vision is a flexible vinyl surface ideal for rear projection, but capable of both front and rear projection. Dual Vision is ideal for video projection under controlled ambient light conditions.

With an exceptionally wide viewing cone and light gray tint, a sharp image with no color shift is observed regardless of location in the room.

This surface is intended to be used on a screen that is being "flown", as opposed to mounted against a wall. It is suggested only when you need a surface that can do both front & rear projection.

This surface is NOT recommended for Home Theater applications.

Front projection use when mounted to wall: Make sure you have a black/dark wall behind the screen or light will go through the surface and reflect back off the wall back through the surface to the audience.

Seamless in any width up to 16' in height.
