Da-Lite Advantage Electrol 34520LS - 130" diag.(69x110) - [16:10] - Matte White - 1.0

Da-Lite Advantage Electrol 34520LS - 130" diag.(69x110) - [16:10] - Matte White - 1.0

Item #: Dalite-34520LS

Add to Compare

$3,088.00

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 5-10 Business Days

Free Shipping

Overview

Da-Lite · Ceiling Recessed Electric Screen

Advantage®

Formerly Advantage Electrol® · Standard 120V Motor

Power: Standard 120V Motor – Requires Electrical Power

This Advantage screen uses Da-Lite’s standard 120V (60Hz) motor and must be wired to building power. Built-in Standard Low Voltage Control is included, and this listing is a complete screen (case plus motorized fabric and roller assembly).

Da-Lite Advantage ceiling recessed electric screen

The Advantage® ceiling recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed.

Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Sliding installation brackets allow mounting flexibility for easy attachment of the screen housing to the structure above the drop ceiling.

Standard 120V Motor Ceiling Recessed Standard Low Voltage Control UL Plenum Rated Case TAA Compliant Country of Origin: US

Highlights

Ceiling Trim in Place

Self-trimming case conceals the rough opening, so no additional trim work is needed after installation.

Two-Stage Installation

Install the case at rough-in and the motorized fabric and roller assembly at the finishing stage.

Standard Low Voltage Control

Integrated low voltage control with a Decora-style, three-button wall switch, plus optional controls.

Key Features

Standard Low Voltage Control (LVC) and available optional controls allow screen operation flexibility
Decora-style, three-button wall switch
UL Plenum rated case
White powder-coated case for a clean aesthetic
Standard black backing retains projected brightness on front projection surfaces
Sliding installation brackets for easy attachment to the structure above the drop ceiling
Quick-connect junction box lets the case be wired during construction; the motorized fabric and roller assembly plugs in later
Standard 120V (60Hz) motor mounted inside the roller, with adjustable limit switches

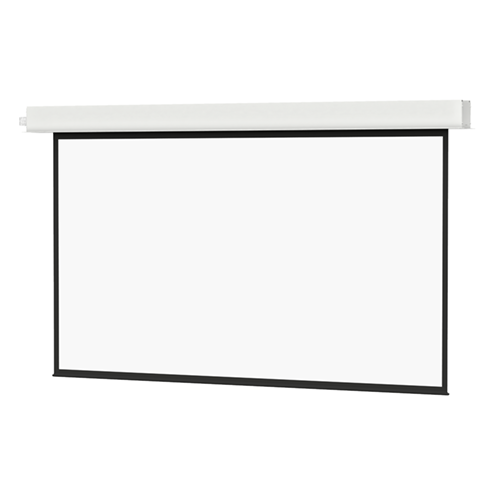

Da-Lite Advantage screen lowered — Screen lowered

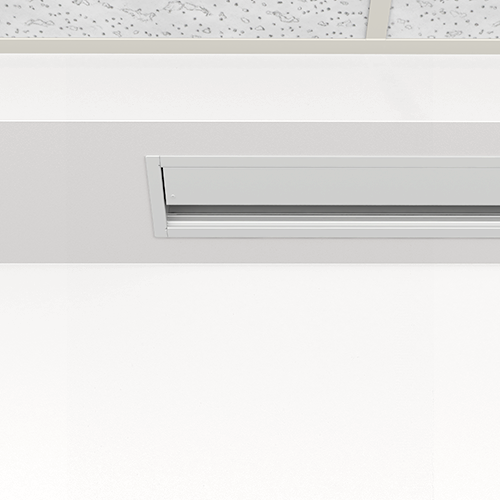

Da-Lite Advantage case recessed in ceiling, screen raised — In ceiling – screen raised

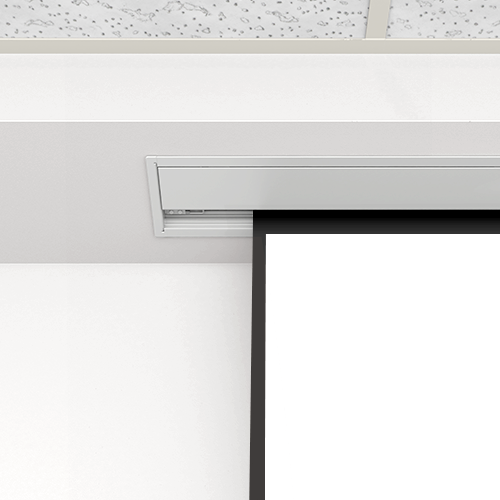

Da-Lite Advantage in ceiling, screen lowering — In ceiling – screen lowered

Specifications

Dimensions

Screen Diagonal: 72–204 in (by model)
Screen Height: 43–144 in (by model)
Screen Format: HDTV 16:9 Wide 16:10 Video 4:3 Square
Drop Type: Standard Black Drop

Power & Control

Motor: Standard 120V (60Hz)
Built-In Control: Standard Low Voltage Control
Application: Ceiling Recessed
Closure Door: None (slot opening)
Product Selection: Complete Screen

Surfaces & Certifications

Surfaces: Matte White High Contrast Matte White
Gain: 1.0 (Matte White) or 1.1 (High Contrast Matte White), by model
Projection Type: Front Projection, non-tensioned
Country of Origin: US
TAA Compliant: Yes

Compatible Accessories

Low Voltage Wall SwitchPart # 40975Shop Now → Da-Lite Locking Switch Cover Plate

Locking Switch Cover PlatePart # 98837Shop Now → Da-Lite Screen Controller

Screen ControllerPart # DL15316Shop Now →

Downloads

Specification Sheet Product Information Sheet Installation Instructions Parts Lists Screen Maintenance Guide BIM Models CAD Models

Projection Surface

Matte White

Matte White is a fiberglass surface for non high-definition projection and environments with controllable ambient light that preserves color as well as black and white images. Seamless sizes vary by product.
