Da-Lite Advantage Deluxe Electrol 36857 - 265" diag.(159x212) - [4:3] - Matte White - 1.0 - [CUSTOM]

Da-Lite Advantage Deluxe Electrol 36857 - 265" diag.(159x212) - [4:3] - Matte White - 1.0 - [CUSTOM]

Item #: Dalite-36857

Add to Compare

$12,044.00

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 2-3 Weeks

Free Shipping

Overview

Da-Lite · Ceiling Recessed Electric Screen

Advantage® (Over 14′ W with Closure Door)

Formerly Large Advantage Deluxe Electrol® · Standard 120V Motor

Power: Standard 120V Motor – Requires Electrical Power

This Advantage screen uses Da-Lite’s standard 120V (60Hz) motors (one for the screen, one for the closure door) and must be wired to building power. Built-in Standard Low Voltage Control is included, and this listing is a complete screen (case with automatic closure door plus motorized fabric and roller assembly).

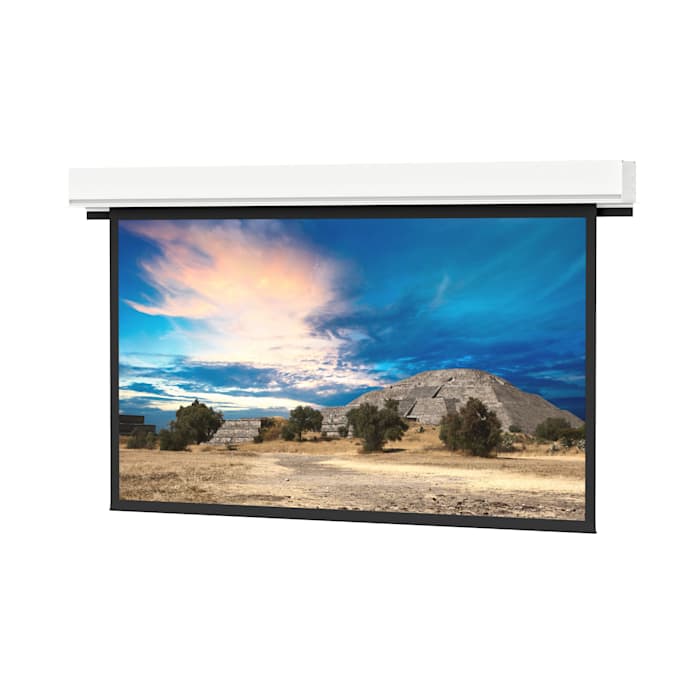

Da-Lite Advantage over 14 foot wide with closure door ceiling recessed electric screen

The Advantage® ceiling recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed. This large-venue model, for screens 14′ wide and up, adds an automatic closure door that opens and closes as the screen lowers and raises, hiding the opening in the ceiling when the screen is not in use.

Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Variable-position mounting brackets attach the screen housing to the structure above the ceiling.

Standard 120V Motor Automatic Closure Door Ceiling Recessed Standard Low Voltage Control UL Plenum Rated Case TAA Compliant Country of Origin: US

Highlights

Automatic Closure Door

A door in the bottom of the case opens and closes automatically with the lowering and raising of the screen, for a clean ceiling when the screen is up.

Ceiling Trim in Place

Self-trimming case conceals the rough opening, so no additional trim work is needed after installation.

Two-Stage Installation

Install the case at rough-in and the motorized fabric and roller assembly at the finishing stage.

Key Features

Standard Low Voltage Control (LVC) and available optional controls allow screen operation flexibility
Decora-style, three-button wall switch
UL Plenum rated case
White powder-coated case for a clean aesthetic
Standard black backing retains projected brightness on front projection surfaces
Variable-position mounting brackets
Two standard 120V (60Hz) motors, one for the screen and one for the closure door, with adjustable limit switches
Retractable aluminum closure door, plus a second aluminum access door with manual opening in the bottom of the case
Junction box integrated into the housing, so the case can be wired during construction; the motorized fabric and roller assembly plugs in later

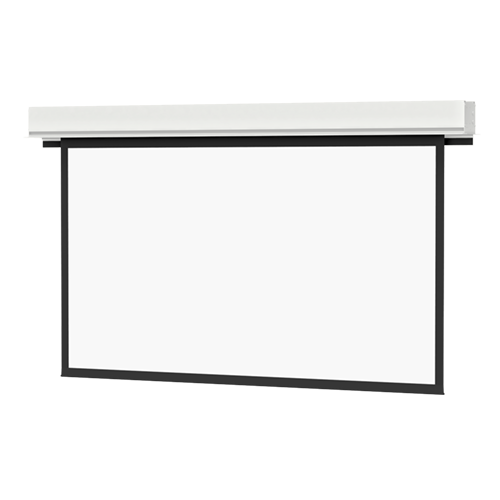

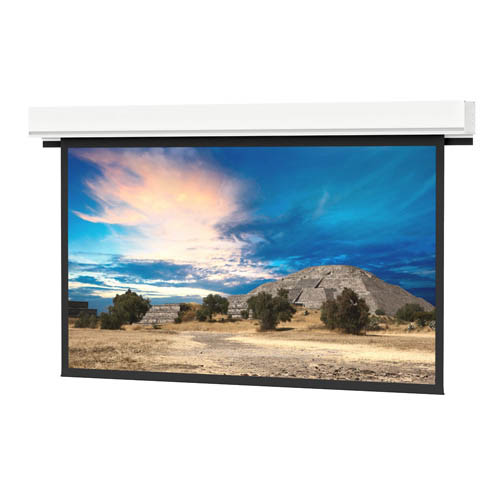

Da-Lite Advantage with closure door, screen lowered — Screen lowered

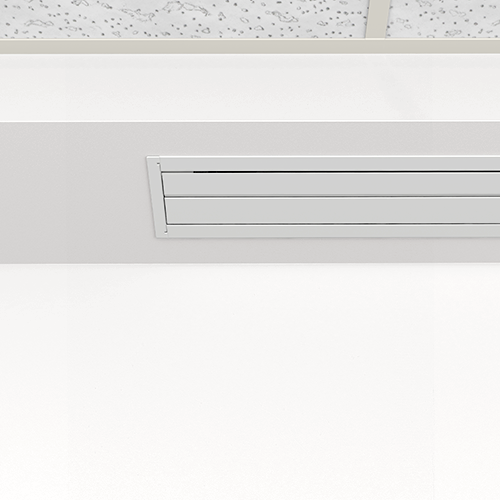

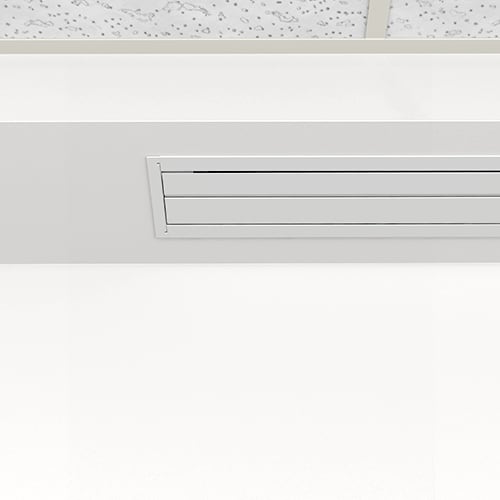

Da-Lite Advantage in ceiling with closure door shut, screen raised — In ceiling – door closed

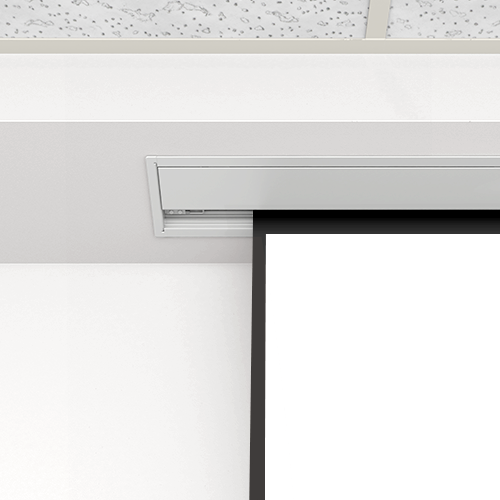

Da-Lite Advantage in ceiling with closure door open, screen lowering — In ceiling – door open

Specifications

Dimensions

Screen Diagonal: 210–373 in (by model)
Screen Height: 106–264 in (by model)
Screen Format: HDTV 16:9Video 4:3Square
Drop Type: Standard Black Drop

Power & Control

Motor: Standard 120V (60Hz)
Built-In Control: Standard Low Voltage Control
Application: Ceiling Recessed
Closure Door: Automatic Closure Door
Product Selection: Complete Screen

Surfaces & Certifications

Surface: Matte White
Gain: 1.0
Projection Type: Front Projection, non-tensioned
Country of Origin: US
TAA Compliant: Yes

Compatible Accessories

Low Voltage Wall SwitchPart # 40975Shop Now → Da-Lite Locking Switch Cover Plate

Locking Switch Cover PlatePart # 98837Shop Now → Da-Lite Screen Controller

Screen ControllerPart # DL15316Shop Now →

Downloads

Specification Sheet Product Information Sheet Installation Instructions Parts Lists Screen Maintenance Guide BIM Models CAD Models

Projection Surface

Matte White

Matte White is a fiberglass surface for non high-definition projection and environments with controllable ambient light that preserves color as well as black and white images. Seamless sizes vary by product.
