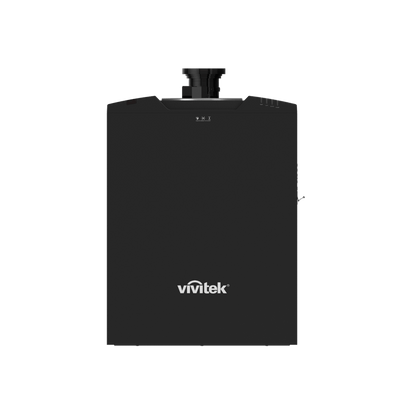

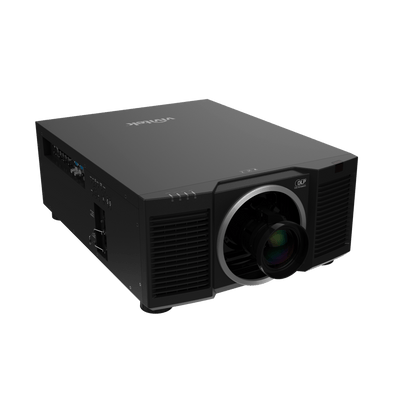

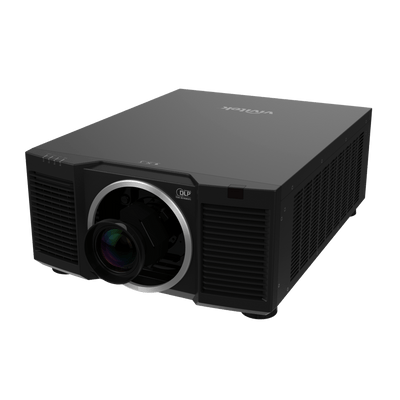

Vivitek DU9800Z WUXGA Extra Large Venue Laser Projector with 18,000 Lumens - Lens Not Included
Item #: Vivitek-DU9800Z-BK
$30,000.00
Leaves Warehouse within 2-3 Weeks
Free Shipping
Overview
Large Venue, House of Worship & Professional Installation
DU9800Z
Shine Bright with an SSL Laser Projector delivering 18,000 Lumens, Rich Connectivity,
Edge-Blending, and Maintenance-Free Operating Time
Edge-Blending, and Maintenance-Free Operating Time
- Bright 18,000 ANSI lumens with a native WUXGA (1,920 x 1,200) resolution for impeciablle colors and outstanding details
- DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images
- Sold state laser phosphor light source for reliable projection and performance
- Environmentally friendly lamp-less design that is mercury-free and energy efficient
- Almost maintenance-free with up to 20,000 hours of operating time
- Advanced video processor for fluid video streaming and 10-bit programmable RGB color adjustments
- Laser light source produces rich colors for an incredible cincematic like movie experience
- Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
- Built-in hardware edge blending and warping functionality
- Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
- Picture-in-Picture (PIP) for simultaneously image projection from two different active sources
- Full suite of display connectivity inputs and outputs including: HDMI v1.4, DVI-D, Component (5 BNC) , VGA-In, 3G-SDI-In/Out, VGA-Out, HDBaseT™
- HDBaseT™ interface with support for distribution of digitalvideo content over standard CAT5e/6 LAN cable
- Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
- 360° operation and projection design for set up in all angles
- Instantaneous power-on & off, so no need for system pre-heating and postcooling
- Airtight sealed engine and filter-less design for improved performance against fighting dust and fibers
- Frame sequential and dual channel 3D supported
- Complete range of motorized interchangeable lens in sizes from 0:84 to 7:01 (Optional)
- Optimized system layout with high efficiency cooling system
- Heavy duty steel chassis for extra strength and integrity
- 24/7 continuous operation with no downtime
- Network ready for integration and system administration via RJ45
| Display Type | Single Chip 0.96" DLP Technology by TI |
| Brightness | 18,000 ANSI Lumens |
| Native Resolution | WUXGA (1920 x1200) |
| Max. Resolution | WUXGA (1920 x 1200)@60Hz |
| Contrast Ratio | 1,250:1 or 10,000:1 (with DB On) |
| Laser Life/Type | Up to 20,000 hours (Laser Phosphor Light Engine) |
| Throw Ratio | 1.5 - 2.0:1 |
| Image Size (Diagonal) | 40" - 500" |
| Projection Distance | 1.24 - 21.8m (4.06ft to 71.5ft) |
| Projection Lens | F = 2.17 – 2.65 |
| Zoom Ratio | 1.33x |
| Aspect Ratio | 16:10 format |
| Offset | Motorized Lens Shift |
| Keystone Correction | Horizontal ±60°, Vertical ±40° |
| Horizontal Frequency | 15, 30 – 90Hz |
| Vertical Scan Rate | 50 - 85Hz |
| Edge Blending | Yes (Built-In) |
| Warping | Yes (Built-In) |
| 3D Compatibility | Yes |
| Lens Shift Range | Vertical: ±50%, Horizontal: ±15% |
| Computer Compatibility | VGA, SVGA, XGA, WXGA,SXGA, SXGA+, UXGA, 1080P, WUXGA@60hz |
| Video Compatibility | SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L) |
| I/O Connection Ports | HDMI v1.4 (x2), DVI-D, Component (5 BNC), 3G-SDIIn/ Out, VGA-In, DisplayPort v1.2, RS-232, VGA-Out, 3D-Sync In/Out, 12v Trigger 1, 12v Trigger 2, Wired Remote, HDBaseT™, RJ45 |
| Projection Method | Table Top, Ceiling Mount (Front or Rear) |
| Dimensions (W x D x H) | 681 x 530 x 248mm (26.8” x 20.8" x 9.7") |
| Weight | Estimated 48kg (105.8lbs) |
| Available Colors | Black (DU9800Z-BK) |
| Noise Level | 43dB (Normal Mode) |
| Power Supply | AC 100-240V, 50/60Hz |
| Power Consumption | 1,900W (Normal Mode), 1,100W (Eco. Mode), |
| Standard Accessories | AC Power Cord, Remote Control w/Batteries, Lens Cap, Documentation Kit |
| Optional Accessories | Interchangeable Lens Options (x5) |
Specs
Item #: Vivitek-DU9800Z-BK
Manufacturer Part #: DU9800Z-BK
