Stewart Luxus 00101-5109DW Wall Electric Screen - 109"(57.5x92) - [16:10] - 1.3 Gain StudioTek 130

Item #: Stewart-00101-5109DW

Add to Compare

$5,174.92

Bundle It & Save The More You Buy, The More You Save

Customize It Need Something Special? Let Us Help

Need Help? Chat With an Expert or Call 888-392-4814

Leaves Warehouse within 2-3 Weeks

Free Shipping

Overview

Luxus

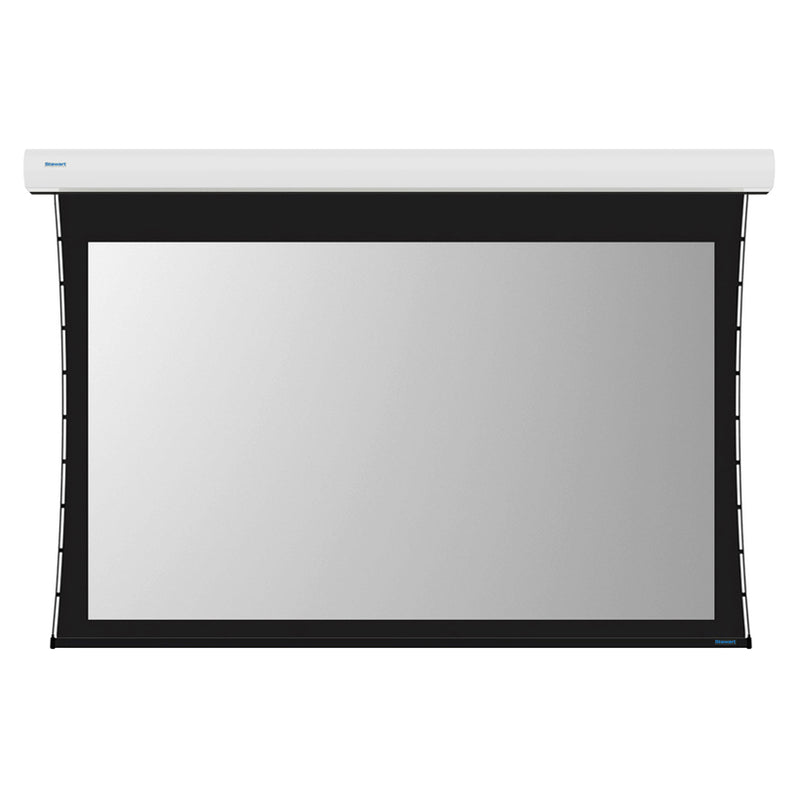

Retractable, Below Ceiling Screen System

Ideal for residential or commercial multipurpose applications

The new Luxus is an appealing compact, below ceiling retractable screen system that is ideal for image widths up to 15 feet 2 inches. Scaling up to 209 inches in diagonal in 16:9 format with a 12 inch black drop, the new Luxus is ¾ of an inch smaller in circumference and features a mounting bracket that allows the screen case to slide horizontally for proper centering on the wall or ceiling. With built-in controls and a removable case bonnet, the new Luxus continues to be a well proven screen with a time-tested following.

This screen is used most commonly in:

More style. More convenience. More affordable

Beyond stunning, Stewart’s all new Luxus retractable screen system now brings the next level of industry-leading innovation to the two-piece projection screen market.

Way cool mounting bracket

Installation is easier, faster and more convenient. The new Luxus uses a sliding mounting bracket which runs along both the top and back of the case for a perfect wall or ceiling fit. The new Luxus is also ¾ of an inch smaller in circumference, making the screen case more compact.

New multi-platform controller that speaks IR, Serial, RF, IP, Trigger and Dry Contact

The Intelligent Motor Control (IMC) 100 is a highly reliable multi-platform friendly solution that is fully hidden and integrated into the screen case. Access to the screen assembly, motor and the control is now easier with the removable case bonnet.

Built to impress

The end caps come standard in black or white to match the screen case or, you can choose optional hand-polished billet aluminum end caps to take the screen to a whole new level of sophistication.

Plug and Play Access

The new Luxus provides easy and direct access to power and control outputs via the back of the case. The Smart Port allows access to IR, Serial and more.

Venue specific fabrics

Plenty of screen manufacturers make a small, wall mounted retractable screen. None, however, can furnish in one of Stewart's application driven 16K+ front or rear projection fabrics.

Downloads

Projection Surface

StudioTek 130

StudioTek 130 is a flexible, front projection, screen material that is formulated to provide optimized white field uniformity unmatched by competing gain screens.

StudioTek 130 is over 30% brighter than a matte-white screen surface. Certified by THX, StudioTek 130 is the reference standard projection material within the AV industry.

Click to download spec sheet.

Over 30% brighter than matte-white material
Studio industry's standard reference screen
Re-formulated optical coating allows for enhanced focusing capabilities
Superb color and white field uniformity
Certified by THX
Certified by the Imaging Science Foundation (ISF)

Surface Material Properties

Peak Gain	1.3
Half Gain	80 Degrees
Ambient Light Rejection Value	17%
Ambient Light Resistance	N/A
Minimum Throw Distance	1.3 x Image Width
Edge Blending Properties	Fair
Passive 3D use	No
Lay Flat Quality	Excellent
Flame Resistance	Yes
