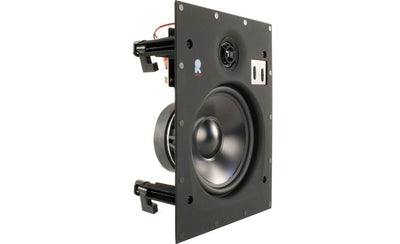

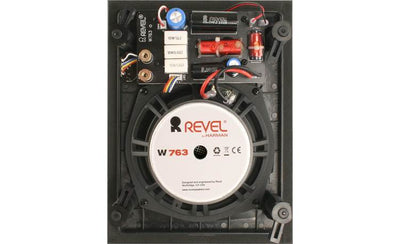

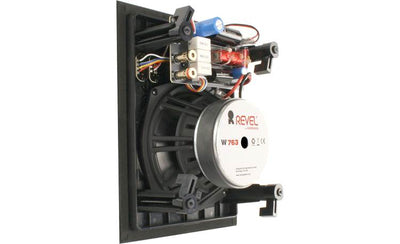

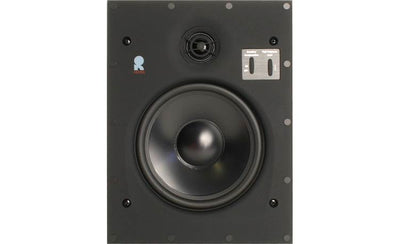

Revel W763 In-wall speaker - W763
Item #: Revel-W763
$550.00
Contact Us to Place Order
Free Shipping
As an authorized dealer for the product you are looking at, we are bound by certain agreements with our partners in how we display, price and sell certain products.
Overview
6 ½" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
1" aluminum dome swiveling high-output tweeter with waveguide
3-position HF level control
LF boundary compensation switch
Mounting depth: 4.1" (10.4 cm)
Weight: 5.6 lb (2.5 kg) / Shipping weight: 6.7 lb (3 kg)
Cutout dimensions (H x W): 9.8" x 7.3" (24.9 cm x 18.5 cm)

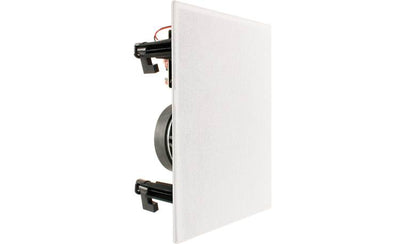

Includes zero-bezel magnetic grille
Grille finished dimension (H x W): 10.8" x 8.3" (27.3 cm x 21.1 cm)
Nominal impedance: 8 ohms
Recommended amplifier power range: 10- 150 watts
Sensitivity (2.83V/1m): 88 dB
Frequency Range -3 dB from 45Hz-28kHz; -10dB from 35-30kHz
1" aluminum dome swiveling high-output tweeter with waveguide
3-position HF level control
LF boundary compensation switch
Mounting depth: 4.1" (10.4 cm)
Weight: 5.6 lb (2.5 kg) / Shipping weight: 6.7 lb (3 kg)
Cutout dimensions (H x W): 9.8" x 7.3" (24.9 cm x 18.5 cm)
Includes zero-bezel magnetic grille
Grille finished dimension (H x W): 10.8" x 8.3" (27.3 cm x 21.1 cm)
Nominal impedance: 8 ohms
Recommended amplifier power range: 10- 150 watts
Sensitivity (2.83V/1m): 88 dB
Frequency Range -3 dB from 45Hz-28kHz; -10dB from 35-30kHz
Specs
Item #: Revel-W763
Manufacturer Part #: W763
