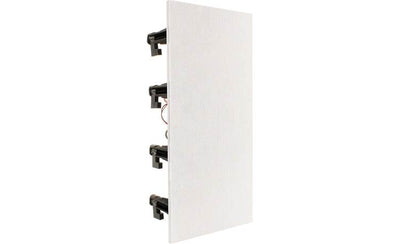

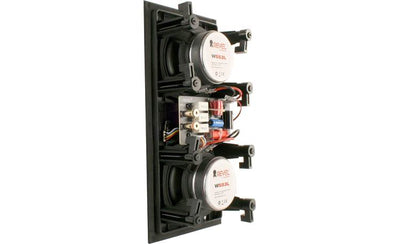

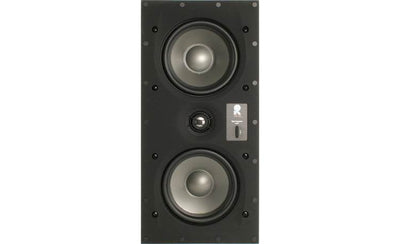

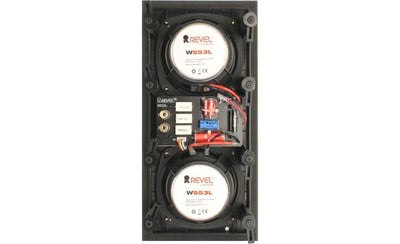

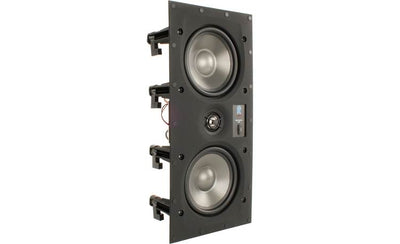

Revel W553L In-wall multi-purpose home theater speaker - W553L
Item #: Revel-W553L
$495.00
Contact Us to Place Order
Free Shipping
As an authorized dealer for the product you are looking at, we are bound by certain agreements with our partners in how we display, price and sell certain products.
Overview
Two 5" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofers
Can be mounted Vertical or Horizontal for L-C-R applications
1" aluminum dome swiveling tweeter with waveguide
Nominal impedance: 8 ohms
Recommended amplifier power range: 10- 150 watts
Sensitivity (2.83V/1m): 91 dB
Frequency Range -3 dB from 50Hz-25kHz; -10dB from 35-35kHz
3-position HF level control
Mounting depth: 2.9" (7.4 cm)
Weight: 6.6 lb / Shipping weight: 7.7 lb (3.5 kg)
Cutout dimensions (H x W): 14.1" x 6.4" (35.9 cm x 16.3 cm)
Includes zero-bezel magnetic grille
Grille finished dimension (H x W): 15.1" x 7.4" (38.4 cm x 18.8cm)
C-2 fastening mechanism
Compatible with wall material thickness range: 0.5" “ 2.0" (1.3 cm “ 5.0 cm
Can be mounted Vertical or Horizontal for L-C-R applications
1" aluminum dome swiveling tweeter with waveguide
Nominal impedance: 8 ohms
Recommended amplifier power range: 10- 150 watts
Sensitivity (2.83V/1m): 91 dB
Frequency Range -3 dB from 50Hz-25kHz; -10dB from 35-35kHz
3-position HF level control
Mounting depth: 2.9" (7.4 cm)
Weight: 6.6 lb / Shipping weight: 7.7 lb (3.5 kg)
Cutout dimensions (H x W): 14.1" x 6.4" (35.9 cm x 16.3 cm)
Includes zero-bezel magnetic grille
Grille finished dimension (H x W): 15.1" x 7.4" (38.4 cm x 18.8cm)
C-2 fastening mechanism
Compatible with wall material thickness range: 0.5" “ 2.0" (1.3 cm “ 5.0 cm
Specs
Item #: Revel-W553L
Manufacturer Part #: W553L
