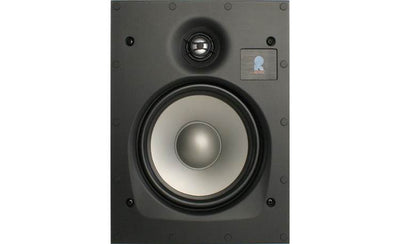

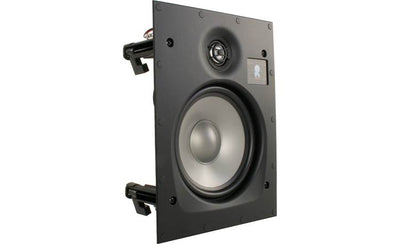

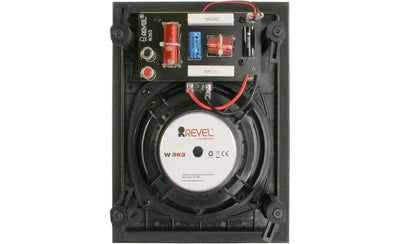

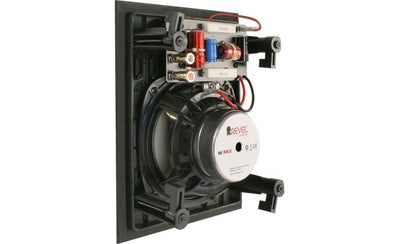

Revel W363 In-wall speaker - W363
Item #: Revel-W363
$275.00
Contact Us to Place Order
Free Shipping
As an authorized dealer for the product you are looking at, we are bound by certain agreements with our partners in how we display, price and sell certain products.
Overview
6 ½" Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer
1" aluminum dome swiveling tweeter with waveguide
Mounting depth: 3.6" (9.1 cm)
Weight: 3.8 lb (1.7 kg) / Shipping weight: 4.9 lb (2.2 kg)
Cutout dimensions (H x W): 9.8" x 7.3" (24.9 cm x 18.5 cm)

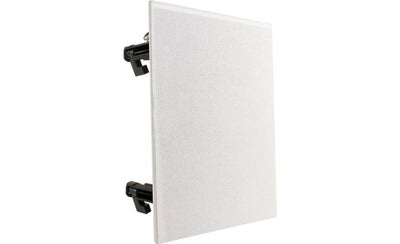

Includes zero-bezel magnetic grille
Grille finished dimension (H x W): 10.8" x 8.3" (27.3 cm x 21.1 cm)
Nominal impedance: 8 ohms
Recommended amplifier power range: 10- 120 watts
Sensitivity (2.83V/1m): 88 dB
Frequency Range -3 dB from 55Hz-22kHz; -10dB from 40-30kHz
1" aluminum dome swiveling tweeter with waveguide
Mounting depth: 3.6" (9.1 cm)
Weight: 3.8 lb (1.7 kg) / Shipping weight: 4.9 lb (2.2 kg)
Cutout dimensions (H x W): 9.8" x 7.3" (24.9 cm x 18.5 cm)
Includes zero-bezel magnetic grille
Grille finished dimension (H x W): 10.8" x 8.3" (27.3 cm x 21.1 cm)
Nominal impedance: 8 ohms
Recommended amplifier power range: 10- 120 watts
Sensitivity (2.83V/1m): 88 dB
Frequency Range -3 dB from 55Hz-22kHz; -10dB from 40-30kHz
Specs
Item #: Revel-W363
Manufacturer Part #: W363
