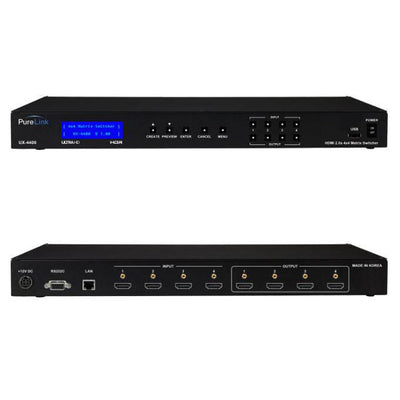

PureLink UX-4400 4X4 4K HDMI Matrix Switcher with HDCP 2.2

Item #: PureLink-UX-4400

$3,239.99

Add to Compare

Leaves Warehouse within 1-2 Business Days

Free Shipping

Customize

Overview

4X4 4K HDMI MATRIX SWITCHER WITH HDCP 2.2

The UX-4400 provides high performance distribution and management of Ultra HD (4K@60Hz) signals. The UX-4400 incorporates the latest in Ultra HD/4K transmission including HDR and HDCP 2.2 compliance.

The UX-4400 provides switching of up to four HDMI 2.0 inputs and outputs and incorporates the latest technologies available on the market including HDR and HDCP 2.2 compliance. The UX Series matrix switchers also feature a built-in web page interface allowing convenient set-up, user access, control, and operation through any web browser on devices such as laptops or tablets.

Together with advanced EDID management and added security features, the UX Series delivers a true, first-in-class Ultra HD multi-zone signal distribution solution ideal for corporate conferencing, education, and hospitality environments, to name a few.

Key Features

4x4 HDMI 2.0 matrix switching
Resolutions up to 4K@50/60 Hz (4:4:4 pixel format)
HDCP 2.2 compliant
HDR support
Built-in web interface for convenient setup & operation
Bi-directional RS232/LAN control
Locking HDMI ports

General Technical Specification of UX-4400
Model	UX-4400
INPUTS	4 HDMI
OUTPUTS	4 HDMI
RESOLUTION	Ultra HD/4K Up to 4096 x 2160 @50/60Hz (RGB 4:4:4 YCbCr 4:4:4, 4:2:2, 4:2:0)
DATA RATE	18 Gbps
OPERATING TEMPERATURE	32? ~ 117? F (0? to 47? C)
STORAGE TEMPERATURE	- 40? ~ 158? F (-40? to 70? C)
HUMIDITY	0 ~ 90% non-condensing
MTBF	95,000 hours
SUPPORTED FORMAT	HDMI 2.0
COMPLIANCE	HDCP 2.2
ACCESSORIES	DC +12V \| 5.0A \| Max 60w (power supply)
DIMENSIONS (W x D x H)	19? x 8.0? x 1.75? in. 482.6 x 203.2 x 44.45 mm
Weight	6.7 lbs (3.04 kg)

UX Series Support format
Video Resolution	Color Space and Pixel Depth	Refresh (Hz)
VGA (640 ? 480p)	RGB 4:4:4 ? 24, 30, 36 bpp	59.94/60
WVGA (800 ? 480p)	RGB 4:4:4 ? 24, 30, 36 bpp	60
SVGA (800 ? 600p)	RGB 4:4:4 ? 24, 30, 36 bpp	60
XGA (1024 ? 768p)	RGB 4:4:4 ? 24, 30, 36 bpp	60
SXGA (1280 ? 1024p)	RGB 4:4:4 ? 24, 30, 36 bpp	60
UXGA (1600 ? 1200p)	RGB 4:4:4 ? 24, 30, 36 bpp	60
WUXGA (1900 ? 1200p)	RGB 4:4:4 ? 24, 30, 36 bpp	60
480i 2x (1440 ? 480i)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	59.94/60
480i 4x (2880 ? 480i)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	59.94/60
480p (720 ? 480p)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	59.94/60
480p 2x (1440 ? 480p)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	59.94/60
480p 4x (2880 ? 480p)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	59.94/60
576i 2x (1440 ? 480i)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	50
576i 4x (2880 ? 480i)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	50
576p (720 ? 480p)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	50
576p 2x (1440 ? 480p)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	50
576p 4x (2880 ? 480p)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	50
720p (1280 ? 720p)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	23.98/24/25/29.97/30/50/59.94/60
1080i (1920 ? 1080i)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	23.98/24/25/29.97/30/50/59.94/60
1080p (1920 ? 1080p)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	23.98/24/25/29.97/30/50/59.94/ 60/100/119.88/120
1080p (1920 ? 1080p)	RGB 4:4:4 ? 24, 30, 36 bpp YCbCr 4:4:4 ? 24, 30, 36 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	23.98/24/25/29.97/30/50/59.94/ 60/100/119.88/120
4K ? 2K (3840 ? 2160p)	RGB 4:4:4 ? 24 bpp YCbCr 4:4:4 ? 24 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	23.98/24/25/29.97/30/50/59.94/60
4K ? 2K (4096 ? 2160p)	RGB 4:4:4 ? 24 bpp YCbCr 4:4:4 ? 24 bpp YCbCr 4:2:2 ? 16, 20, 24 bpp	23.98/24/25/29.97/30/50/59.94/60
