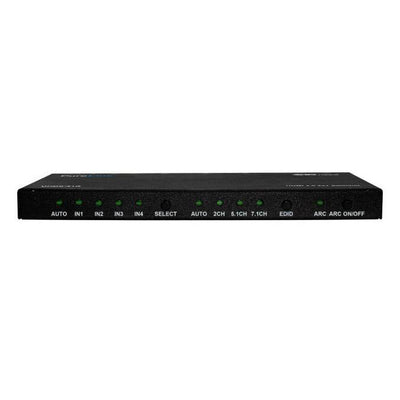

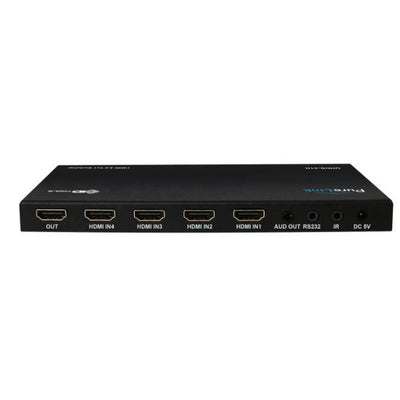

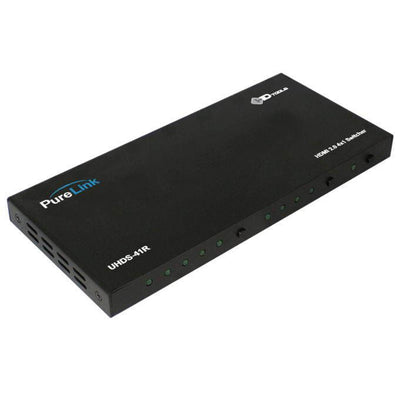

PureLink UHDS-41R 4X1 HDMI 2.0 Switcher - Ultra HD
Item #: PureLink-UHDS-41R
$239.99
Leaves Warehouse within 1-2 Business Days
Free Shipping
4x1 HDMI 2.0 Switcher ? Ultra HD
The UHDS-41R provides switching of up to four (4) Ultra HD/4K sources to a single Ultra HD/4K display with HDMI 2.0 and HDCP 2.2 support.
The HDTools? UHDS-41R provides switching of up to four (4) Ultra HD/4K sources to a single Ultra HD/4K display. The UHDS-41R combines the latest technologies, including HDMI 2.0 and HDCP 2.2 support, with user-friendly configuration and operation via RS-232, IR, or front panel control to deliver a simple and effective multi-input A/V switching solution.
Key Features:
- 4x1 Ultra HD (4K @50/60Hz) digital A/V switcher
- HDMI 2.0 and HDCP 2.2 compliance
- Auto-switching
- Automatic input switching by signal detection - ARC [ Audio Return Channel ]
-Allows ARC-enabled TVs to transmit audio back to an AV receiver - Easy operation via manual toggle buttons, IR remote, and RS-232C
- Full 3D compatibility
- Auto-EDID management
- Supports Dolby TrueHD, Dolby Digital Plus and DTS-HD Master audio, LPCM
- DVI and Displayport compatible (with adapters)
|
Technical Specification of UHDS-41R |
|
| MODEL | UHDS-41R |
| INPUT SIGNAL | HDMI single link, 4 ports |
| OUTPUT SIGNAL | HDMI single link |
| BANDWIDTH | 18 Gbps |
| SUPPORTING DISPLAY RESOLUTIONS | PC: VGA ~ WUXGA (up to 1920 x 1200 @60Hz) HDTV: 480i ~ 1080p, Up to Ultra HD 4K 4096 x 2160 @50/60Hz (RGB 4:4:4 YCbCr 4:4:4, 4:2:2, 4:2:0) |
| CONNECTOR TYPE |
4 x HDMI inputs |
| HDCP SUPPORT | HDCP 2.2 |
|
ESD PROTECTION HUMAN BODY MODEL |
? 8kV (air-gap discharge) |
| CONFORMATIONS |
HDMI version 2.0 |
| POWER RATING | DC +5V , 1A |
| POWER CONSUMPTION | Max 2.5W |
| DIMENSIONS (WxDxH) | 7.1?? x 3.3??x 0.5?/ 180 x 85 x 11.6 (mm) |
| WEIGHT | 0.6 Lbs (0.3Kg) |
Specs
Item #: PureLink-UHDS-41R
Manufacturer Part #: UHDS-41R
