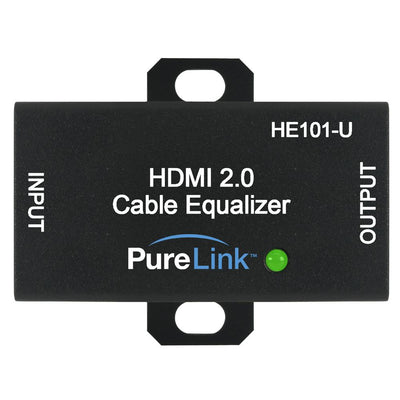

The HE101-U Signal Equalizer provides a convenient installation solution for extending and amplifying high-bandwidth HDMI 2.0 signals using standard HDMI cables in a home or office environment.

The HE101-U can be attached between long cable runs - up to 10 meters (5 meters each from the input and output source) - supporting full 4K@60Hz (4:4:4) resolutions. Using proprietary signal regeneration technology, the HE101-U automatically provides the necessary active equalization to ensure optimal image quality over longer distances. Together with HDCP 2.2 compliance, as well as the ability to draw power directlty from the HDMI source, the HE101-U combines easy integration with seamless and reliable performance.

• Supports cable lengths up to 33 ft. (10 m) at 4K/60 (4:4:4) resolutions, up to 66 ft. (20 m) at 4K/60 (4:2:0) resolutions, and up to 132 ft. (40 m) at resolutions up to 1080p
• High bandwith support - up to 18 Gbps
• HDCP 2.2 compliance
• Proprietary signal re-generation & repeating technology enables maximum transmission distance
• Draws power directly from the HDMI source(Micro-USB power injection optional)
• Seamless, easy integration
