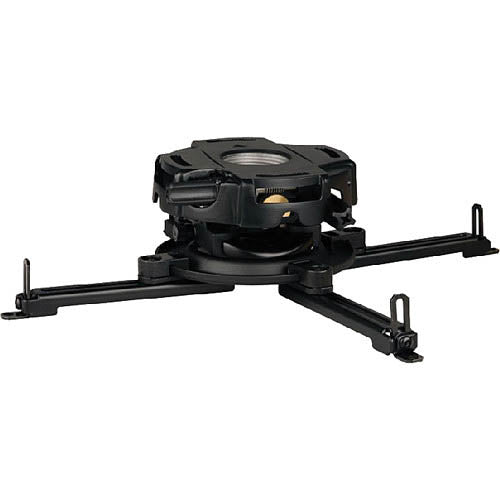

Peerless PRG-UNV Precision Projector Mount with Spider Universal Adaptor Plate
Item #: Peerless-PRG-UNV
$139.95
Out of Stock
Free Shipping
Overview
Peerless-AV s PRG Precision Gear Projector Mount is simplifying the way image alignment is done.
The patent-pending precision gear design allows exact tilt and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or use the tool-less option by extending the knobs to adjust by hand.
Just set the precision gear to the desired position to secure it in place ‚“ it will hold its position even during projector maintenance.
With Peerless-AV PRG Precision Gear Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles.
All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless-AV projector mount, please refer to the Recommended Accessories.
- For Multimedia Projectors up to 50 lb (22 kg)
- Patent-pending precision gears provides exact projector image alignment
- Two adjustment knobs control projector image alignment
- Pre-assembled design reduces installation time
- Horizontal wrench access slots make flush mounting installations fast and easy
- Cable management allows cables to be routed through projector mount out of sight
- U shaped pitch bracket allows for hassle free cable routing
- Quick-release mechanism to easily service projector
- Spider‚ ® Universal Adapter Plate extends up to 17.63" (448 mm) to fit most projector models
- Pre-installed security screws provide optional tilt and roll lock to prevent tampering with adjustment knobs
- Specifications: Tilt: ‚ ±20‚ °, Roll: ‚ ±10‚ °, Swivel: 360‚ ° when mounted on extension column ‚ ±15‚ ° when flush mounted on ceilings
| Mounting Pattern: | 448mm (17.63") |
| Weight Capacity: | 50lb (22kg) |
| Color: | Black |
| Finish: | Powder Coat |
| Security Features: | Security Hardware |
| Tilt: | +20 / -20 |
| Swivel Yaw: | 360 |
| Roll: | +10 / -10 |
| Distance from Ceiling: | 3.81 - 4.81" (97 - 122mm) |
| Product Dimensions: | 8.5 - 17.63 X 3.81 - 4.81 X 8.5 - 17.63" (216 - 448 X 97 - 122 X 216 - 448mm) |
| Ship Dimensions: | 6.375 x 3.25 x 13.5625" (161.9 x 82.6 x 344.5mm) |
| Shipping Weight: | 3.78lb (1.5kg) |
| UPC Code: | 735029249887 |
Specs
Item #: Peerless-PRG-UNV
Manufacturer Part #:
