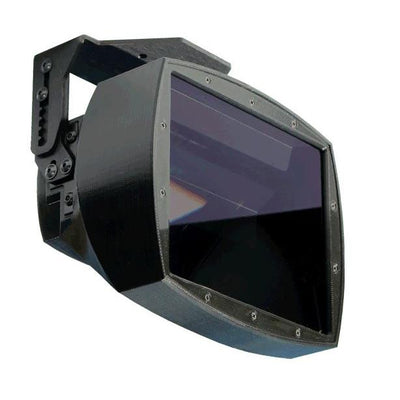

Panamorph Paladin CDR+XM2 Anamorphic Lens with Attachment System

LENS MODEL

CDR+XM2

DESCRIPTION

Our largest models for native 16:9 (CDR) projectors includes the XM2 attachment system. These lenses are often chosen because they are large enough to work with many future home theater projectors*

CINEMA FORMAT PERFORMANCE ENHANCEMENT

Supports 2+ million (CDR) additional pixels vs. letterbox 3840 projection for enhanced detail and 30% (CDR) net higher brightness

16:9 CONTENT COMPATIBILITY

Supports multiple projector modes for displaying 16:9 content including classic and full cinema modes without moving the lens

ATTACHMENT

Included XM2 plate system installed either above projector (ceiling mount) or below projector (shelf mount)

MINIMUM THROW RATIO

1.4:1 (throw distance divided by 2.4:1 screen width).

RECOMMENDED SCREEN FORMAT

Flat, 2.4:1 format with at least 2.0” border (lens can adjust for older 2.35:1 screens)

RECOMMENDED PROJECTOR POSITION

Horizontally centered on screen +/- 6″. Vertically positioned from 15% below to 30% above top of screen (ideally at screen top).

DIMENSIONS AND WEIGHT (w/o bracket)

6.5″ Wx5.7″Hx4.13-4.63″D (165x145x105-117mm), 4 lbs
